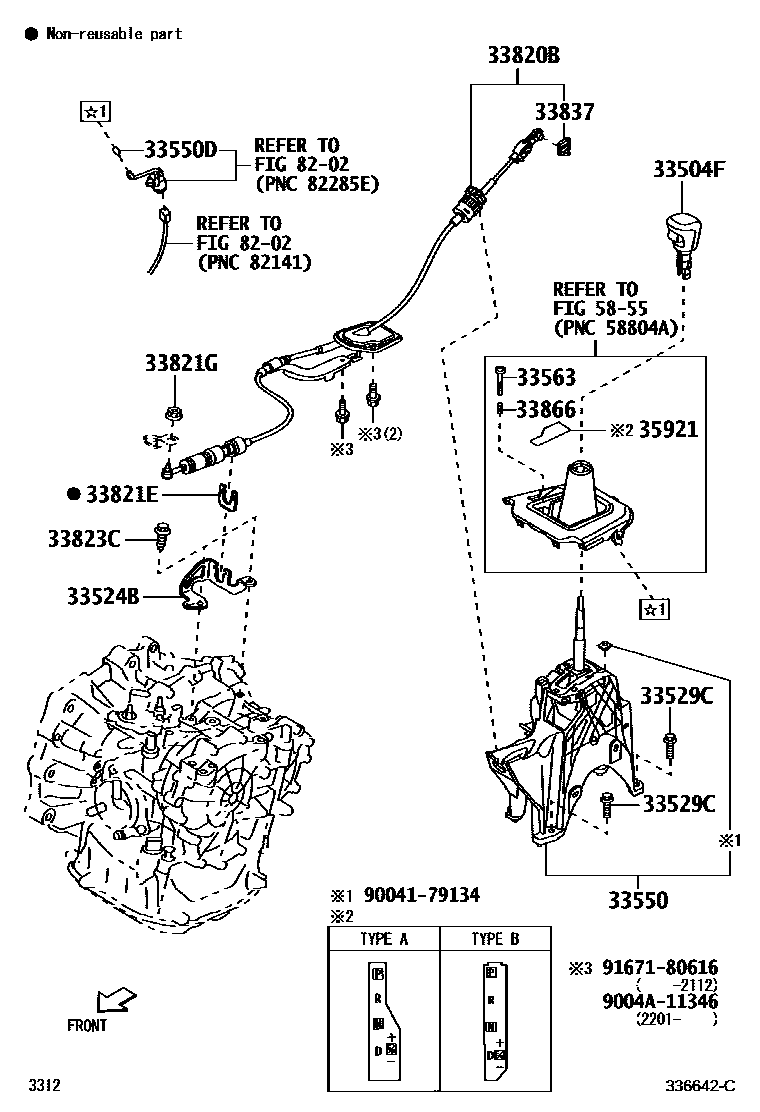

Toyota AVANZA/VELOZ — SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-BZ281-C1iW10#..CVT..(D,G,M)202111-202301

BLACK,TRIM2#

sub33504-BZ282

main33504-BZ282-C1iW100,101..CVT..(D,G,M)202302

BLACK,TRIM2#

main33504-BZ291-C1iW101..CVT..(S,V)202111-202211

SILVER,TRIM2#

sub33504-BZ292

sub33504-BZ293

main33504-BZ292-C1iW101..CVT..(S,V)202212-202301

SILVER,TRIM2#

sub33504-BZ293

main33504-BZ293-C1iW101..CVT..(S,V)202302-202304

SILVER,TRIM2#

sub33504-BZ294

main33504-BZ294-C1iW101..CVT..(S,V)202304

SILVER,TRIM2#

main33504-BZ300-C1iW100..5F;W101..5F..(G,M)..(GEN,IDN,MXC,VN)202111-202212

BLACK,TRIM2#

main33504-BZ310-C2iW101..5F..S202111

BLACK,TRIM2#

33524BBRACKET, CONTROL CABLE

main33524-BZ040iW100,101..CVT202111

33529CBOLT, SHIFT LEVER

main9004A-11274iW101..5F..PHL202111-202212

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ580-C0iW10#..CVT202111-202203

BLACK,TRIM2#

sub33550-BZ581

main33550-BZ581-C0iW100,101..CVT202204

BLACK,TRIM2#

main33550-BZ600-C0iW10#..5F202111-202204

BLACK,TRIM2#

main33550-BZ601-C0iW100..5F;W101..5F..(GEN,IDN,MXC,VN)202204-202212

BLACK,TRIM2#

33550DBULB, POSITION INDICATOR LAMP

main35955-BZ030iW100,101..CVT202111

33563BUTTON, SHIFT LOCK RELEASE

main33563-BZ040-C0iW100,101..CVT202111

BLACK,TRIM2#

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ440iW100,101..CVT202111

main33820-BZ450iW10#..5F202111-202204

main33820-BZ451iW101..5F..PHL202204-202212

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-B1010iW101..5F..PHL¥220202111-202212

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-06274iW100,101..CVT¥70202111

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ090iW101..5F..PHL202111-202212

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90105-T0120iW101..5F..PHL202111-202212

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B2010iW100,101..CVT¥170202111

main90044-68076iW101..5F..PHL¥170202111-202212

33866SPRING, SHIFT LOCK RELEASE

main33866-BZ010iW100,101..CVT202111

35921PLATE, CONTROL POSITION INDICATOR

main35921-BZ100iW100,101..RHD..CVT..(D,M)202111

TYPE A

main35921-BZ110iW101..CVT..(S,V)202111

TYPE B

main35921-BZ120iW100,101..LHD..CVT..(G,M)202201

TYPE A

5855

8202

9004179134

main90041-79134¥300

9004A11346

main9004A-11346

9167180616

main91671-80616¥60

19 parts on this diagram · 3 diagrams in section
