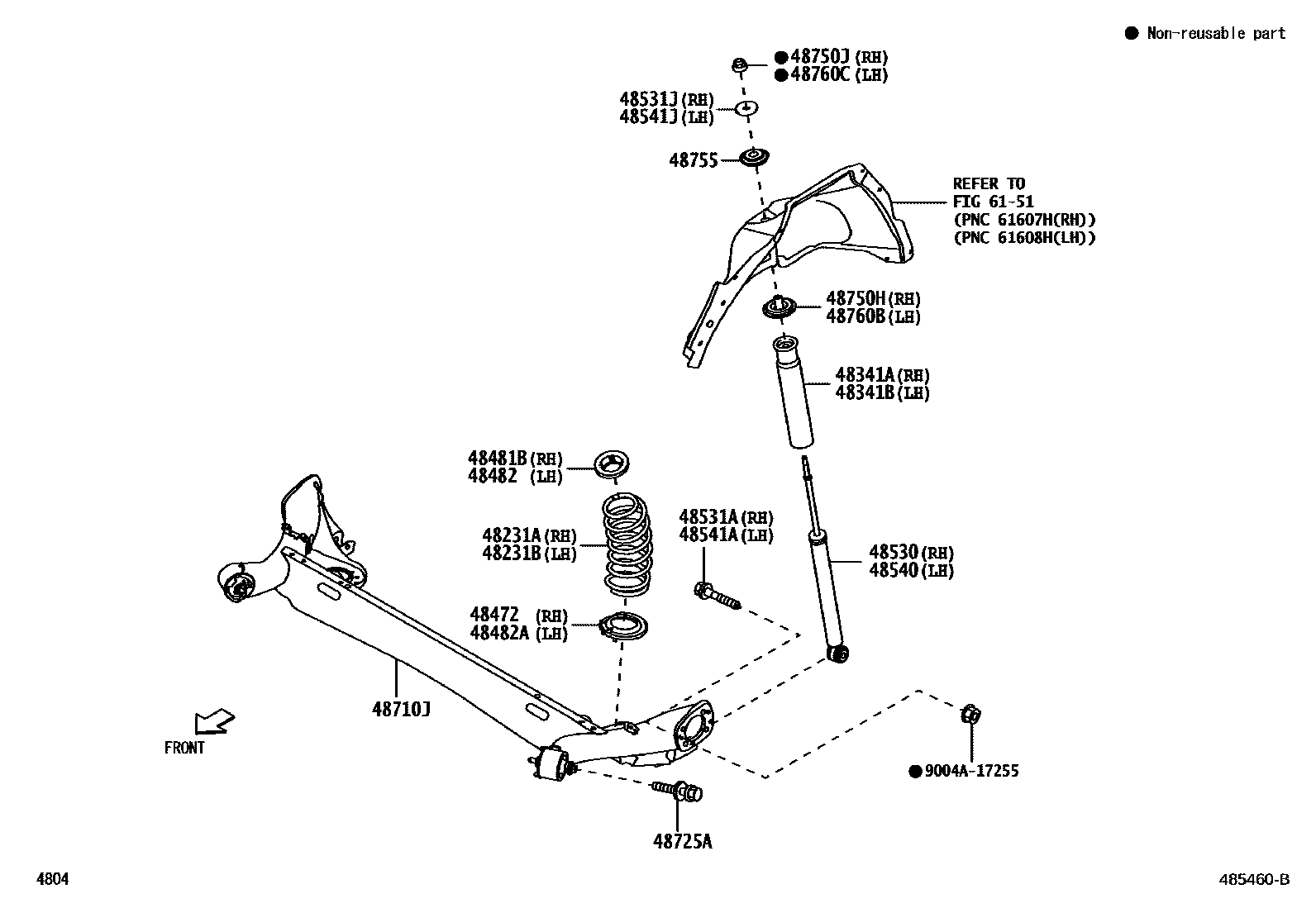

Toyota AVANZA/VELOZ — REAR SPRING & SHOCK ABSORBER

48231ASPRING, COIL, REAR RH

main48231-BZ880iW100,101202111

48231BSPRING, COIL, REAR LH

main48231-BZ880iW100,101202111

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-BZ200iW100,101202111

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-BZ200iW100,101202111

48472SEAT, REAR SPRING, LOWER

main48482-BZ190iW100,101202111

RH

48481BSEAT, REAR SPRING, UPPER RH

main48481-BZ120iW100,101202111

48482SEAT, REAR SPRING, UPPER LH

main48481-BZ120iW100,101202111

48482ASEAT, REAR SPRING, LOWER

main48482-BZ190iW100,101202111

LH

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-BZB10iW100,101..D,G,M,S202111

MARK 48531-BZB10

main48531-BZB20iW101..V202111

MARK 48531-BZB20

48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)

main9004A-10201iW100,101¥320202111

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90042-01758iW100;W101..CVT..PHL;W101..GCC,GEN,IDN,MXC,THAI,VN¥230202111-202310

main9004A-20076iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202311

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-BZB10iW100,101..D,G,M,S202111

MARK 48531-BZB10

main48531-BZB20iW101..V202111

MARK 48531-BZB20

48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)

main9004A-10201iW100,101¥320202111

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90042-01758iW100;W101..CVT..PHL;W101..GCC,GEN,IDN,MXC,THAI,VN¥230202111-202310

main9004A-20076iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202311

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-BZ460iW100,101202111

48725ABOLT(FOR LOWER CONTROL ARM)

main9004A-11377iW100,101202111

M12,L=129

main9004A-11379iW101..S,V202111

M12,L=117

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-BZ050iW100,101202111

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94188-01001iW100,101¥110202111

48755SUPPORT, REAR SUSPENSION

main48755-BZ050iW100,101202111

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-BZ050iW100,101202111

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94188-01001iW100,101¥110202111

6151

9004A17255

main9004A-17255

23 parts on this diagram · 1 diagram in section
