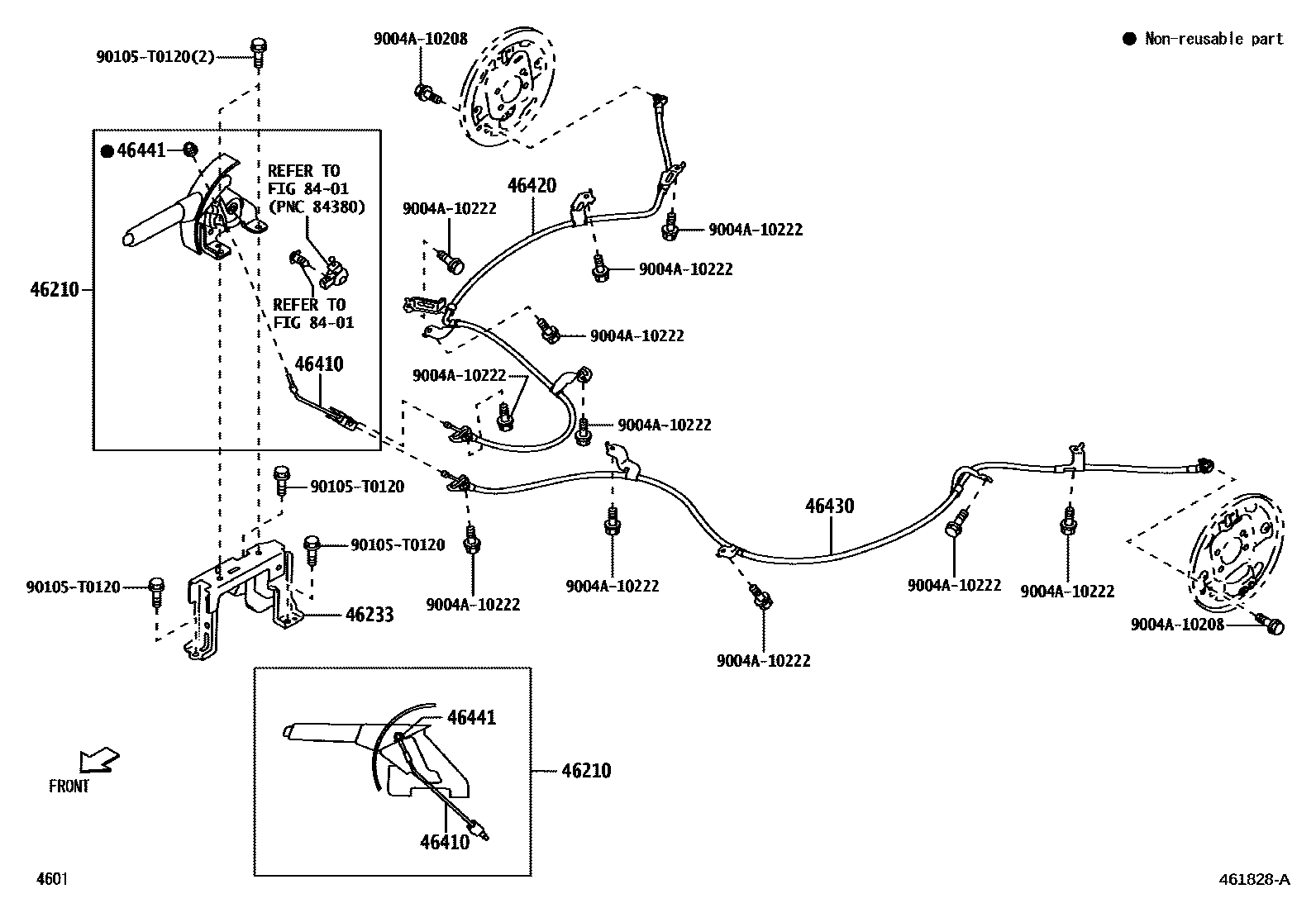

Toyota AVANZA/VELOZ — PARKING BRAKE & CABLE

0001 1HAND PARKING BRAKE 0002 1EPB

46210LEVER ASSY, PARKING BRAKE

main46210-BZ240-C0iW100;W101..M..VN;W101..CVT..M..PHL202111-202309

BLACK,TRIM2#

main46210-BZ250-C0iW101..(G,M)..(GEN,IDN,MXC)202111

BLACK,TRIM2#

46233SUPPORT, PARKING BRAKE CENTER

main46233-BZ070iW101..5F..PHL202111-202309

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-BZ130iW101..5F..PHL202111-202309

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ330iW101..MXC202201

main46420-BZ370iW101..5F..PHL202111-202309

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ330iW101..MXC202201

main46430-BZ370iW101..5F..PHL202111-202309

46441NUT, WIRE ADJUSTING, NO.1

main90041-78060iW101..5F..PHL¥170202111-202309

8401

9004A10208

main9004A-10208¥110

9004A10222

main9004A-10222

90105T0120

main90105-T0120

10 parts on this diagram · 2 diagrams in section
