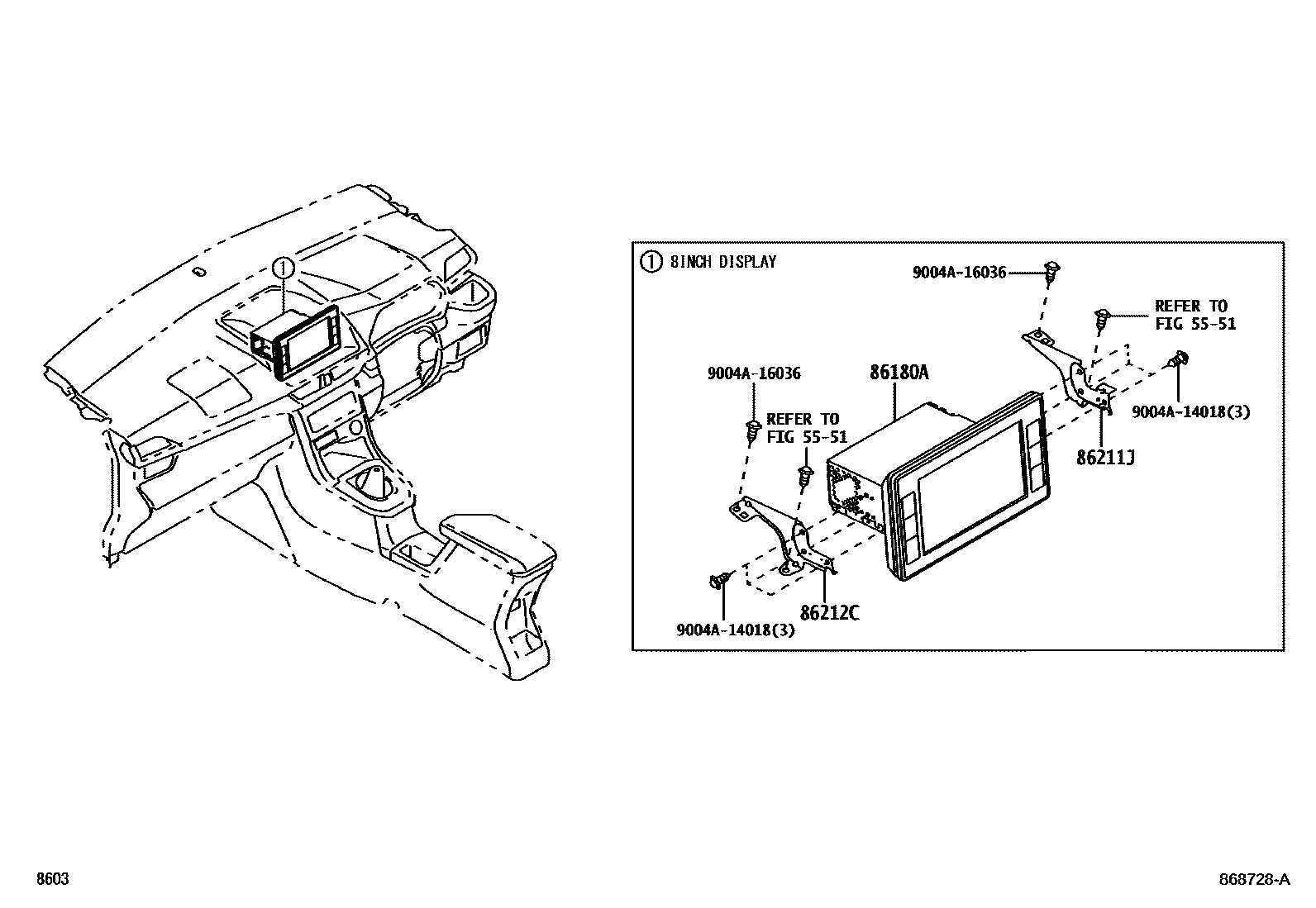

Toyota AVANZA/VELOZ — NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5551

86180ATUNER ASSY, STEREO COMPONENT

main86180-BZ880-C0iW101..(M,S)..(GEN,THAI)202201-202209

BLACK

sub86180-BZ881

main86180-BZA20-C0iW101..V..PHL202201

BLACK

main86180-BZA20-C0iW101..V..PHL202201

SMART ASSIST (OVERSEAS)&9INCH DISPLAY AUDIO&BACK MONITOR(W/PANORAMA VIEW),BLACK

main86180-BZA90-C0iW100..GEN202201-202209

E-8INCH DISPLAY AUDIO(W/USB),BLACK

sub86180-BZA91

main86180-BZA90-C0iW101..CVT..G..GEN;W10#..(M,S,V)..PHL202201-202209

BLACK

sub86180-BZA91

main86180-BZB20-C0iW101..MXC202201-202207

PERU + BOLIVIA&AUDIO (RADIO,BRKT)LESS W/HOLE 7INCH,BLACK,W/PART NUMBER LABEL

sub86180-BZB21

main86180-BZB20-C0iW101..MXC202201-202207

BLACK,W/PART NUMBER LABEL

sub86180-BZB21

main86180-BZB21-C0iW101..MXC202207-202209

-,W/PART NUMBER LABEL

sub86180-BZB22

main86180-BZB21-C0iW101..MXC202207-202209

PERU + BOLIVIA&AUDIO (RADIO,BRKT)LESS W/HOLE 7INCH,-,W/PART NUMBER LABEL

sub86180-BZB22

main86180-BZB30-C0iW101..CVT..G..GEN202201-202209

BLACK

sub86180-BZB31

main86180-BZB30-C0iW101..5F..GEN202201-202209

COSTA RICA,BLACK

sub86180-BZB31

main86180-BZB30-C0iW101..5F..GEN202201-202209

CENTRAL & SOUTH AMERICA + ASIA,BLACK

sub86180-BZB31

main86180-BZE00-C0iW101..(M,S)..(GEN,THAI)202210-202402

BRUNEI&E-8INCH DISPLAY AUDIO(W/USB),BLACK

sub86180-BZE01

main86180-BZE00-C0iW101..(M,S)..(GEN,THAI)202210-202402

BLACK

sub86180-BZE01

main86180-BZE01-C0iW101..(M,S)..(GEN,THAI)202403

BLACK

main86180-BZE01-C0iW101..(M,S)..(GEN,THAI)202403

BRUNEI&E-8INCH DISPLAY AUDIO(W/USB),BLACK

main86180-BZE20-C0iW10#..(M,S)..(PHL,VN);W101..CVT..(G,V)..(GEN,PHL)202210-202402

BLACK

sub86180-BZE21

main86180-BZE20-C0iW10#..(M,S)..(PHL,VN);W101..CVT..(G,V)..(GEN,PHL)202210-202402

E-8INCH DISPLAY AUDIO(W/USB),BLACK

sub86180-BZE21

main86180-BZE21-C0iW100,101..(M,S)..(PHL,VN);W101..CVT..(G,V)..(GEN,PHL)202403

E-8INCH DISPLAY AUDIO(W/USB),BLACK

main86180-BZE21-C0iW100,101..(M,S)..(PHL,VN);W101..CVT..(G,V)..(GEN,PHL)202403

BLACK

main86180-BZE21-C0iW100,101..(M,S)..(PHL,VN);W101..CVT..(G,V)..(GEN,PHL)202403

AUDIO(RADIO,BRKT,UPR CVR)LESS,BLACK

main86180-BZE30-C0iW101..GCC202212-202402

BLACK

sub86180-BZE31

main86180-BZE31-C0iW101..GCC202403

BLACK

main86180-BZE40-C0iW101..MXC202210-202402

PERU + BOLIVIA&AUDIO (RADIO,BRKT)LESS W/HOLE 7INCH,BLACK,W/PART NUMBER LABEL

sub86180-BZE41

main86180-BZE40-C0iW101..MXC202210-202402

BLACK,W/PART NUMBER LABEL

sub86180-BZE41

main86180-BZE41-C0iW101..MXC202403

BLACK,W/PART NUMBER LABEL

main86180-BZE41-C0iW101..MXC202403

PERU + BOLIVIA&AUDIO (RADIO,BRKT)LESS W/HOLE 7INCH,BLACK,W/PART NUMBER LABEL

main86180-BZE50-C0iW101..CVT..G..GEN202210-202402

COSTA RICA,BLACK

sub86180-BZE51

main86180-BZE50-C0iW101..5F..GEN202210-202402

BLACK

sub86180-BZE51

main86180-BZE50-C0iW101..CVT..G..GEN202210-202402

CENTRAL & SOUTH AMERICA + ASIA,BLACK

sub86180-BZE51

main86180-BZE51-C0iW101..5F..GEN202403

COSTA RICA,BLACK

main86180-BZE51-C0iW101..5F..GEN202403

BLACK

main86180-BZE51-C0iW101..5F..GEN202403

CENTRAL & SOUTH AMERICA + ASIA,BLACK

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-BZ390iW101..V..PHL202201

SMART ASSIST (OVERSEAS)

main86211-BZ400iW101..MXC202201

PERU + BOLIVIA

main86211-BZ400iW101..MXC202201

E-8INCH DISPLAY AUDIO(W/USB)

main86211-BZ400iW101..5F..PHL202201-202309

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-BZ390iW101..V..(THAI,VN)202201

SMART ASSIST (OVERSEAS)

main86212-BZ400iW101..5F..PHL202201-202309

main86212-BZ400iW100..M;W101..V..GCC;W101..CVT..PHL;W101..(G,M,S)..(GCC,GEN,MXC,THAI,VN)202201

PERU + BOLIVIA

main86212-BZ400iW100..M;W101..V..GCC;W101..CVT..PHL;W101..(G,M,S)..(GCC,GEN,MXC,THAI,VN)202201

E-8INCH DISPLAY AUDIO(W/USB)

9004A14018

main9004A-14018

9004A16036

main9004A-16036¥110

6 parts on this diagram · 2 diagrams in section
