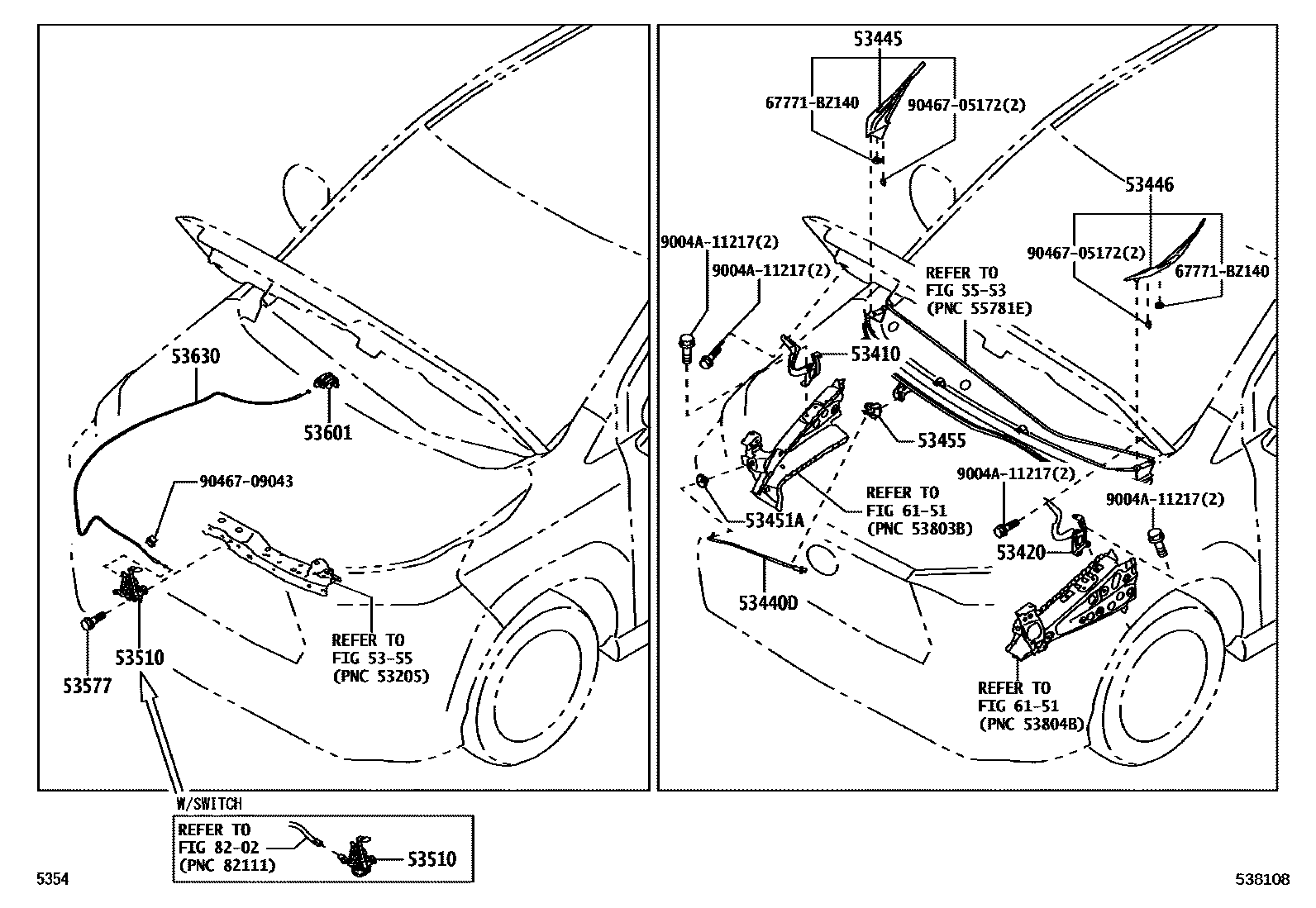

Toyota AVANZA/VELOZ — HOOD LOCK & HINGE

0001 1RHD 0002 1LHD

53410HINGE ASSY, HOOD, RH

main53401-BZ090iW100,101202111

53420HINGE ASSY, HOOD, LH

main53402-BZ090iW100,101202111

53440DSUPPORT ASSY, HOOD

main53440-BZ130iW10#202111-202307

main53440-BZ131iW100,101202308

53445COVER, HOOD HINGE, RH

main53445-BZ100iW100,101202111

53446COVER, HOOD HINGE, LH

main53446-BZ100iW100,101202111

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90044-80679iW100,101¥110202111

53455CLAMP, HOOD SUPPORT ROD

main53455-BZ140iW100,101202111

53510LOCK ASSY, HOOD

main53510-BZ370iW101..RHD..M202111

main53510-BZ380iW100..IDN202111

main53510-BZ390iW100..GEN;W100,101..LHD..(G,M)202201

main53510-BZ400iW100..D..PHL202201

PERU + BOLIVIA

main53510-BZ430iW101..RHD..(S,V)202111

main53510-BZ440iW101..LHD..(S,V)202201

5355

53577BOLT, HOOD LOCK

main90041-05589iW100,101¥110202111-202410

M6,L=12

main9004A-10344iW100;W101..CVT..PHL;W101..GCC,GEN,IDN,MXC,THAI,VN202411

M6,L=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-BZ030-C0iW100,101202111

BLACK,TRIM2#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-BZ320iW100,101..RHD202111

main53630-BZ360iW100,101..LHD..(GCC,GEN,MXC,PHL)202201

main53630-BZ530iW101..VN202212

5553

6151

8202

67771BZ140WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-BZ140

9004A11217

main9004A-11217

9046705172

main90467-05172¥60

9046709043

main90467-09043¥160

19 parts on this diagram · 2 diagrams in section
