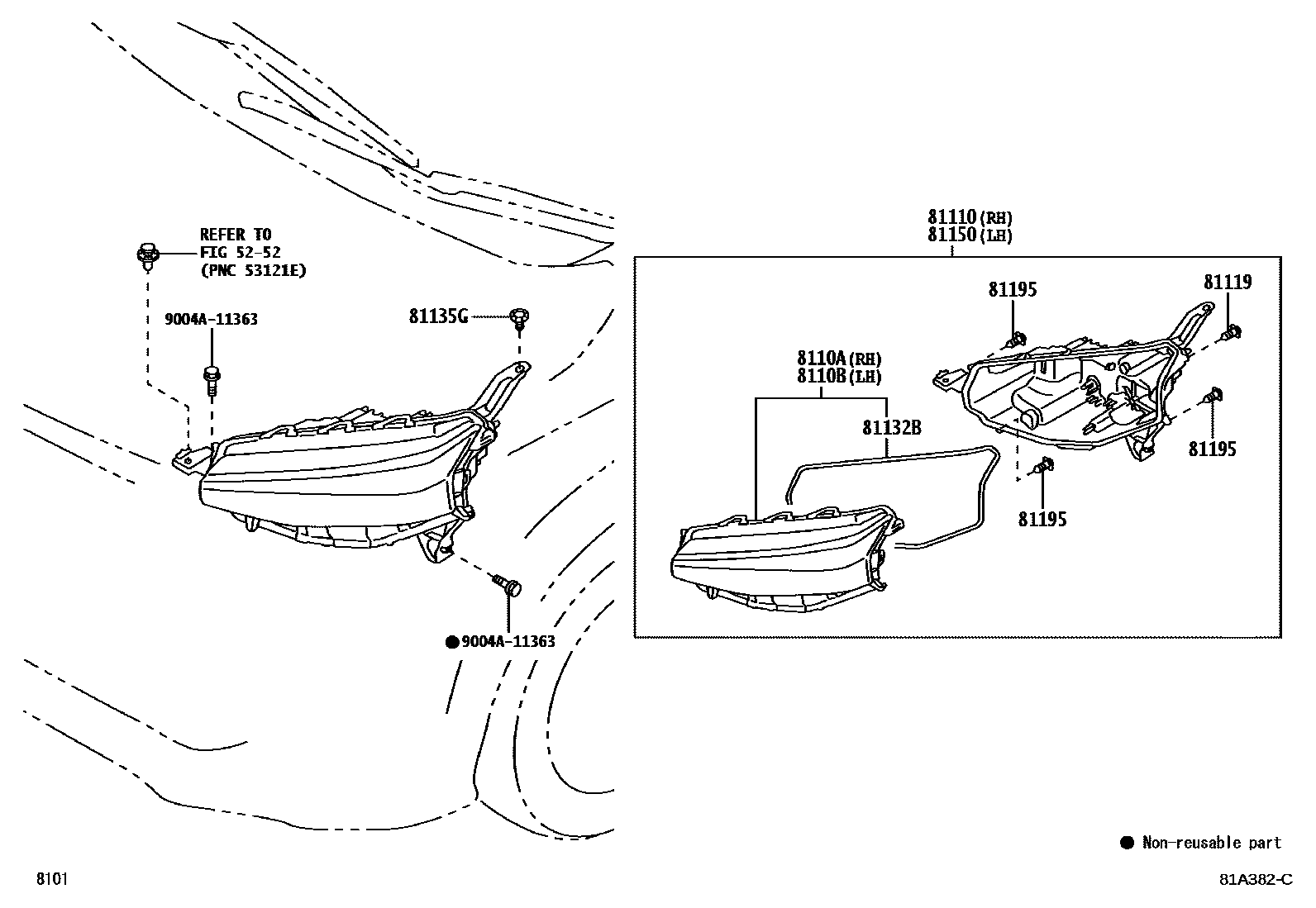

Toyota AVANZA/VELOZ — HEADLAMP

0001 1 0002 1

5252

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-BZ070iW101..S,V202111

main8110A-BZ090iW100,101..D,G,M202111

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-BZ070iW101..S,V202111

main8110B-BZ090iW100,101..D,G,M202111

81110HEADLAMP ASSY, RH

main81110-BZ880iW100,101..RHD..(D,M)202111

main81110-BZA10iW100..LHD;W101..CVT..M..PHL;W101..LHD..(G,M)..(GEN,MXC,VN)202201-202309

81119SCREW, HEADLAMP

main81195-B2120iW100,101¥120202111

81132BGASKET, HEADLAMP LENS

main81132-B2010iW100,101¥2,580202111

81135GCLIP

main90044-68378iW100,101¥110202111

81150HEADLAMP ASSY, LH

main81150-BZ880iW100,101..RHD..(D,M)202111

main81150-BZA10iW101..5F..PHL202201-202309

81195SCREW, HEADLAMP

main81195-B2020iW100,101..D,G,M¥120202111

9004A11363

main9004A-11363¥60

10 parts on this diagram · 2 diagrams in section
