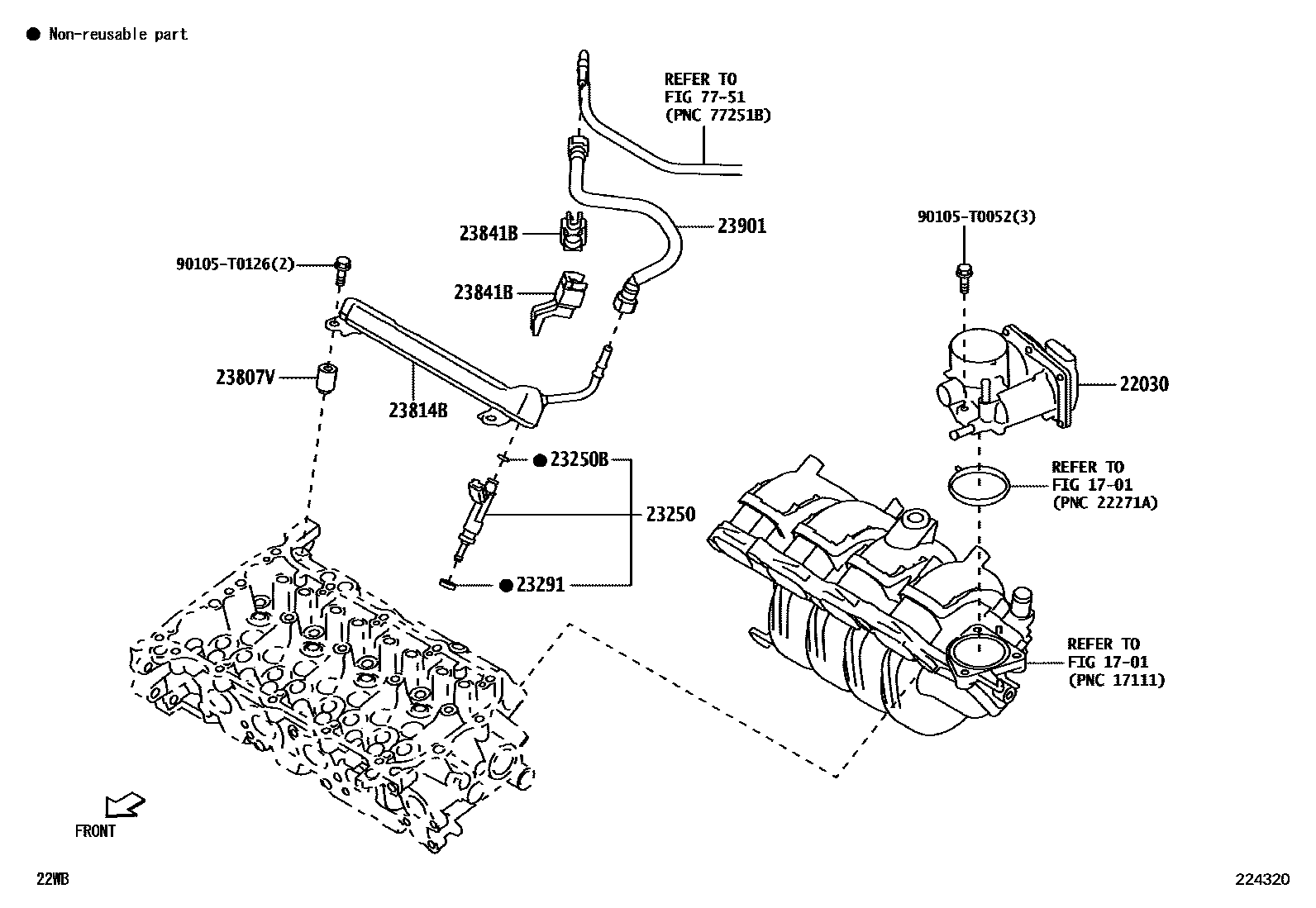

Toyota AVANZA/VELOZ — FUEL INJECTION SYSTEM

1701

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NRVE..W101..5F..PHL;1NRVE,2NRVE..W100,101..GCC,GEN,MXC,VN202201

main22030-0Y140i1NRVE..W100..IDN,PHL;2NRVE..W101..IDN,THAI;2NRVE..W101..CVT..PHL202111

23250INJECTOR ASSY, FUEL

main23209-09340i1NRVE,2NRVE..W100,101..GCC,GEN,IDN,MXC,PHL,VN202111

main23209-09450i2NRVE..W101..THAI202201

23250BRING, O(FOR FUEL INJECTOR)

main90301-07042i2NRVE..W101..CVT..G..GEN¥140202201

COSTA RICA

main90301-07042i2NRVE..W101..5F..(MXC,VN);1NRVE,2NRVE..W100,101..GCC,GEN,IDN,PHL,THAI¥140202111

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i1NRVE,2NRVE..W100,101¥230202111

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-47040i1NRVE,2NRVE..W100,101202111

23814BPIPE, FUEL DELIVERY

main23814-0Y010i1NRVE,2NRVE..W100,101202111

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-BZ020i1NRVE,2NRVE..W100,101202111

23901TUBE SUB-ASSY, FUEL

main23901-BZ160i1NRVE,2NRVE..W100,101202111

7751

90105T0052

main90105-T0052

90105T0126

main90105-T0126

12 parts on this diagram · 1 diagram in section
