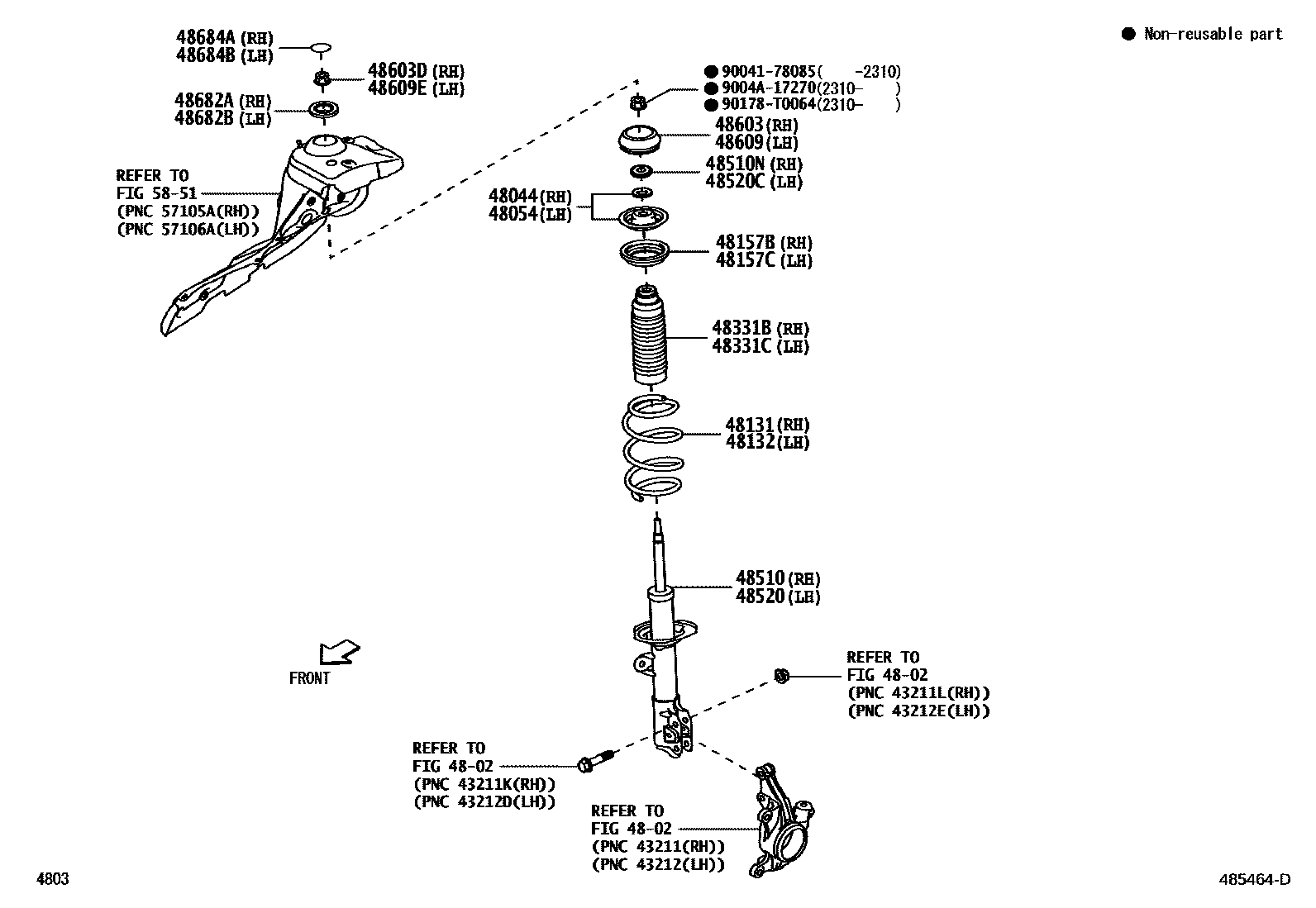

Toyota AVANZA/VELOZ — FRONT SPRING & SHOCK ABSORBER

0001 1SHOCK ABSORBER 0002 1STABILIZER

4802

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-BZ130iW100,101202111

48054SEAT SUB-ASSY, FRONT SPRING, NO.2

main48044-BZ130iW100,101202111

48131SPRING, FRONT COIL, RH

main48131-BZB80iW100,101..5F202111

main48131-BZB90iW100,101..CVT202111

48132SPRING, FRONT COIL, LH

main48131-BZB80iW100,101..5F202111

main48131-BZB90iW100,101..CVT202111

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-BZ080iW100,101202111

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-BZ080iW100,101202111

48331BBUMPER, FRONT SPRING, RH

main48331-BZ220iW100,101202111

48331CBUMPER, FRONT SPRING, LH

main48331-BZ220iW100,101202111

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-BZE50iW100,101..D,G,M,S202111

MARK 48510-BZE50

main48510-BZE60iW101..V202111

MARK 48510-BZE60

48510NBUSH(FOR FRONT SHOCK ABSORBER RH)

main90043-89155iW100,101¥370202111

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-BZA80iW100,101..D,G,M,S202111

MARK 48520-BZA80

main48520-BZA90iW101..V202111

MARK 48520-BZA90

48520CBUSH(FOR FRONT SHOCK ABSORBER LH)

main90043-89155iW100,101¥370202111

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-BZ170iW100,101202111

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90041-78085iW10#¥190202111-202310

main9004A-17270iW100,101202310

main90178-T0064iW100,101202310

##

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-BZ170iW100,101202111

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90041-78085iW10#¥190202111-202310

main9004A-17270iW100,101202310

main90178-T0064iW100,101202310

##

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-BZ010iW100,101202111

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-BZ010iW100,101202111

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-BZ090iW100,101202111

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-BZ090iW100,101202111

5851

9004178085

main90041-78085¥190

9004A17270

main9004A-17270

90178T0064

main90178-T0064

25 parts on this diagram · 2 diagrams in section
