Toyota AVANZA/VELOZ — ELECTRONIC FUEL INJECTION SYSTEM

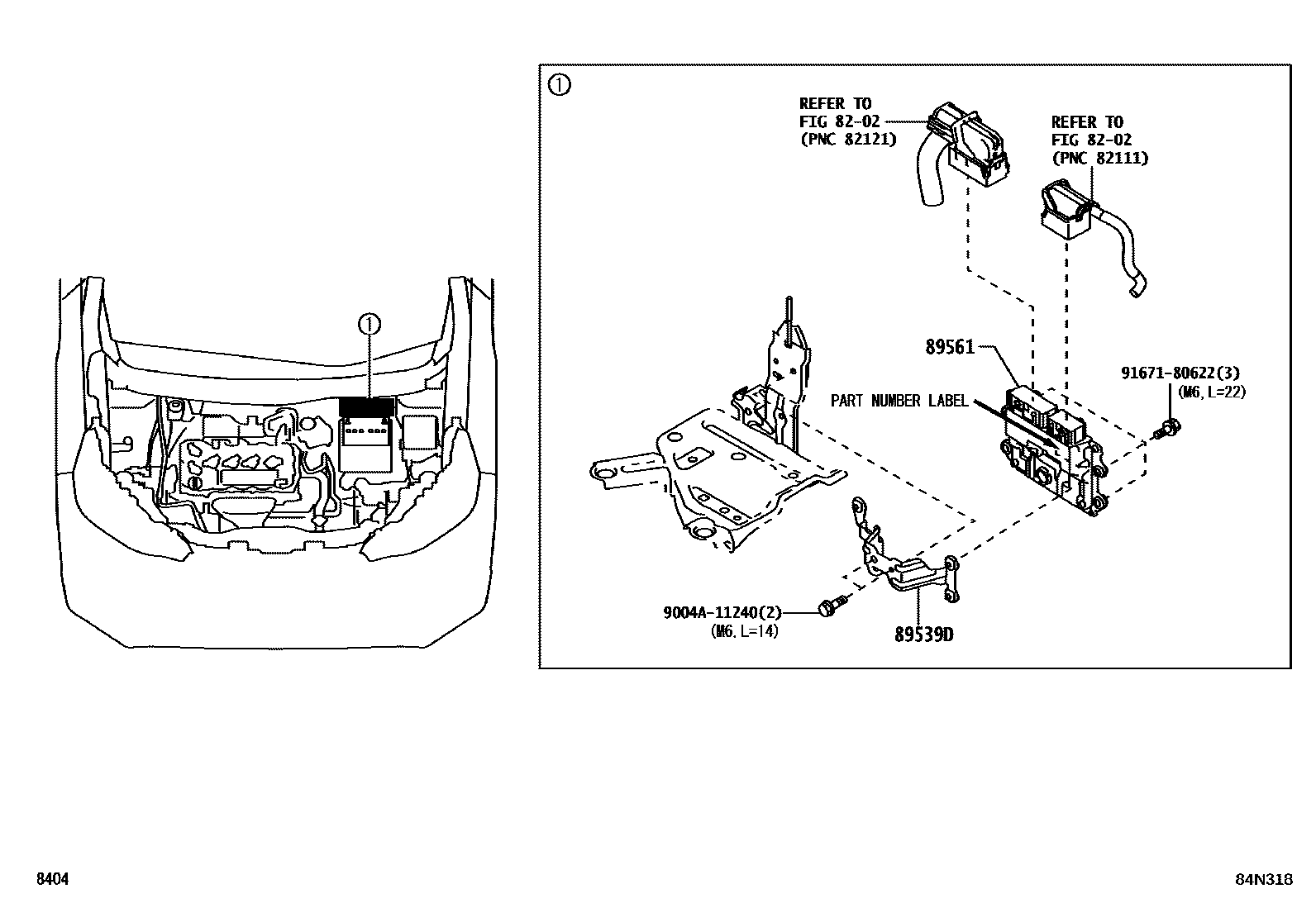

Parts diagram
8202
89539DBRACKET, COMPUTER
main89539-BZ510i202111
89561COMPUTER, FUEL INJECTION
main89560-BX871i202201-202304
DENSO
sub89560-BX872
main89560-BX872i202305
main89560-BXA61i202111-202304
DENSO
sub89560-BXA62
main89560-BXA62i202305
main89560-BXE80i202111-202210
DENSO
main89560-BXF30i202201
DENSO
main89560-BXF61i202111-202210
DENSO
main89560-BXP30i202111-202210
DENSO
main89560-BXP50i202201-202309
DENSO
sub89560-BXP51
main89560-BXP51i202310
DENSO
main89560-BXP71i202201-202304
DENSO
sub89560-BXP72
main89560-BXP72i202305
main89560-BXP81i202201-202304
DENSO
sub89560-BXP82
main89560-BXP82i202305
main89560-BXP91i202201-202304
DENSO
sub89560-BXP92
main89560-BXP92i202305
main89560-BXQ81i202111-202304
DENSO
sub89560-BXQ82
main89560-BXQ82i202305
main89560-BYP60i202201
DENSO
main89560-BYR21i202201
DENSO
main89560-BYS80i202111-202210
DENSO
main89560-BYS90i202201
DENSO
main89560-BYU41i202111-202304
DENSO
sub89560-BYU42
main89560-BYU42i202305
main895E0-BZD30i202201
DENSO
main895E0-BZD50i202212-202304
DENSO
sub895E0-BZD51
main895E0-BZD51i202305
main895E0-BZD60i202212-202304
DENSO
sub895E0-BZD61
main895E0-BZD61i202305
main895E0-BZD80i202212-202304
DENSO
sub895E0-BZD81
main895E0-BZD81i202305
main895E0-BZE80i202212-202304
DENSO
sub895E0-BZE81
main895E0-BZE81i202305-202501
main895E0-BZE90i202212-202304
DENSO
sub895E0-BZE91
main895E0-BZE91i202305-202501
main895E0-BZL80i202210
DENSO
main895E0-BZM00i202210
DENSO
main895E0-BZM20i202210
DENSO
main895E0-BZM30i202210
DENSO
main895E0-BZM40i202210-202304
DENSO
sub895E0-BZM41
main895E0-BZM41i202305
main895E0-BZM60i202210-202304
DENSO
sub895E0-BZM61
main895E0-BZM61i202305
main895E0-BZM70i202210-202304
DENSO
sub895E0-BZM71
main895E0-BZM71i202305
9004A11240
main9004A-11240
9167180622
main91671-80622¥90

5 parts on this diagram · 1 diagram in section
