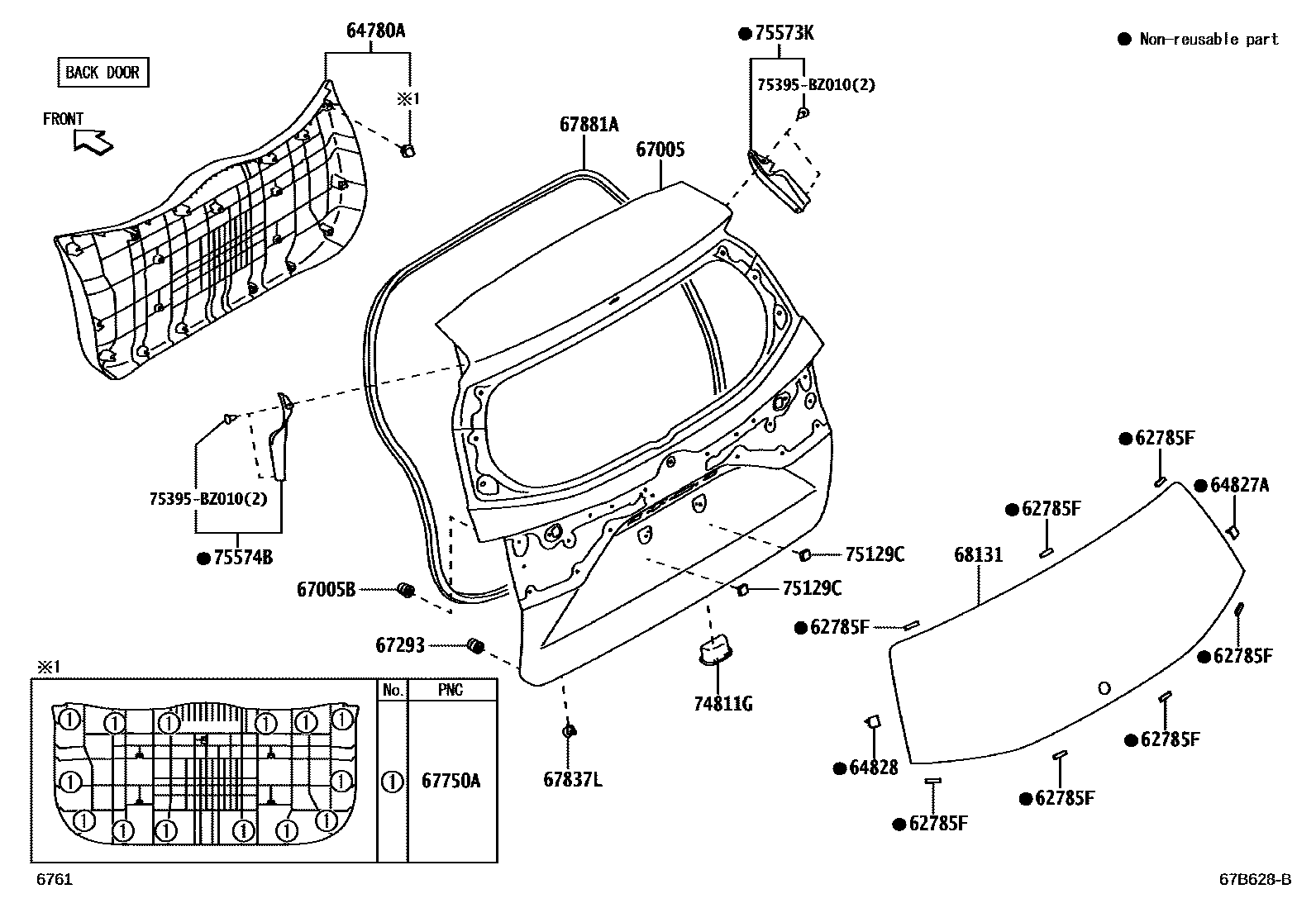

Toyota AVANZA/VELOZ — BACK DOOR PANEL & GLASS

0001 1BACK DOOR 0002 1BACK DOOR GARNISH 0003 1BACK DOOR GARNISH

62785FSPACER, BACK DOOR GLASS

main64818-BZ090iW100,101202111

64780APANEL ASSY, BACK DOOR TRIM

main64780-BZ210-C0iW100,101202111

BLACK,TRIM2#

64827ACLIP, BACK WINDOW GLASS, RH

main64827-BZ130iW100,101202111

64828CLIP, BACK WINDOW GLASS, LH

main64828-BZ100iW100,101202111

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZB80iW101..(S,V)..(IDN,PHL,THAI,VN)202111

main67005-BZG60iW100..GEN;W100,101..(G,M)..(GEN,IDN,PHL,VN)202111

main67005-BZG90iW100..D..(IDN,PHL)202111

main67005-BZJ20iW101..MXC202201

main67005-BZK80iW101..GCC202212

67005BCUSHION(FOR BACK DOOR PANEL)

main9004A-54016iW100,101¥170202111

67293CUSHION, BACK DOOR LOWER STOPPER

main9004A-54016iW100,101¥170202111

67750ACLIP(FOR BACK DOOR TRIM)

main9004A-46338iW100,101202111

67837LSEAL, DOOR DUST PROOF

main67837-BZ030iW100,101202111

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ210iW100,101202111

68131GLASS, BACK DOOR

main68105-BZ360iW101..(S,V)..IDN;W100,101..GCC,GEN,MXC,PHL,THAI202111

main68105-BZ500iW101..VN202212

main68131-BZ660iW100,101..(D,M)..IDN202111

74811GHANDLE, DOOR PULL

main74811-BZ030iW100,101¥590202111

75129CCUSHION, REAR LICENCE PLATE

main75129-BZ010iW100,101202111

sub75129-87502¥170

75573KMOULDING, BACK WINDOW, OUTSIDE RH

main75573-BZ050iW100,101202111

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-BZ020iW100,101202111

75395BZ010CLIP, BACK DOOR MOULDING, NO.1

main75395-BZ010

16 parts on this diagram · 3 diagrams in section
