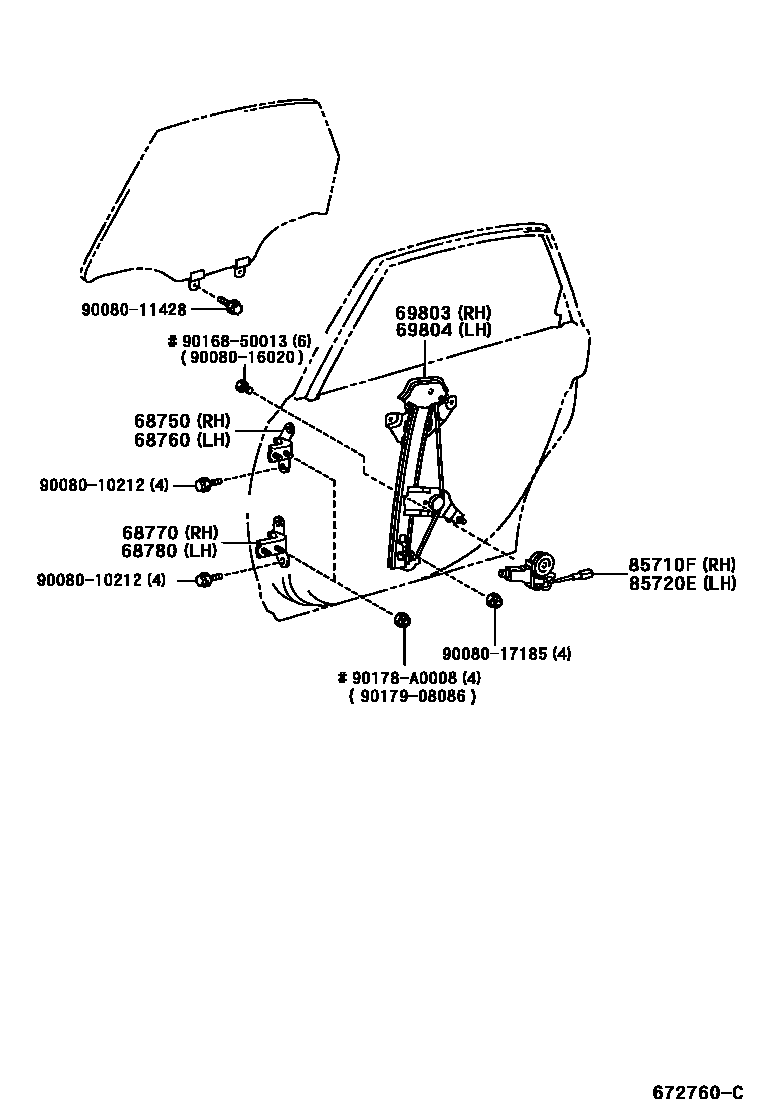

Toyota AVALON — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-AC010iMCX20¥3,280199908-200206

main68750-AC010iMCX20¥3,280200206-200501

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-AC010iMCX20¥3,280199908-200206

main68760-AC010iMCX20¥3,280200206-200501

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-AC010iMCX20¥3,600199908-200206

main68770-AC010iMCX20¥3,600200206-200501

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-AC010iMCX20¥3,600199908-200206

main68780-AC010iMCX20¥3,600200206-200501

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-AC010iMCX20¥7,500199908-200206

main69803-AC010iMCX20¥7,500200206

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-AC010iMCX20¥7,500199908-200206

main69804-AC010iMCX20¥7,500200206

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AC030iMCX20¥25,500199908-200206

main85710-AC030iMCX20¥25,500200206

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AC030iMCX20¥25,500199908-200206

main85720-AC030iMCX20¥25,500200206

9008010212

main90080-10212¥130

9008011428

main90080-11428¥60

9008016020

main90080-16020

9008017185

main90080-17185

9016850013

main90168-50013¥170

90178A0008

main90178-A0008

9017908086

main90179-08086¥160

15 parts on this diagram · 1 diagram in section
