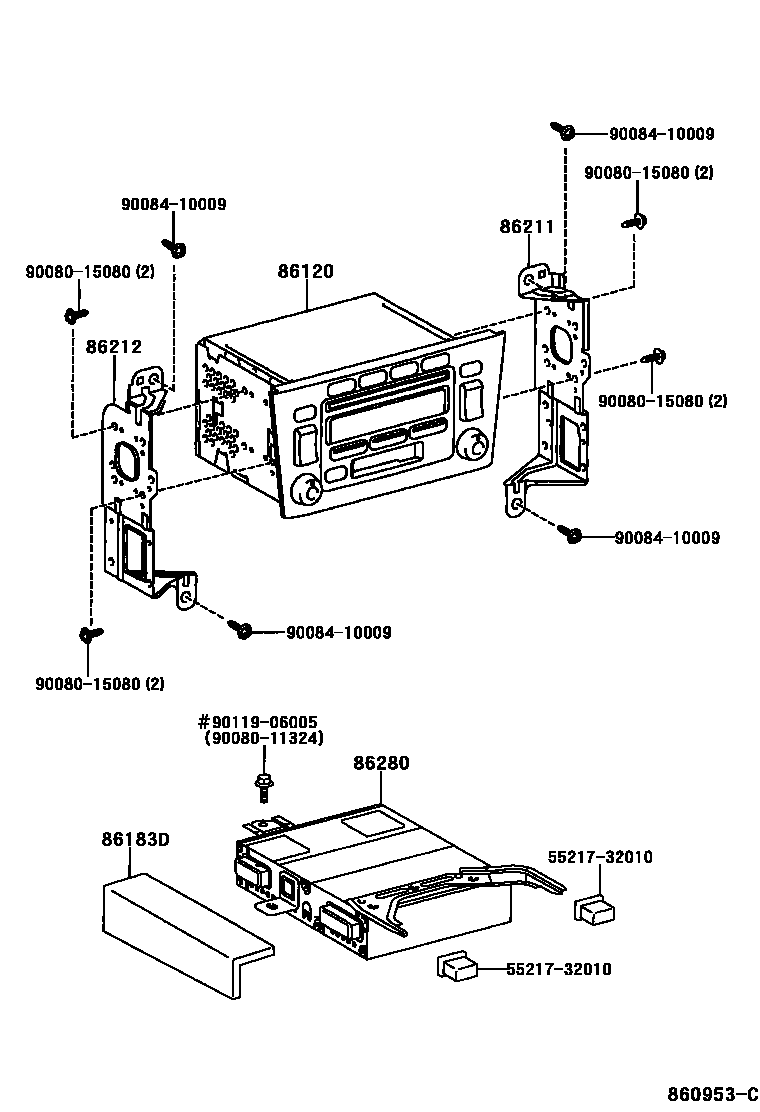

Toyota AVALON — RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
FUJITSU TEN,ID=16838,TYPE D:REFER TO ILLUSTRATION
DELCO,ID=AD6804,TYPE B:REFER TO ILLUSTRATION
DELCO,ID=AD6804,TYPE B:REFER TO ILLUSTRATION
FUJITSU TEN,ID=16812,TYPE A:REFER TO ILLUSTRATION
sub86120-AC091
FUJITSU TEN,ID=16824,TYPE A:REFER TO ILLUSTRATION
FUJITSU TEN,ID=16824,TYPE A:REFER TO ILLUSTRATION
DELCO,ID=AD6902,TYPE E:REFER TO ILLUSTRATION,W(NAVIGATION SYSTEM)
FUJITSU TEN,ID=16813,TYPE A:REFER TO ILLUSTRATION
sub86120-AC111
FUJITSU TEN,ID=16825,TYPE A:REFER TO ILLUSTRATION
FUJITSU TEN,ID=16825,TYPE A:REFER TO ILLUSTRATION
DELCO,ID=AD6901,TYPE E:REFER TO ILLUSTRATION
86183DCOVER, AUDIO AMPLIFIER
IVORY,TRIM0#
IVORY,TRIM0#
STONE,TRIM1#
STONE,TRIM1#
FAWN,TRIM4#
FAWN,TRIM4#
86280AMPLIFIER ASSY, STEREO COMPONENT
5521732010STRIP, DASH PANEL SILENCER FINISH
9008011324
main90080-11324
9008015080
9008410009
9011906005
10 parts on this diagram · 3 diagrams in section
