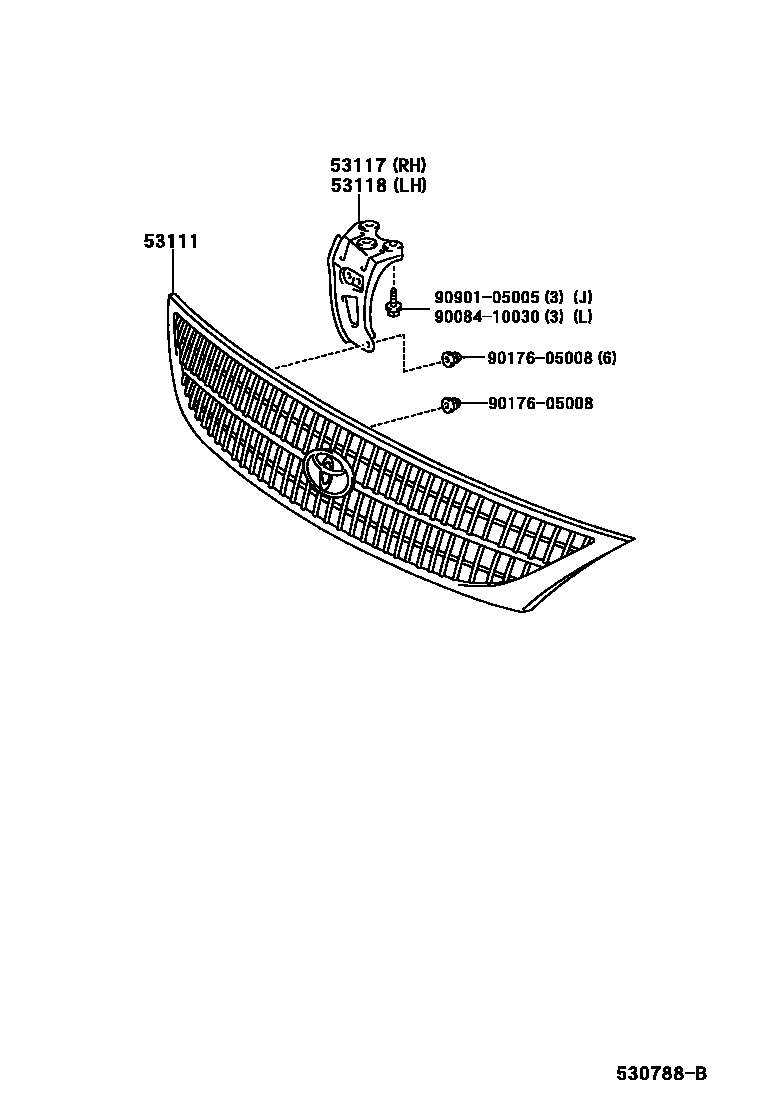

Toyota AVALON — RADIATOR GRILLE

0001 1 0002 1

53111GRILLE, RADIATOR

main53100-AC040iMCX20¥32,900199908-200206

main53100-AC060iMCX20¥33,000200206-200501

53117BRACKET, RADIATOR GRILLE SUPPORT, RH

main53117-AC010iMCX20¥1,480199908-200206

main53117-AC010iMCX20¥1,480200206-200501

53118BRACKET, RADIATOR GRILLE SUPPORT, LH

main53118-AC010iMCX20¥1,480199908-200206

main53118-AC010iMCX20¥1,480200206-200501

9008410030

main90084-10030¥110

9017605008

main90176-05008¥130

9090105005

main90901-05005¥90

6 parts on this diagram · 2 diagrams in section
