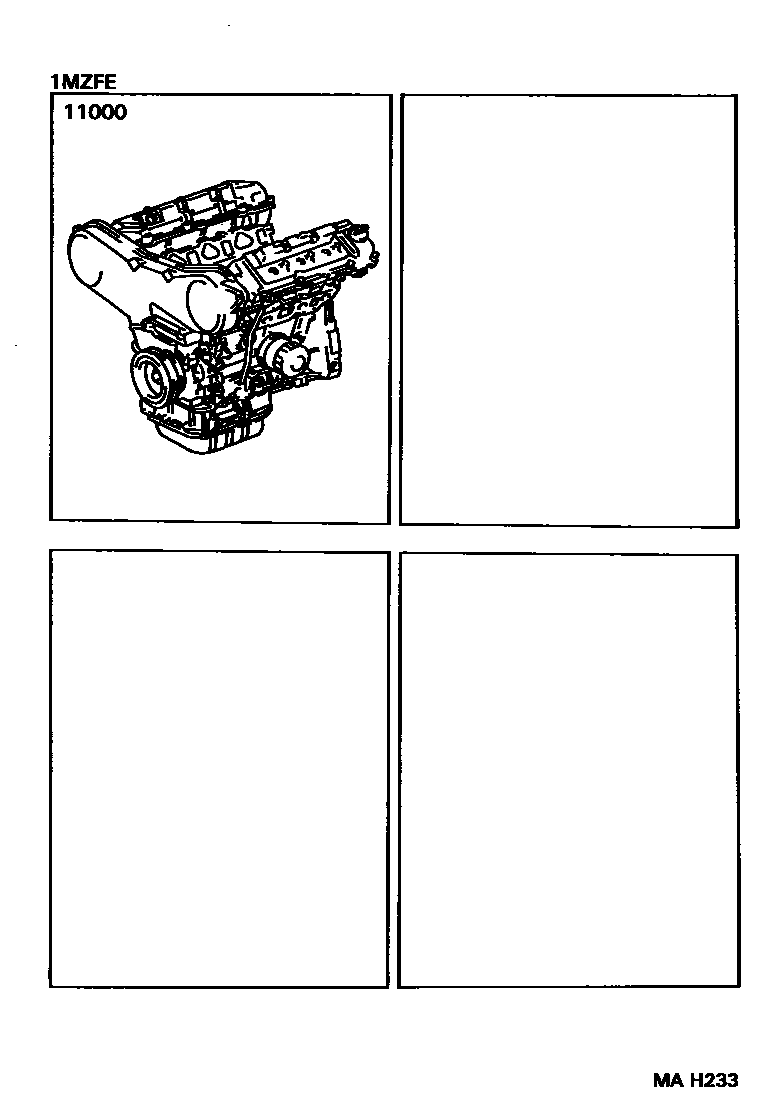

Toyota AVALON — PARTIAL ENGINE ASSEMBLY

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0A140i199908-200206

sub19000-0A141¥1,057,000

main19000-0A140i200206-200501

sub19000-0A141¥1,057,000

1 parts on this diagram · 1 diagram in section
