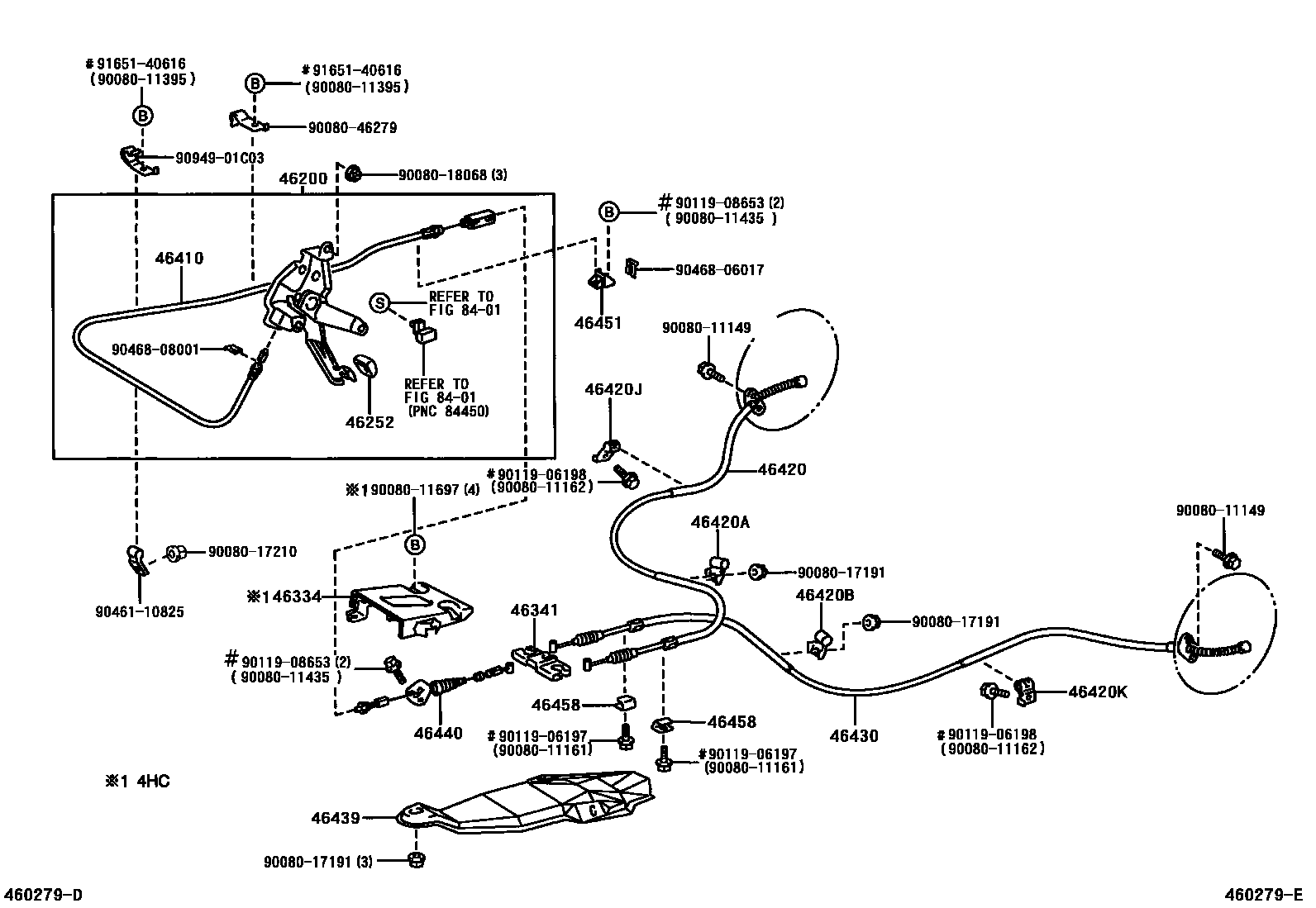

Toyota AVALON — PARKING BRAKE & CABLE
46334PROTECTOR, INTERMEDIATE LEVER
46341EQUALIZER, PARKING BRAKE
46420CABLE ASSY, PARKING BRAKE, NO.2
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)
46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46439INSULATOR, PARKING BRAKE CABLE HEAT
46440CABLE ASSY, PARKING BRAKE, NO.4
46451BRACKET, CABLE SUPPORT
8401
9008011149
main90080-11149
9008011161
9008011162
9008011395
main90080-11395
9008011435
9008011697
9008017191
9008017210
9008018068
main90080-18068
9008046279
9011906197
9011906198
9011908653
9046110825
9046806017
9046808001
9094901C03
9165140616
34 parts on this diagram · 2 diagrams in section
