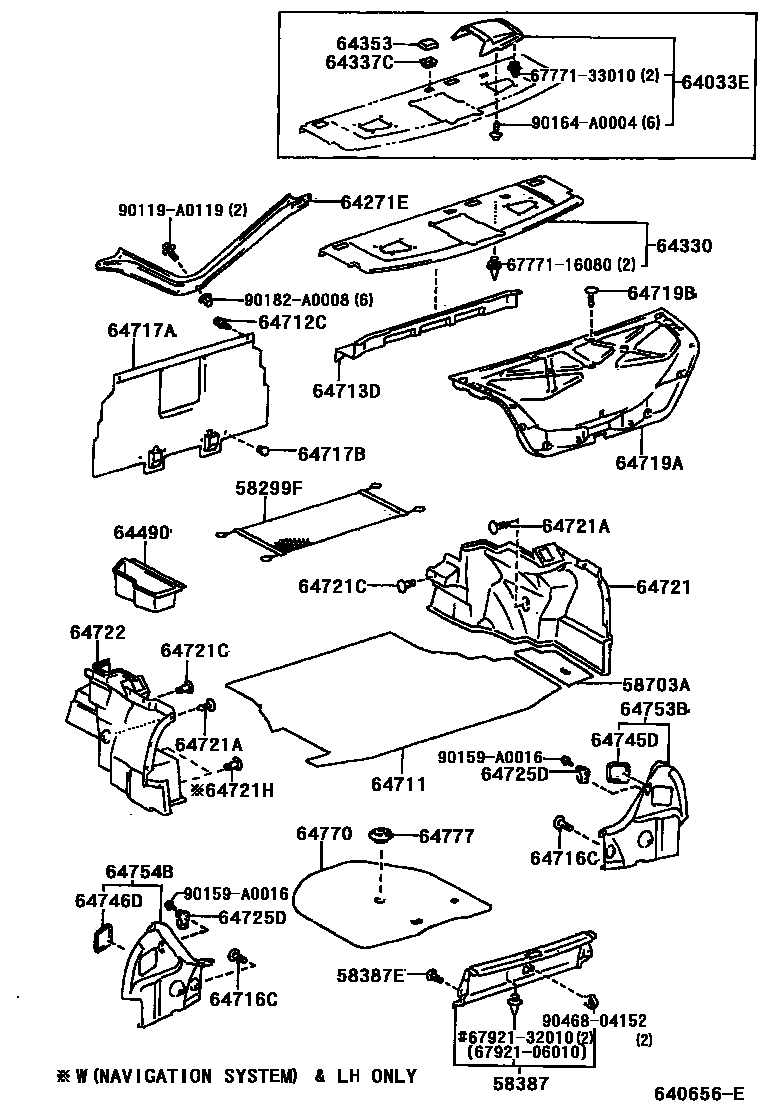

Toyota AVALON — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58299FNET, BAGGAGE HOLDER

main58299-AA010iMCX20¥7,600200207-200501

main58299-AC010-C0iMCX20199908-200207

BLACK,TRIM0#,1#,4#

sub58299-AA010¥7,600

58387PLATE, REAR FLOOR FINISH

main58387-AC030-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-07138iMCX20¥260199908-200206

main90467-07138-C0iMCX20200206-200501

BLACK,TRIM0#,1#,4#

sub90467-07138¥260

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-07010iMCX20¥1,810199908-200206

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-AC011-A0iMCX20199908-200501

IVORY,TRIM0#

main64033-AC011-B0iMCX20199908-200501

STONE,TRIM1#

main64033-AC011-E8iMCX20199908-200501

FAWN,TRIM4#

64271EPANEL, ROOM PARTITION

main64241-AC020iMCX20¥11,700199908-200501

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-AC030-A1iMCX20..XL199908-200501

IVORY,TRIM0#

main64330-AC030-B1iMCX20..XL199908-200501

STONE,TRIM1#

main64330-AC030-E1iMCX20..XL199908-200501

FAWN,TRIM4#

main64330-AC040-A1iMCX20199908-200501

W(WOOFER SPEAKER),IVORY,TRIM0#

main64330-AC040-B1iMCX20199908-200501

W(WOOFER SPEAKER),STONE,TRIM1#

main64330-AC040-E1iMCX20199908-200501

W(WOOFER SPEAKER),FAWN,TRIM4#

64337CGARNISH, PACKAGE TRAY TRIM

main64337-AC010-A1iMCX20199908-200501

IVORY,TRIM0#

main64337-AC010-B1iMCX20199908-200501

STONE,TRIM1#

main64337-AC010-E1iMCX20199908-200501

FAWN,TRIM4#

64353COVER, PACKAGE TRAY TRIM BELT HOLE

main64353-AC010-A1iMCX20199908-200501

IVORY,TRIM0#

main64353-AC010-B1iMCX20199908-200501

STONE,TRIM1#

main64353-AC010-E1iMCX20199908-200501

FAWN,TRIM4#

64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE

main64490-AC010iMCX20¥5,100199908-200501

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-AC090-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

main64711-AC100-C0iMCX20..XLS200206-200501

W(NAVIGATION SYSTEM),BLACK,TRIM0#,1#,4#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08150iMCX20¥200199908-200501

64713DCOVER, LUGGAGE COMPARTMENT TRIM, FRONT LH

main64713-AC010-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07138iMCX20¥260199908-200206

main90467-07138-C0iMCX20200206-200501

BLACK,TRIM0#,1#,4#

sub90467-07138¥260

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-AC040-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-09156-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-AC030-C0iMCX20199908-200005

BLACK,TRIM0#,1#,4#

sub64719-AC031¥13,000

main64719-AC031-C0iMCX20200005-200008

BLACK,TRIM0#,1#,4#

main64719-AC040-C0iMCX20200008-200501

BLACK,TRIM0#,1#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07138iMCX20¥260199908-200309

main90467-07201iMCX20¥100200309

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-AC030-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

sub90467-07042¥110

sub90467-06175¥220

64721CCLIP(LUGGAGE COMPARTMENT)

main90080-46294iMCX20¥140199912-200501

main90467-07146iMCX20¥190199908-199912

64721HCLIP(LUGGAGE COMPARTMENT)

main90467-07138-C0iMCX20..XLS200206-200501

BLACK,TRIM0#,1#,4#

sub90467-07138¥260

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-AC060-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

main64722-AC070-C0iMCX20..XLS200206-200501

W(NAVIGATION SYSTEM),BLACK,TRIM0#,1#,4#

64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-AC010-C0iMCX20199908-200501

BLACK,TRIM0#,1#,4#

64745DCOVER, REAR COMBINATION LAMP SERVICE, RH

main64745-AC010iMCX20¥660199908-200206

main64745-AC020iMCX20¥2,390200206-200501

64746DCOVER, REAR COMBINATION LAMP SERVICE, LH

main64746-AC010iMCX20¥660199908-200206

main64746-AC020iMCX20¥2,390200206-200501

64753BPLATE, REAR FLOOR FINISH SIDE, RH

main64753-AC010-C0iMCX20199908-200206

BLACK,TRIM0#,1#,4#

main64753-AC020iMCX20¥6,800200206-200501

64754BPLATE, REAR FLOOR FINISH SIDE, LH

main64754-AC010-C0iMCX20199908-200206

BLACK,TRIM0#,1#,4#

main64754-AC020iMCX20¥7,000200206-200501

64770COVER ASSY, SPARE WHEEL

main64770-06030iMCX20199908-200409

sub64770-06031

main64770-06031iMCX20200409-200501

64777CLAMP, SPARE WHEEL COVER

main64777-32030iMCX20¥850199908-200501

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080¥160

6777133010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33010¥160

6792106010RETAINER, FRONT DOOR SCUFF PLATE

main67921-06010

6792132010RETAINER, FRONT DOOR SCUFF PLATE

main67921-32010¥160

90119A0119

main90119-A0119

90159A0016

main90159-A0016

90164A0004

main90164-A0004

90182A0008

main90182-A0008

9046804152

main90468-04152¥160

39 parts on this diagram · 1 diagram in section
