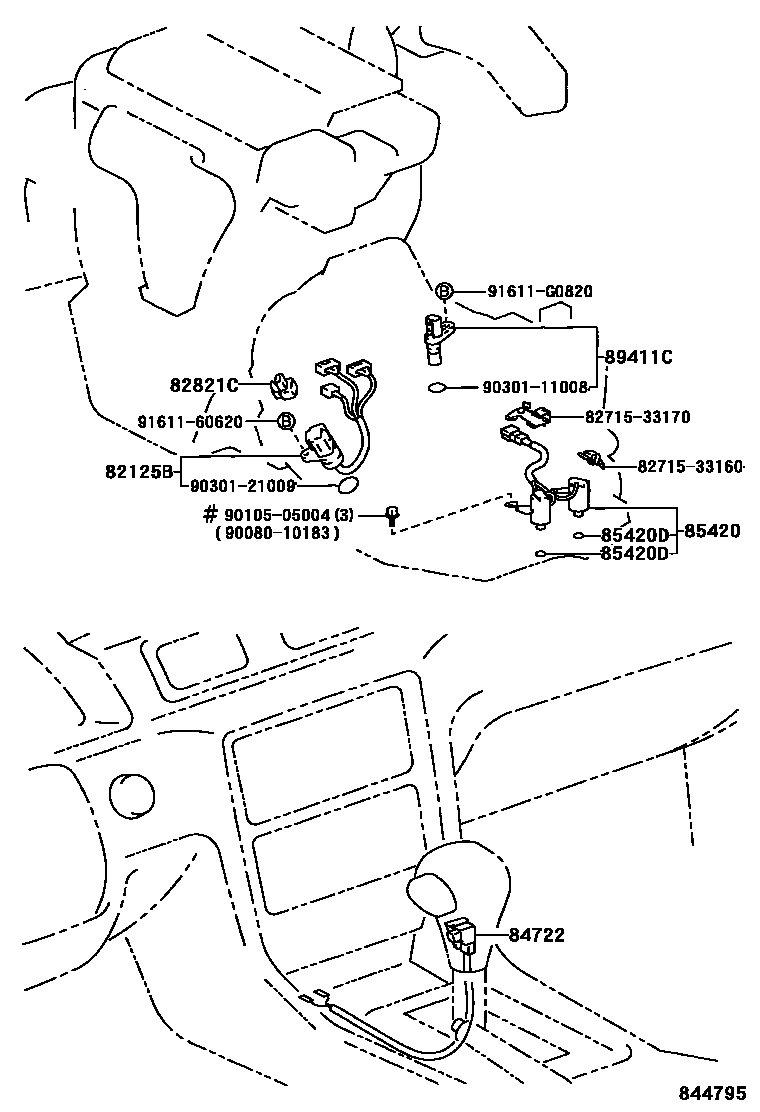

Toyota AVALON — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-33010iMCX20¥2,190199908-200501

82821CCOVER, CONNECTOR

main82821-33050iMCX20¥540200206-200501

84722SWITCH, TRANSMISSION CONTROL

main84722-07050-A0iMCX20..4FC199908-200501

IVORY,TRIM0#

main84722-07050-B0iMCX20..4FC199908-200501

STONE,TRIM1#

main84722-07050-E0iMCX20..4FC199908-200501

FAWN,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-33010iMCX20¥19,700199908-200501

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iMCX20¥120199908-200501

89411CSENSOR, SPEED

main89411-33010iMCX20¥6,000199908-200309

TOYOTA

sub89413-24010¥6,000

main89413-24010iMCX20¥6,000199908-200501

AISIN

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160¥160

8271533170BRACKET,WIRING HARNESS CLAMP

main82715-33170¥280

9008010183

main90080-10183

9010505004

main90105-05004¥80

9030111008

main90301-11008¥160

9030121009

main90301-21009¥170

9161160620

main91611-60620¥90

91611G0820

main91611-G0820¥160

14 parts on this diagram · 1 diagram in section
