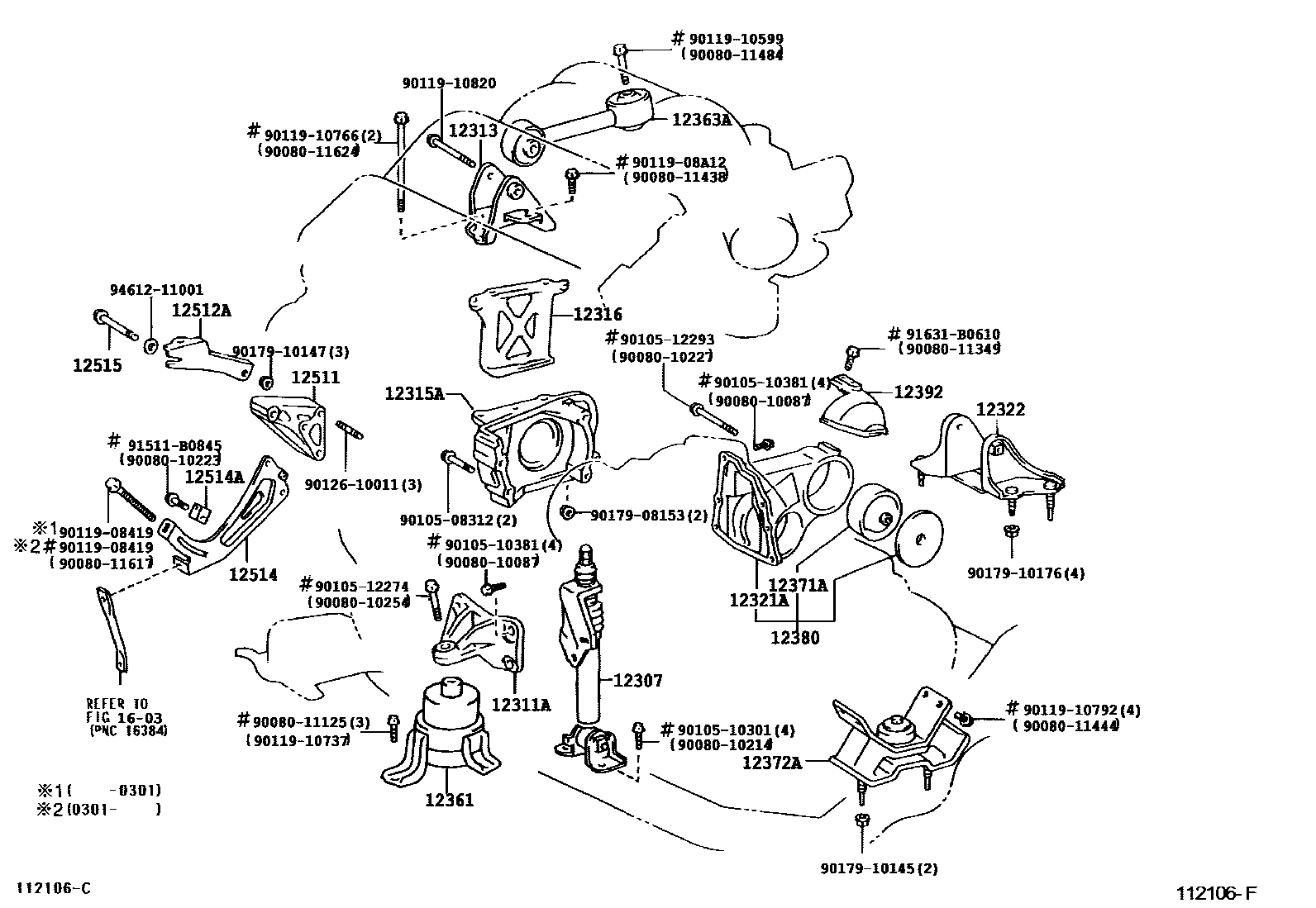

Toyota AVALON — MOUNTING
12307ABSORBER SUB-ASSY, ENGINE MOUNTING
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12316BRACKET, ENGINE MOUNTING, NO.2 RH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12322BRACKET, ENGINE MOUNTING, REAR NO.2
12361INSULATOR, ENGINE MOUNTING, FRONT
12363AROD, ENGINE MOVING CONTROL
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12380INSULATOR ASSY, ENGINE MOUNTING, REAR
12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12511BRACKET, ALTERNATOR, NO.1
12512ABRACKET, ALTERNATOR, NO.2
12514BAR, ALTERNATOR BELT ADJUSTING
12514ASLIDER, FAN BELT ADJUSTING
12515BOLT, ALTERNATOR THROUGH
1603
9008010087
main90080-10087
9008010214
9008010223
9008010227
9008010254
main90080-10254
9008011125
9008011349
main90080-11349
9008011438
main90080-11438
9008011444
main90080-11444
9008011484
main90080-11484
9008011617
main90080-11617
9008011624
main90080-11624
9010508312
9010510301
9010510381
9010512274
9010512293
9011908419
9011908A12
9011910599
9011910737
9011910766
9011910792
9011910820
9012610011
9017908153
9017910145
9017910147
9017910176
91511B0845
91631B0610
9461211001
51 parts on this diagram · 1 diagram in section
