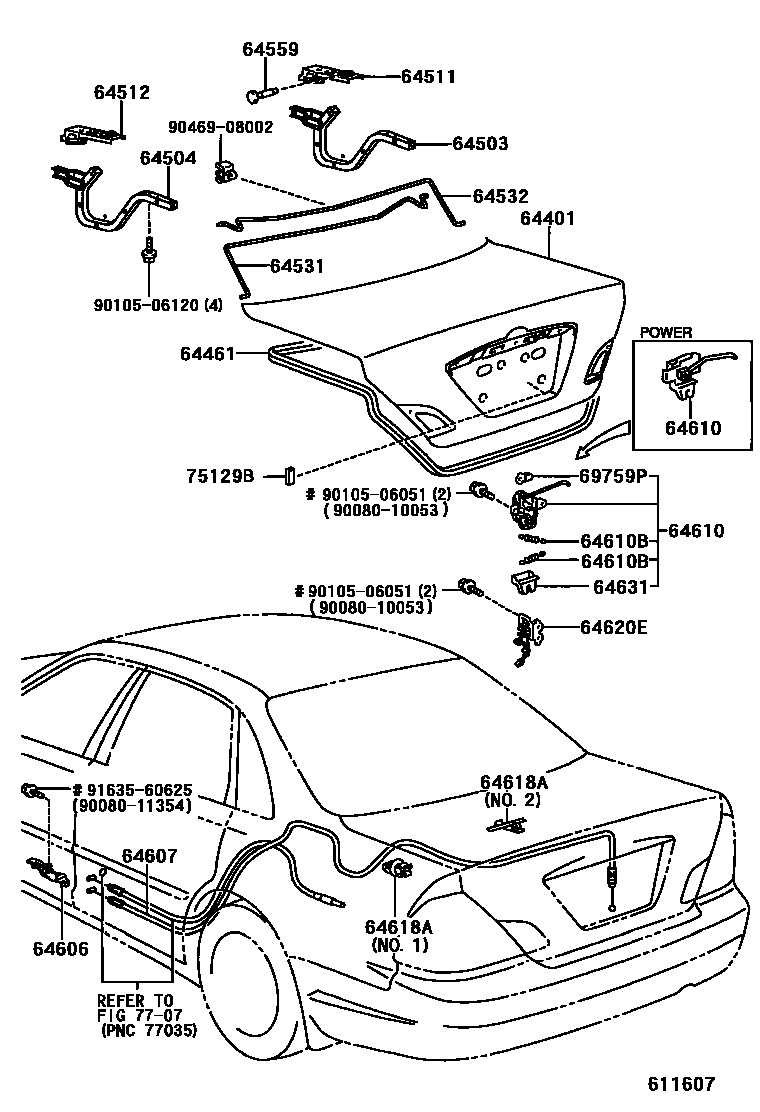

Toyota AVALON — LUGGAGE COMPARTMENT DOOR & LOCK
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
64610BSPRING, TENSION(FOR LOCK)
WD=0.55,CW=17.25,UPPER
64618ACLAMP, LUGGAGE LOCK CONTROL CABLE
NO.1:REFER TO ILLUSTRATION
NO.2:REFER TO ILLUSTRATION
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64631PROTECTOR, LUGGAGE DOOR LOCK
69759PSNAP, DOOR LOCK CONTROL LINK
75129BCUSHION, REAR LICENCE PLATE
7707
9008010053
9008011354
9010506051
9010506120
9046908002
9163560625
25 parts on this diagram · 2 diagrams in section
