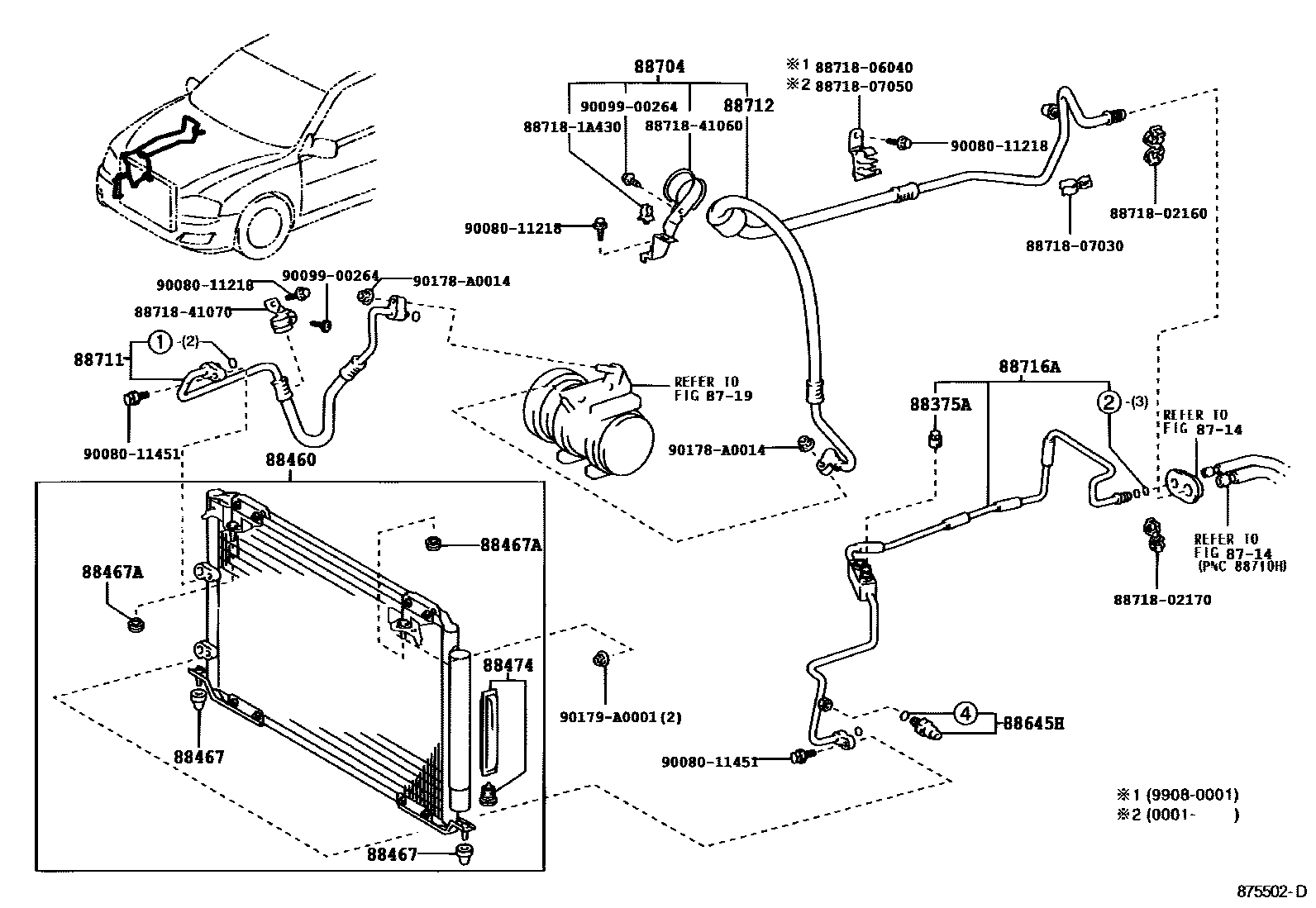

Toyota AVALON — HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714

8719

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-02060iMCX20¥110199908-200206

sub88375-0E020

88460CONDENSER ASSY, COOLER

main88460-07031iMCX20199908-200103

sub88460-07032

main88460-07032iMCX20200103-200206

88467CUSHION, COOLER CONDENSER, NO.1

main88467-06030iMCX20200003-200501

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-33030iMCX20200003-200501

88474DRYER, COOLER

main88474-47010iMCX20200003-200501

88645HSWITCH, PRESSURE NO.1

main88645-60030iMCX20199908-200206

88704HOSE SUB-ASSY, SUCTION

main88704-07041iMCX20199908-200001

sub88704-07042

sub88718-07050

main88704-07042iMCX20200001-200206

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-07010iMCX20199908-200206

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-07021iMCX20199908-200206

sub88712-07022

sub88718-07050

main88712-07022iMCX20200206-200501

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-07101iMCX20199908-200206

8871802160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02160¥1,180

8871802170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02170¥740

8871806040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06040

8871807030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07030

8871807050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-07050

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

8871841060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-41060

8871841070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-41070

9008011218

main90080-11218¥50

9008011451

main90080-11451

9009900264

main90099-00264

90178A0014

main90178-A0014

90179A0001

main90179-A0001

25 parts on this diagram · 2 diagrams in section
