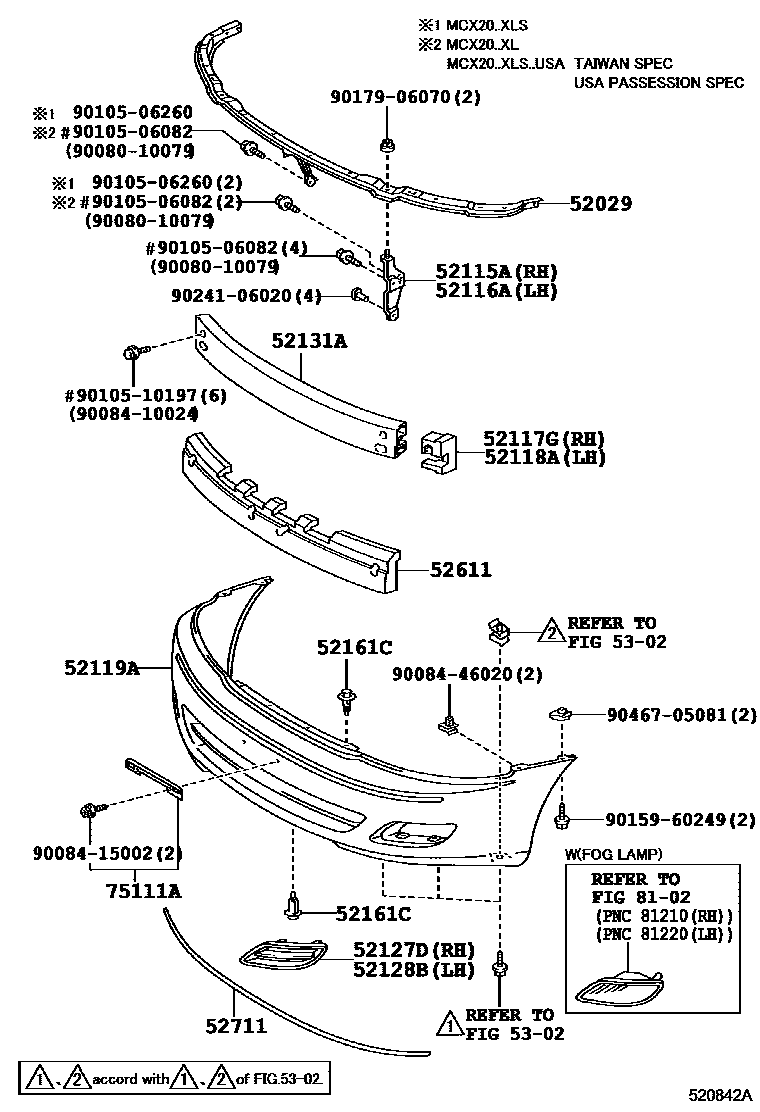

Toyota AVALON — FRONT BUMPER & BUMPER STAY
52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52117GINSERT, FRONT BUMPER EXTENSION, NO.2 RH
52118AINSERT, FRONT BUMPER EXTENSION, NO.2 LH
52119ACOVER, FRONT BUMPER
52127DCOVER, FRONT BUMPER HOLE, RH
SU. WHITE PM.,051
SILVER ME.,1C8
GRAY M.M.,1E3
BLACK,202
DK RED MC,3Q7
BEIGE M. M.,4Q2
DK. GREEN MC.,6S7
GR.GREEN ME.,6M3
DK.BLUE MC.,8Q0
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
DK.RED MC.,3N6
BEIGE M.M.,4Q2
BROWN M.M.GR.,4Q3
GR.GREEN ME.,6M3
GREEN MC.,6R1
BLUE M.M.,8N4
52128BCOVER, FRONT BUMPER HOLE, LH
SU. WHITE PM.,051
SILVER ME.,1C8
GRAY M.M.,1E3
BLACK,202
DK RED MC,3Q7
BEIGE M. M.,4Q2
DK. GREEN MC.,6S7
GR.GREEN ME.,6M3
DK.BLUE MC.,8Q0
SU.WHITE PM,051
SLVER ME.,1C8
BLACK,202
DK.RED MC.,3N6
BEIGE M.M.,4Q2
BROWN M.M.GR.,4Q3
GR.GREEN ME.,6M3
GREEN MC.,6R1
BLUE M.M.,8N4
52131AREINFORCEMENT, FRONT BUMPER
52161CPIECE, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
52711MOULDING, FRONT BUMPER
5302
75111ABRACKET, FRONT LICENSE PLATE
8102
9008010079
main90080-10079
9008410024
9008415002
9008446020
9010506082
9010506260
9010510197
9015960249
9017906070
9024106020
9046705081
26 parts on this diagram · 2 diagrams in section
