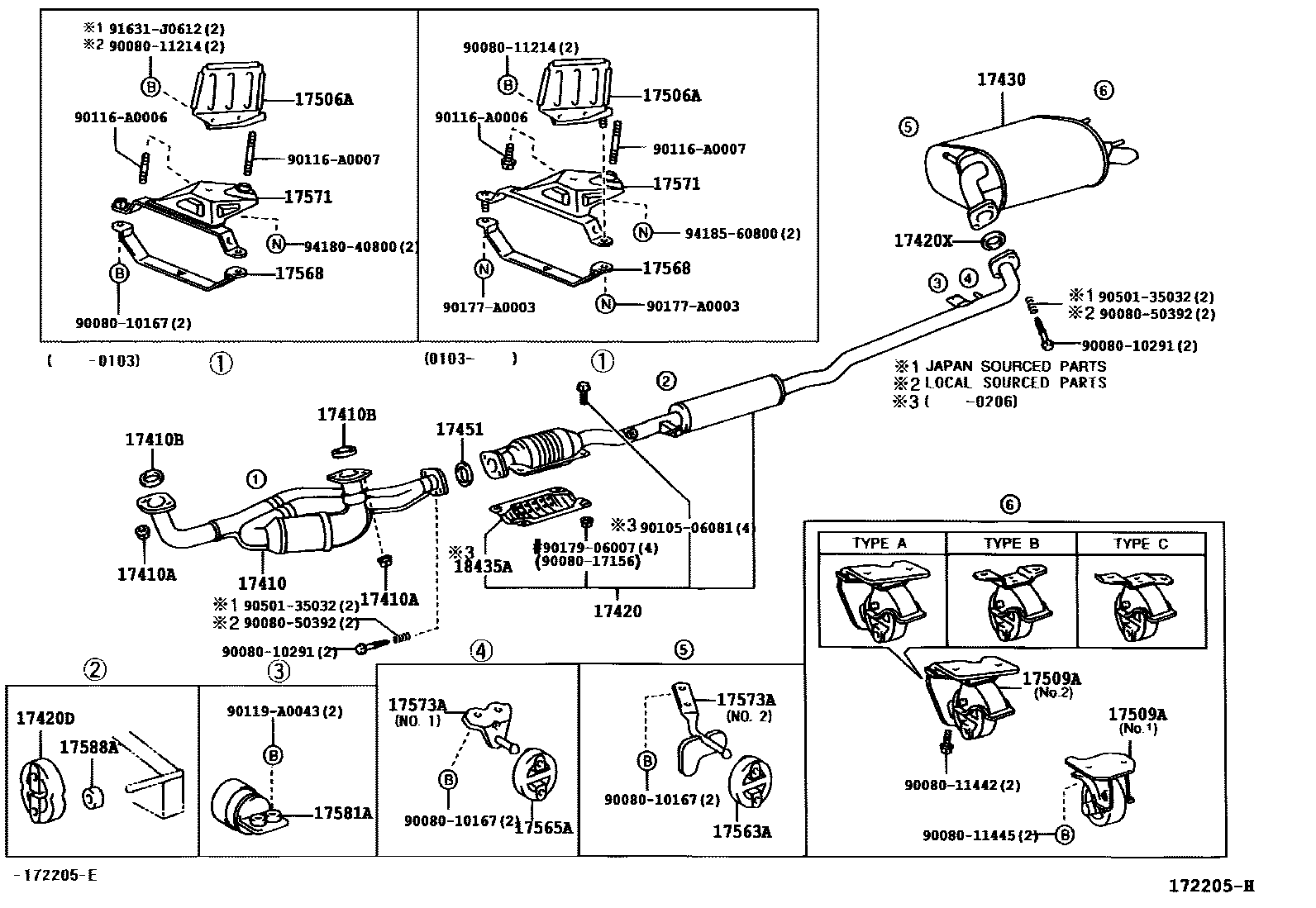

Toyota AVALON — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
(L)
(J)
17420PIPE ASSY, EXHAUST, CENTER
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420XGASKET, EXHAUST PIPE, CENTER
(L)
(L)
(J)
(J)
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
(L)
(L)
(J)
(J)
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
TYPE B:REFER TO ILLUSTRATION,NO.2
TYPE B:REFER TO ILLUSTRATION,NO.2
TYPE C:REFER TO ILLUSTRATION,NO.2
TYPE C:REFER TO ILLUSTRATION,NO.2
NO.1
NO.1
TYPE A:REFER TO ILLUSTRATION,NO.2
TYPE A:REFER TO ILLUSTRATION,NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17568STAY, EXHAUST PIPE SUPPORT
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
(L),NO.2
NO.1
NO.1
NO.2
NO.2
(J),NO.2
17581ADAMPER, EXHAUST PIPE
17588ASPACER, EXHAUST PIPE HANGER
18435APROTECTOR, MONOLITHIC CONVERTER
9008010167
main90080-10167
9008010291
main90080-10291
9008011214
9008011442
main90080-11442
9008011445
9008017156
9008050392
main90080-50392
9010506081
90116A0006
main90116-A0006
90116A0007
main90116-A0007
90119A0043
main90119-A0043
90177A0003
main90177-A0003
9017906007
9050135032
91631J0612
9418040800
9418560800
35 parts on this diagram · 1 diagram in section
