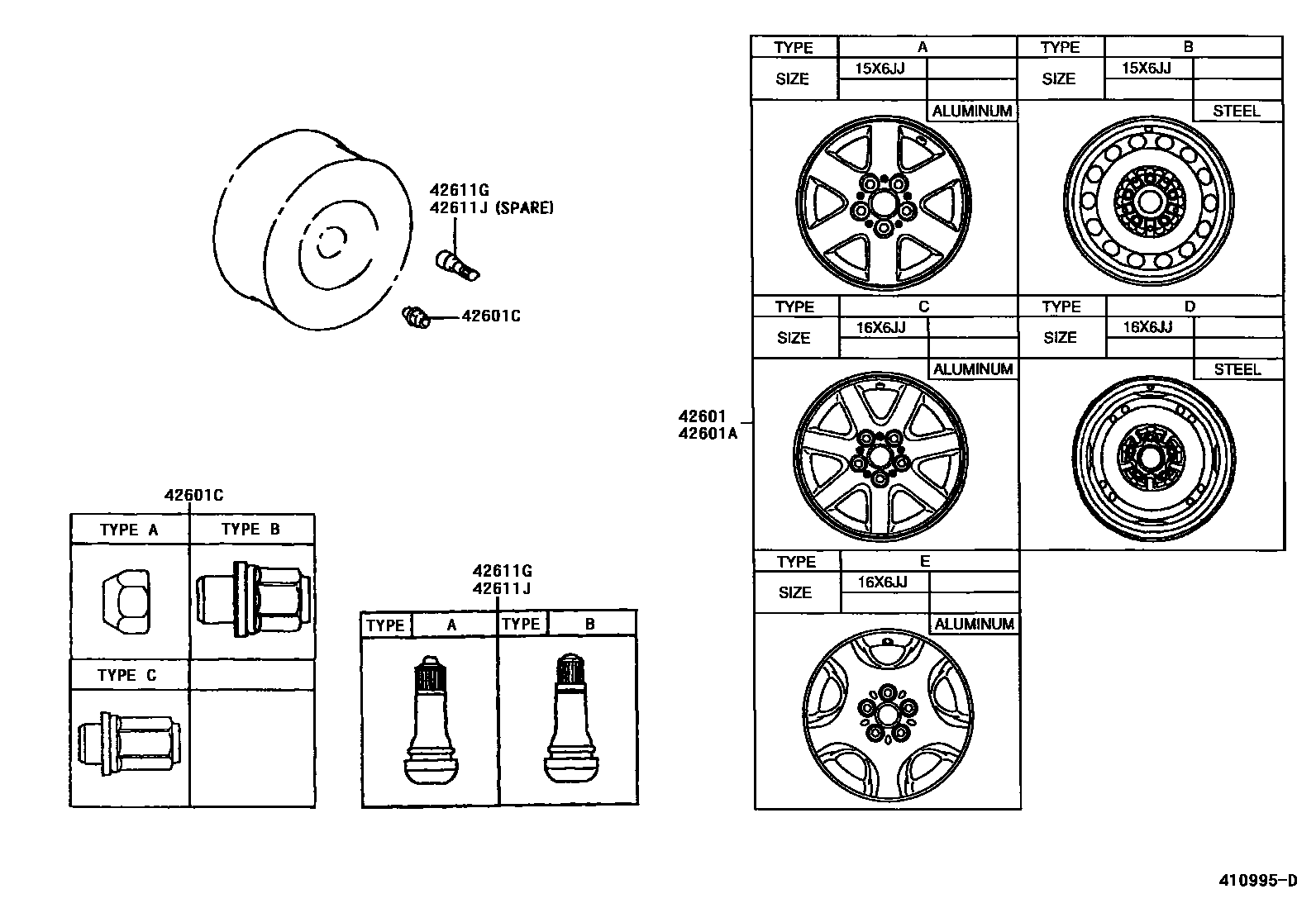

Toyota AVALON — DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X6JJ,TYPE B:REFER TO ILLUSTRATION
16X6JJ,TYPE E:REFER TO ILLUSTRATION,(J)
15X6JJ,TYPE A:REFER TO ILLUSTRATION
15X6JJ,TYPE A:REFER ILLUST.
16X6JJ,TYPE E:REFER TO ILLUSTRATION,(L)
16X6JJ,TYPE C:REFER ILLUST.
16X6JJ,TYPE C:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
15X6JJ,TYPE B:REFER TO ILLUSTRATION
16X6JJ,TYPE D:REFER TO ILLUSTRATION
16X6JJ,0FFSET 45,TYPE D:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
TYPE A:REFER TO ILLUSTRATION
ALUMINUM
42611GVALVE (FOR TUBELESS TIRE)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
5 parts on this diagram · 5 diagrams in section
