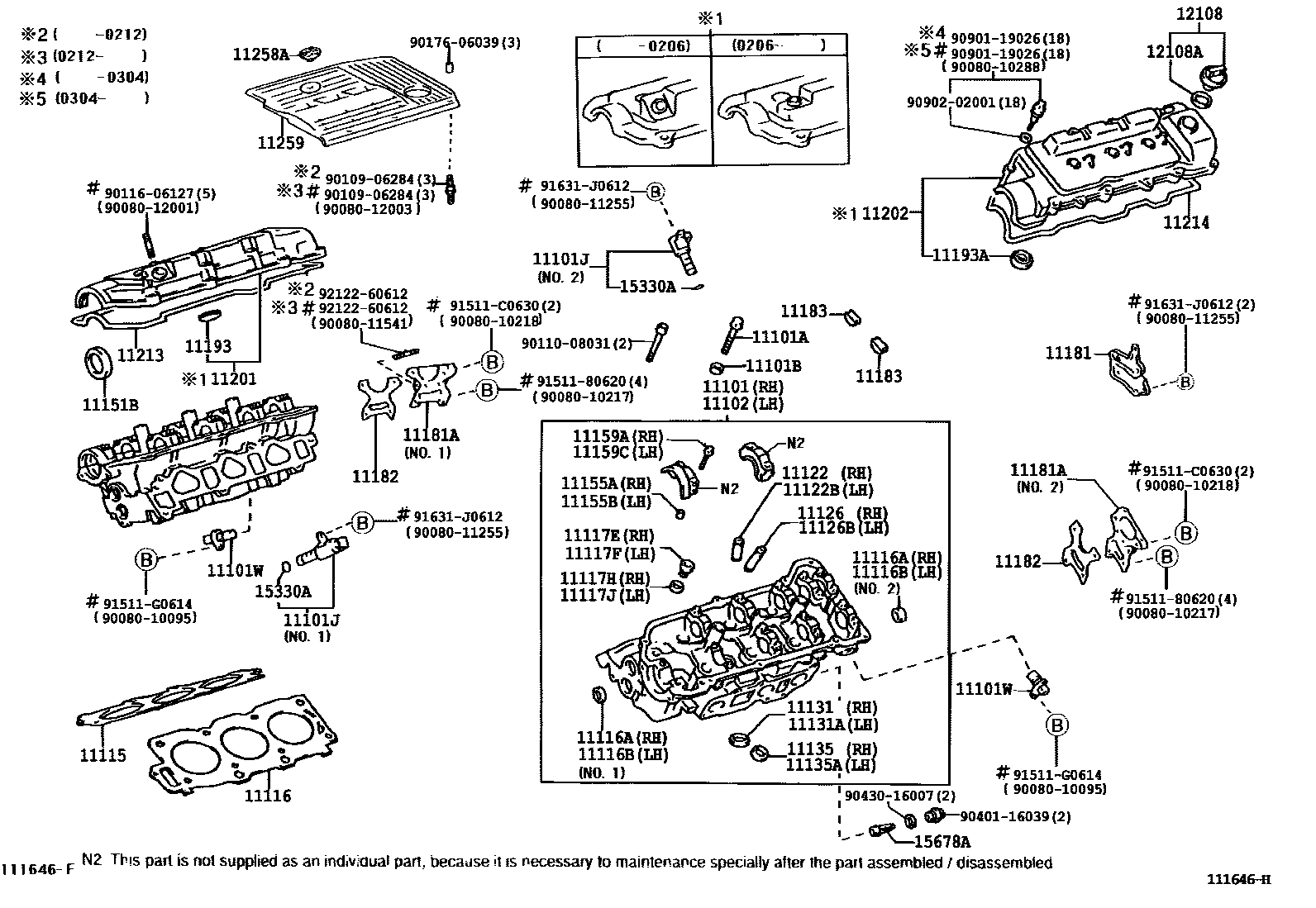

Toyota AVALON — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J)
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1,(L)
NO.1,(J)
NO.2,(L)
NO.2,(J)
11101WSENSOR, CRANK POSITION, NO.1
11102HEAD, CYLINDER, LH
(J)
11115GASKET, CYLINDER HEAD
11116GASKET, CYLINDER HEAD, NO.2
11116APLUG, TIGHT, NO.1
NO.2
NO.1
11116BPLUG, TIGHT, NO.2
NO.2
NO.1
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11181PLATE, CYLINDER HEAD, REAR
11181ACOVER, CYLINDER HEAD, REAR
NO.1
NO.1
NO.2
NO.2
11182GASKET, CYLINDER HEAD REAR PLATE
11193GASKET, SPARK PLUG TUBE
11193AGASKET, SPARK PLUG TUBE, LH
11213GASKET, CYLINDER HEAD COVER
11214GASKET, CYLINDER HEAD COVER, NO.2
11258AFASTENER, V-BANK COVER
11259COVER, V-BANK
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
(J)
15678AFILTER, OIL CONTROL VALVE
9008010095
main90080-10095
9008010217
9008010218
9008010288
main90080-10288
9008011255
main90080-11255
9008011541
main90080-11541
9008012001
9008012003
main90080-12003
9010906284
9011008031
9011606127
9017606039
9040116039
9043016007
9090119026
9090202001
9151180620
91511C0630
91511G0614
91631J0612
9212260612
64 parts on this diagram · 1 diagram in section
