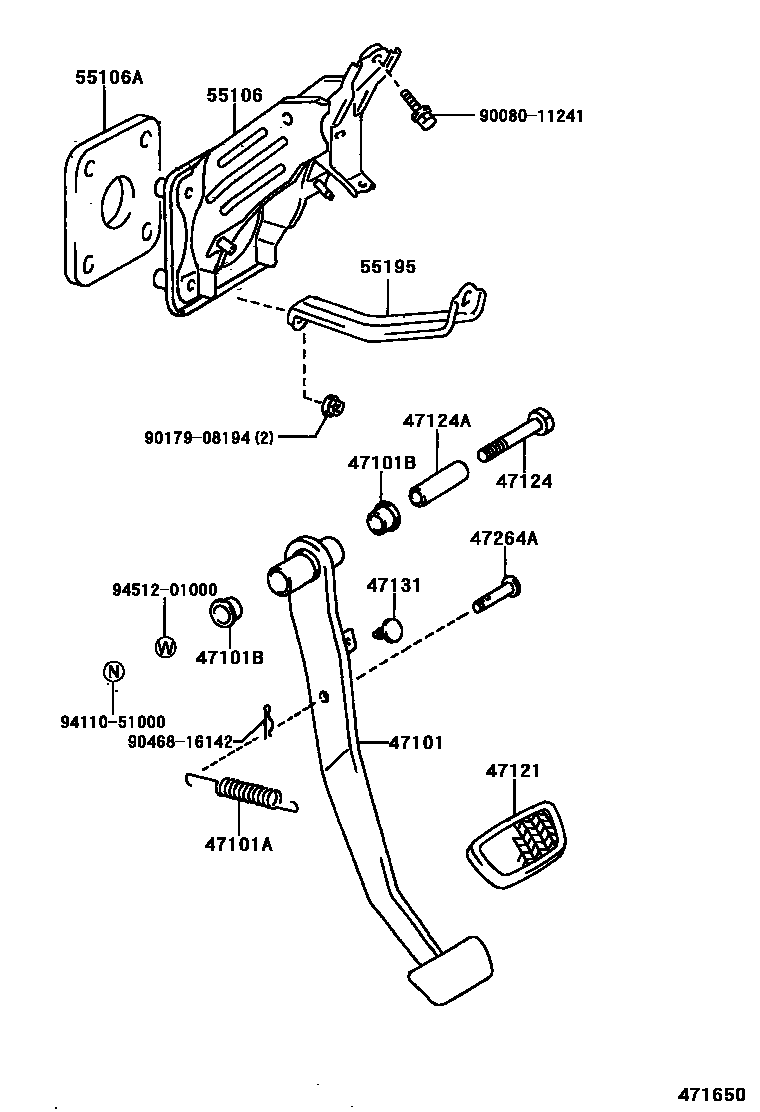

Toyota AVALON — BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-07020iMCX20199908-200107

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07027iMCX20¥260199908-200107

sub90905-07036¥260

main90905-07036iMCX20¥260200107-200206

main90905-07036iMCX20¥260200206

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCX20¥120199908-200107

47121PAD, BRAKE PEDAL

main47121-07010iMCX20¥520199908-200107

main47121-50020iMCX20¥510200107-200206

main47121-50020iMCX20¥510200206

47124SHAFT, BRAKE PEDAL

main90080-10100iMCX20¥250199908-200107

(L)

main90101-10039iMCX20¥160199908-200107

(J)

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMCX20¥370199908-200107

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCX20¥110199908-200107

47264APIN(FOR PUSH ROD)

main47148-12060iMCX20¥360200107-200110

main47148-33010iMCX20¥260199908-200107

sub47148-33011¥220

main47148-33011iMCX20¥220200110-200206

main47148-33011iMCX20¥220200206

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-07030iMCX20199908-200107

main55106-07050iMCX20200107-200206

main55106-07050iMCX20200206-200501

55106ASEAL, DASH PANEL

main55259-20010iMCX20¥430199908-200206

main55259-20010iMCX20¥430200206

55195STAY, PEDAL BRACKET, NO.1

main55195-07010iMCX20199908-200206

main55195-07010iMCX20200206

9008011241

main90080-11241

9017908194

main90179-08194¥130

9046816142

main90468-16142¥70

9411051000

main94110-51000¥130

9451201000

main94512-01000¥90

16 parts on this diagram · 2 diagrams in section
