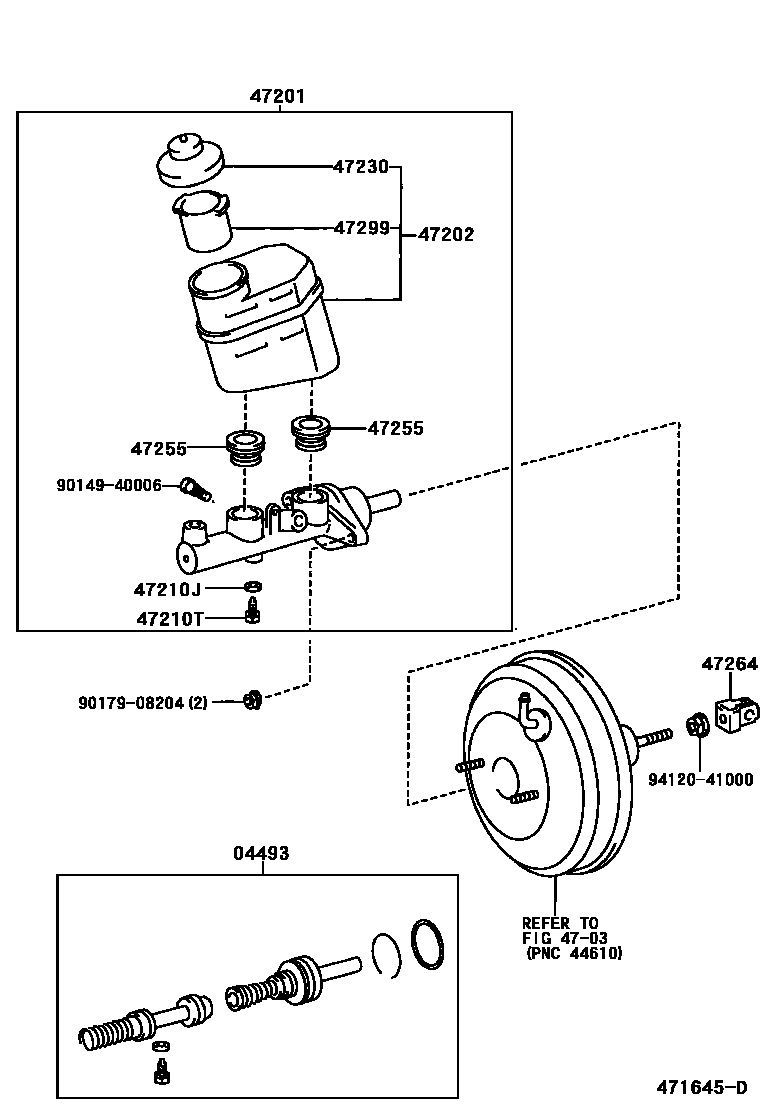

Toyota AVALON — BRAKE MASTER CYLINDER

0001 1 0002 1W(VSC)

04493CYLINDER KIT, BRAKE MASTER

main04493-07020iMCX20¥6,700199908-200206

W(VSC)

main04493-07021iMCX20200008-200107

W(VSC)

main04493-07030iMCX20199908-200206

main04493-07031iMCX20200008-200107

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-07031iMCX20199908-200206

main47201-07032iMCX20200008-200107

main47201-07051iMCX20199908-200206

W(VSC)

sub47201-07070

main47201-07052iMCX20200008-200107

W(VSC)

sub47201-07053

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-07010iMCX20199908-200206

main47220-07030iMCX20199908-200206

W(VSC)

47210JGASKET(FOR MASTER CYLINDER)

main90029-43001iMCX20¥160199908-200206

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06077iMCX20¥160199908-200206

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33050iMCX20¥1,170199908-200206

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-03010iMCX20¥360199908-200206

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iMCX20¥250200101-200206

main47264-32020iMCX20¥460199908-200101

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iMCX20¥540199908-200206

9014940006

main90149-40006¥90

9017908204

main90179-08204¥140

9412041000

main94120-41000¥80

13 parts on this diagram · 2 diagrams in section
