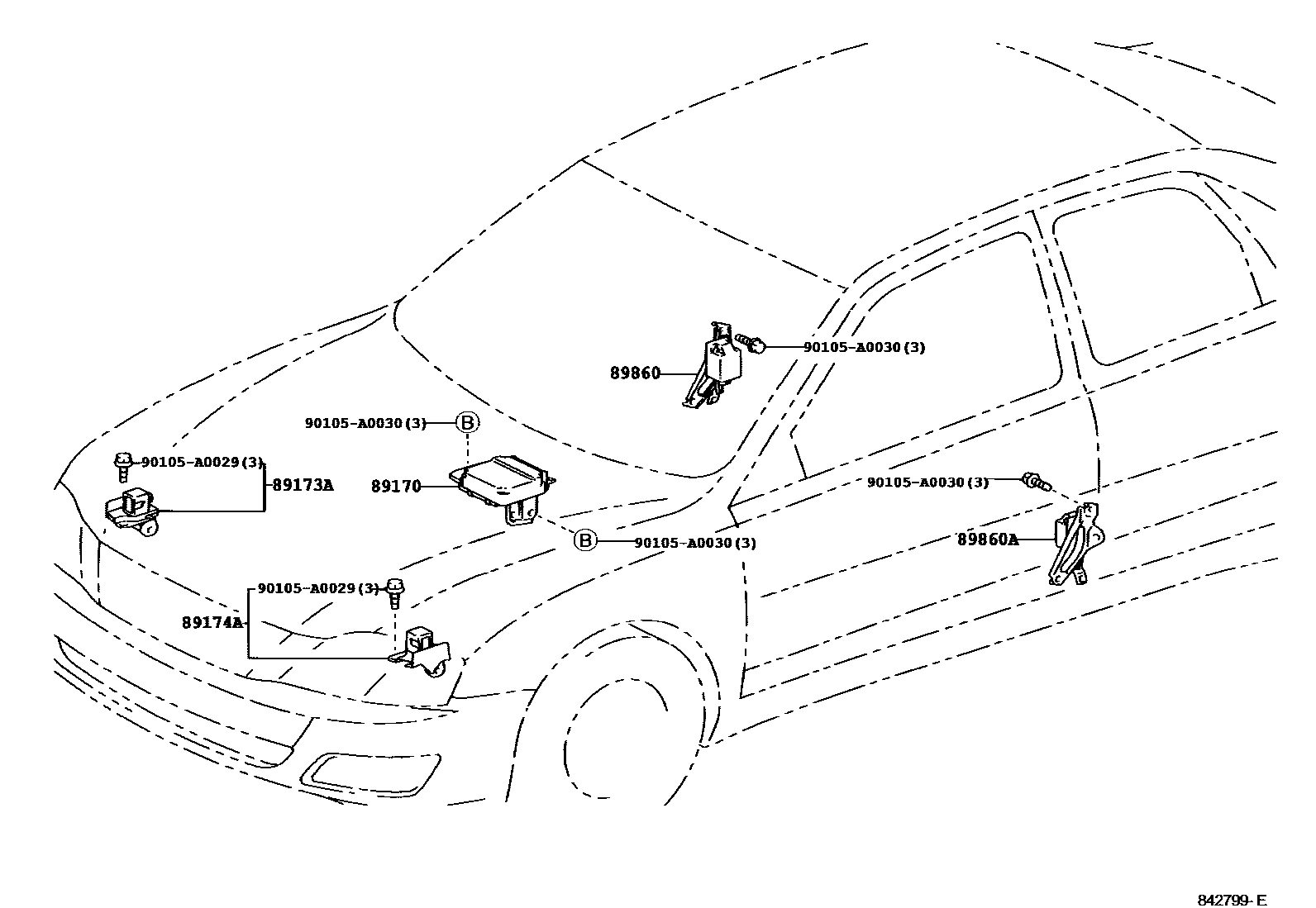

Toyota AVALON — AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-07120iMCX20..USA199908-199911

sub89170-07121

main89170-07120iMCX20199911-200003

sub89170-07121

main89170-07121iMCX20200003-200107

sub89170-07140

main89170-07130iMCX20..CND¥113,000199908-199911

sub89170-07131¥120,000

main89170-07140iMCX20200107-200206

main89170-07200iMCX20200206

sub89170-07330

89173ASENSOR, AIRBAG, FRONT RH

main89173-09240iMCX20200311-200501

sub89173-39195¥13,300

main89173-39195iMCX20¥13,300200206-200311

main89173-39195iMCX20¥13,300199908-200206

89174ASENSOR, AIRBAG, FRONT LH

main89174-09050iMCX20200311-200501

main89174-39095iMCX20¥13,300199908-200206

main89174-39095iMCX20¥13,300200206-200311

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-07020iMCX20199908-200206

main89860-07060iMCX20¥24,900200206

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-07020iMCX20199908-200206

main89830-07060iMCX20¥24,900200206

90105A0029

main90105-A0029

90105A0030

main90105-A0030

7 parts on this diagram · 2 diagrams in section
