Toyota AVALON — WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1DOOR & ROOF 0006 1SEAT & FLOOR & LUGGAGE 0007 1CABLE BOND 0008 1CLAMP & BRACKET 0009 1CONNECTOR

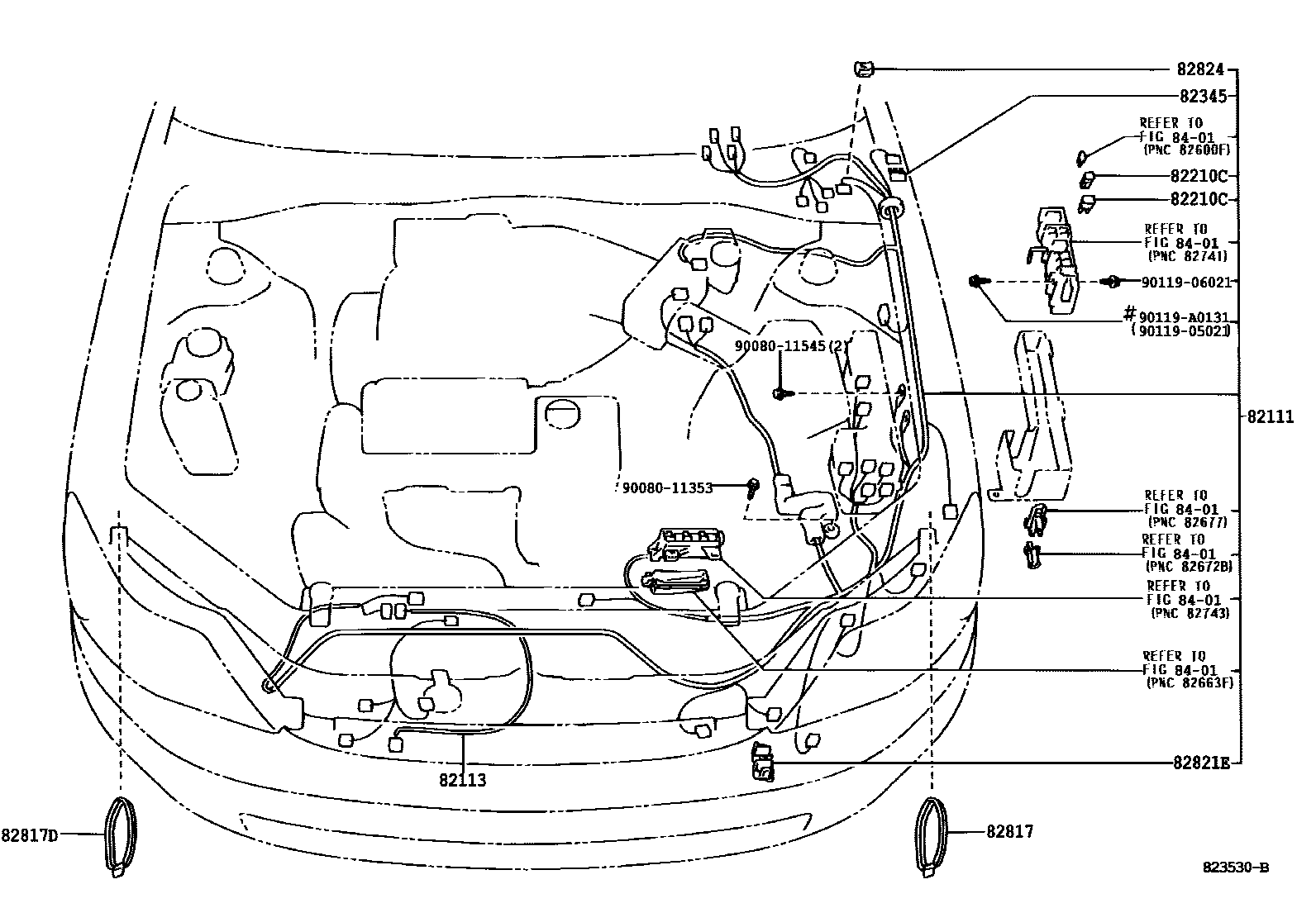

82111WIRE, ENGINE ROOM MAIN

main82111-07280iMCX20199908-200206

main82111-07360iMCX20¥81,800200206-200307

main82111-07361iMCX20200307

82113WIRE, ENGINE ROOM, NO.3

main82113-07010iMCX20¥1,160199908-200206

82210CFUSIBLE LINK

main90982-08202iMCX20¥700199908-200206

60A,TERM.:MALE,YEL

main90982-08254iMCX20¥440199908-200206

120A,TERM.:MALE,WHT

main90982-08283iMCX20¥440199908-200206

30A,TERM.:FEMALE,PNK

main90982-08284iMCX20¥590199908-200206

40A,TERM.:FEMALE,GRN

main90982-08285iMCX20¥440200005-200206

50A,FEMALE,RED,32VDC

82345DIODE

main82345-20040iMCX20¥850199908-200206

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-07420iMCX20¥370199908-200501

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-07430iMCX20200206-200501

82821ECOVER, CONNECTOR

main82821-33150iMCX20¥160199908-200206

82824CONNECTOR, WIRING HARNESS

main82824-22070iMCX20¥1,520199908-200206

8401

9008011353

main90080-11353¥110

9008011545

main90080-11545¥120

9011905021

main90119-05021¥60

9011906021

main90119-06021¥310

90119A0131

main90119-A0131

14 parts on this diagram · 9 diagrams in section
