Toyota AVALON — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING COLUMN 0006 1DOOR,ROOF,FLOOR & LUGGAGE 0007 1OXYGEN SENSOR

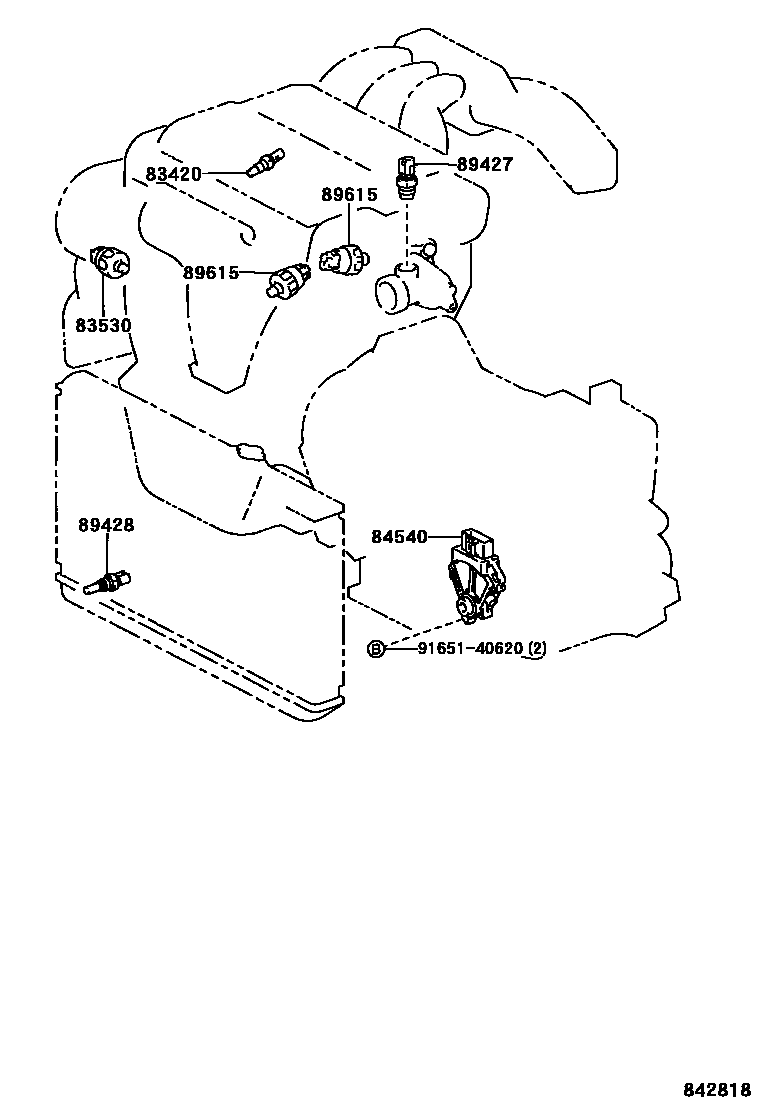

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-AA010iMCX20¥3,720199908-200206

main83420-AA010iMCX20¥3,720200206-200407

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iMCX20¥1,970200206

DENSO

main83530-28020iMCX20¥1,970199908-200206

DENSO

main83530-AA011iMCX20¥1,090199908-200206

FASCO

sub83530-0E010¥3,810

main83530-AA011iMCX20¥1,090200206

FASCO

sub83530-0E010¥3,810

84540SWITCH ASSY, NEUTRAL START

main84540-20200iMCX20¥12,100199908-200206

main84540-20200iMCX20¥12,100200206-200501

89427SWITCH, TEMPERATURE DETECT

main89428-41010iMCX20¥5,200199908-200206

main89428-41010iMCX20¥5,200200206

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-21010iMCX20¥6,000199908-200206

main89428-21010iMCX20¥6,000200206

89615SENSOR, KNOCK CONTROL

main89615-12090iMCX20¥16,900200107-200206

main89615-12090iMCX20¥16,900200206

main89615-32010iMCX20¥16,800199908-200107

sub89615-12090¥16,900

9165140620

main91651-40620¥70

7 parts on this diagram · 7 diagrams in section
