Toyota AVALON — PARTIAL ENGINE ASSEMBLY

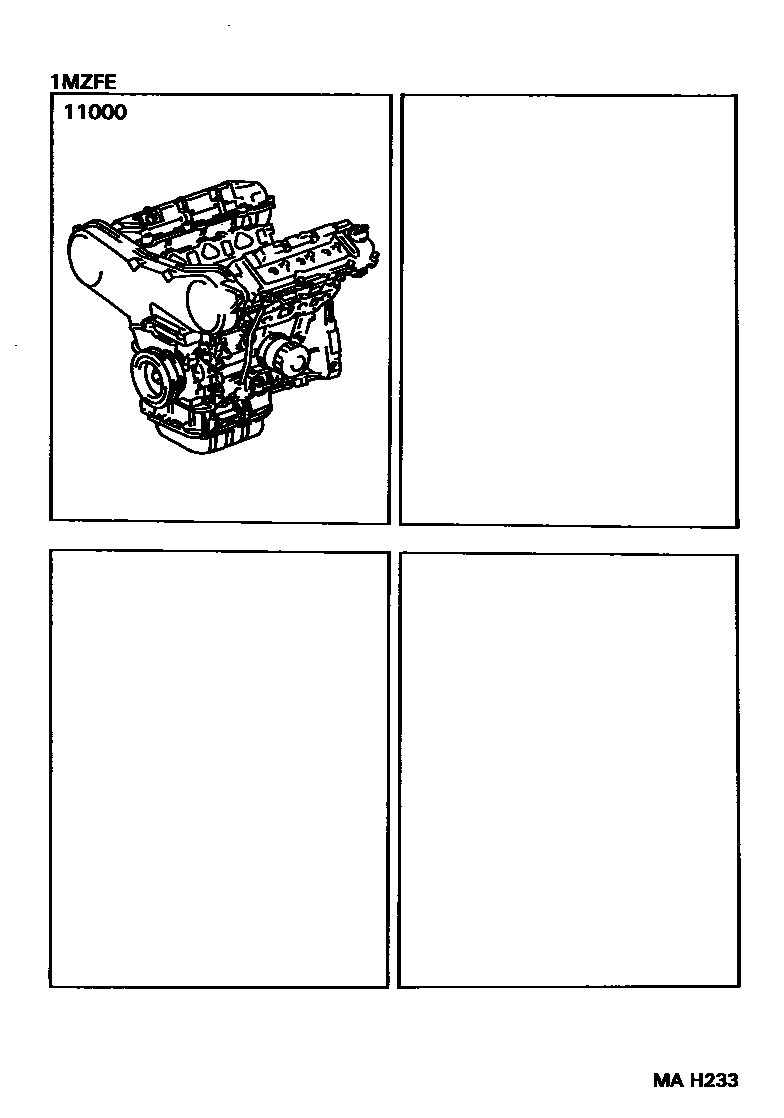

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0A160i199908-200110

sub19000-20082¥961,000

main19000-0A230i200110-200206

sub19000-20280¥1,057,000

main19000-0A231i200206-200208

main19000-0A300i200301-200303

main19000-20102i¥959,000200208-200301

main19000-20102i¥959,000200303-200306

1 parts on this diagram · 1 diagram in section
