Toyota AVALON — MAT & CARPET

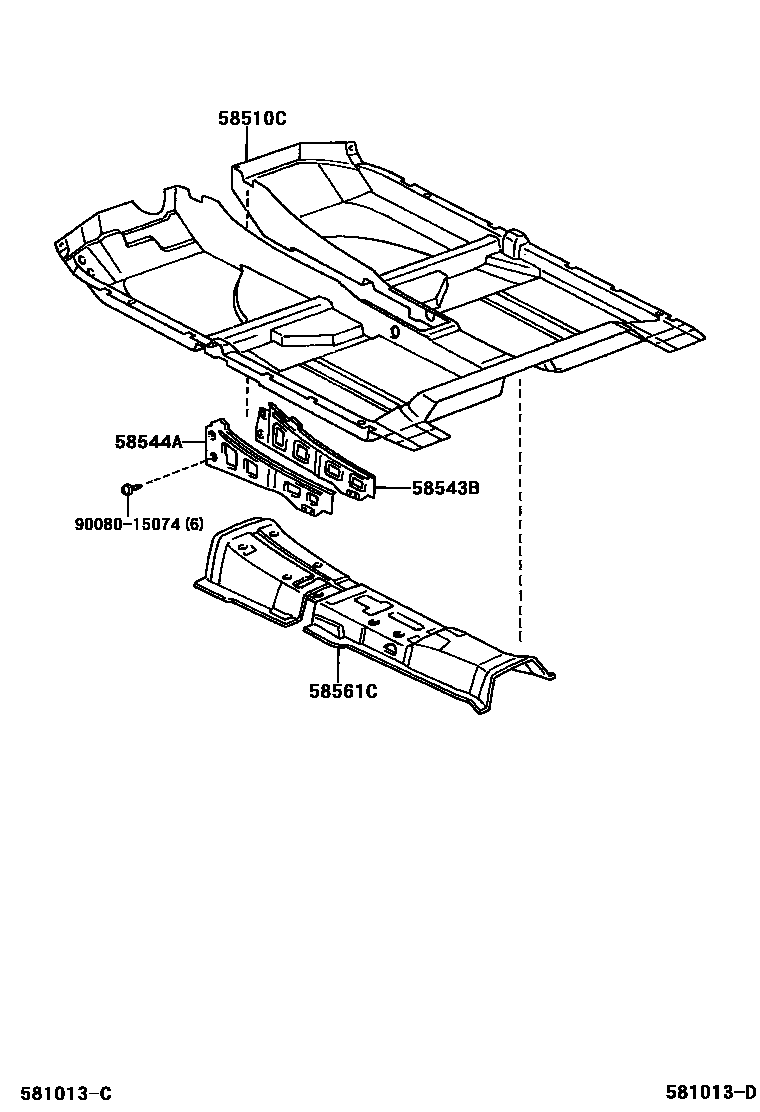

Parts diagram

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-AC040-A0i199908-200206

IVORY,TRIM0#

main58510-AC040-A0i200206-200501

IVORY,TRIM0#

main58510-AC040-B0i199908-200206

STONE,TRIM1#

main58510-AC040-B0i200206-200501

STONE,TRIM1#

main58510-AC040-E0i199908-200206

FAWN,TRIM4#

main58510-AC040-E0i200206-200501

FAWN,TRIM4#

58543BBRACKET, FLOOR CARPET, RH

main58543-AC030i199908-200206

main58543-AC030i200206

58544ABRACKET, FLOOR CARPET, LH

main58544-AC030i199908-200206

main58544-AC030i200206

58561CSILENCER, FRONT FLOOR, NO.1

main58561-07010i¥14,600199908-200206

main58561-07010i¥14,600200206

9008015074

main90080-15074¥60

5 parts on this diagram · 1 diagram in section
