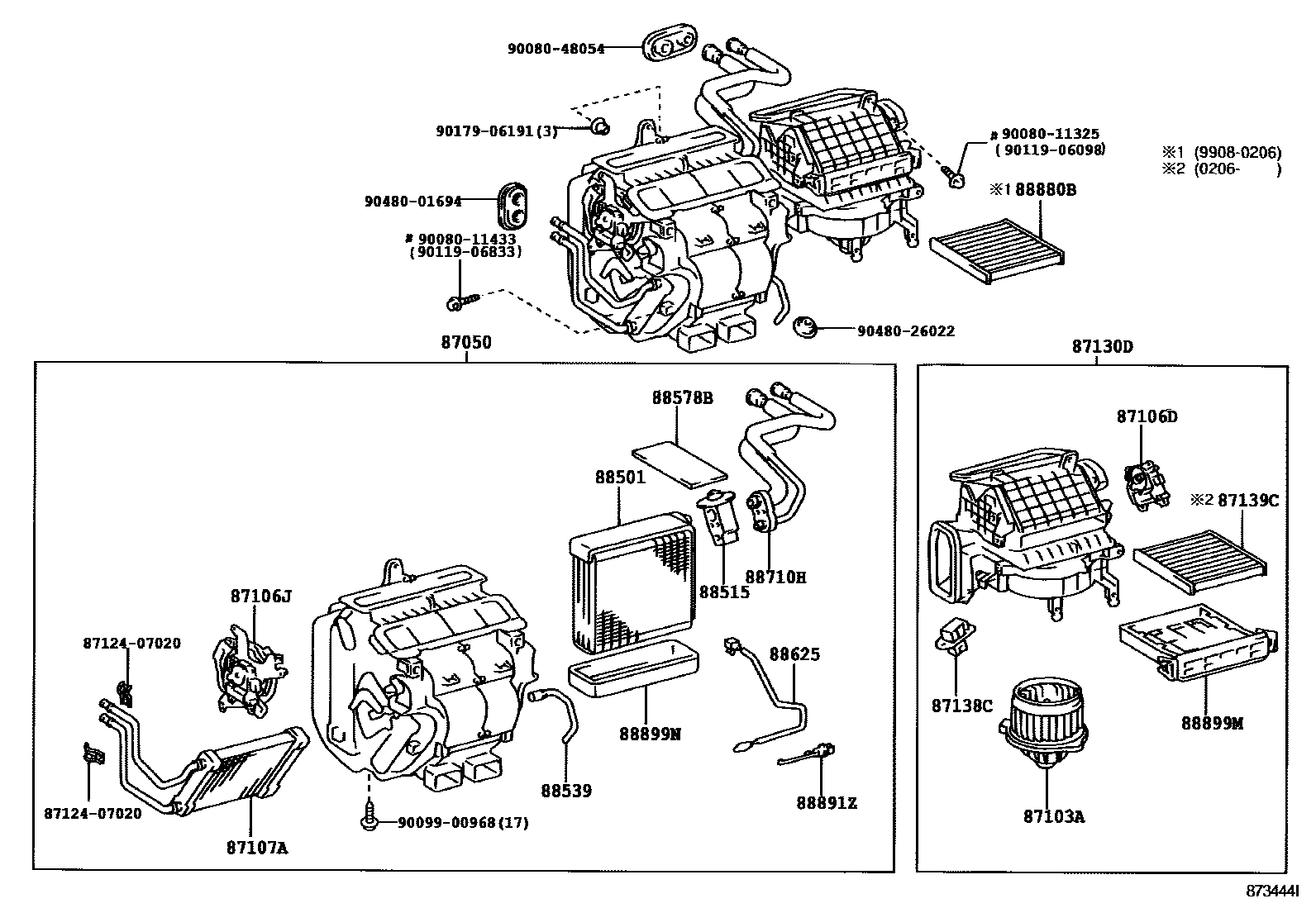

Toyota AVALON — HEATING & AIR CONDITIONING - COOLER UNIT
87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN
87106DSERVO SUB-ASSY, DAMPER, NO.1
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87138CRESISTOR, BLOWER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88539HOSE, COOLER UNIT DRAIN, NO.1
88578BPACKING, COOLING UNIT, NO.1
sub88578-41030
88625THERMISTOR, COOLER, NO.1
88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER
88880BFILTER ASSY, CLEAN AIR
88899MPLATE, COVER(FOR AIR FILTER)
88899NPLATE, COVER
8712407020CLAMP, HEATER
main87124-07020
9008011325
main90080-11325
9008011433
main90080-11433
9008048054
9009900968
main90099-00968
9011906098
9011906833
9017906191
9048001694
main90480-01694
9048026022
