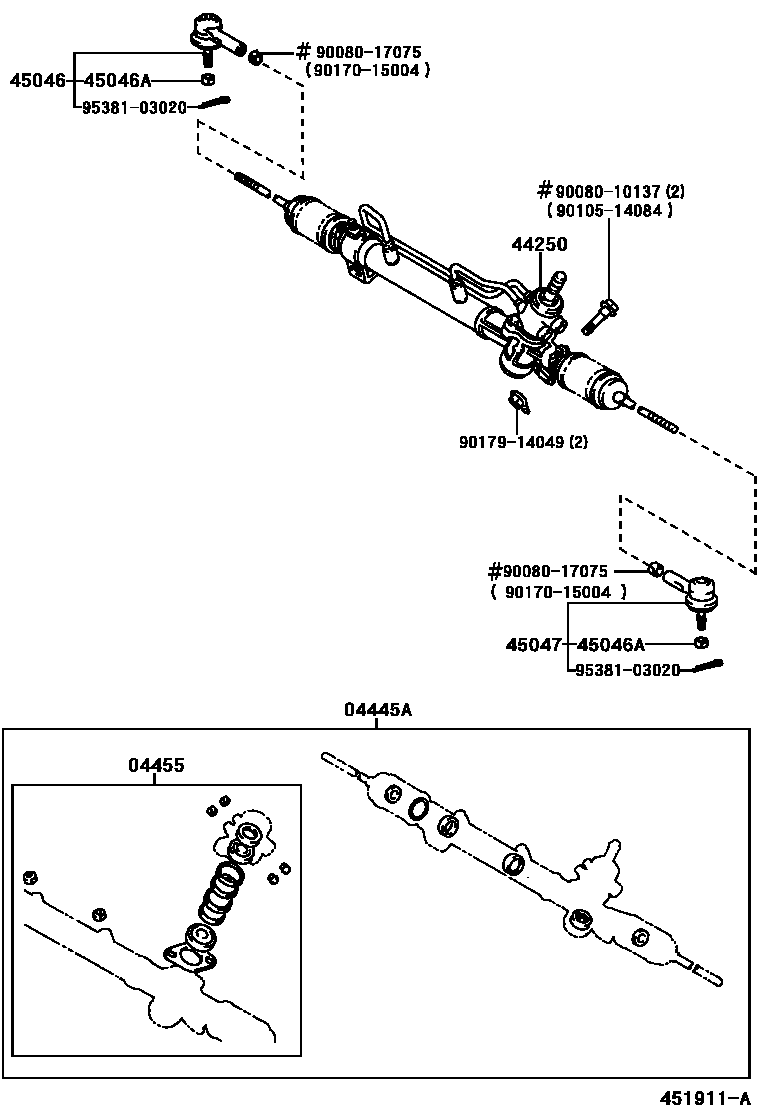

Toyota AVALON — FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-07020iMCX20¥6,200199908-200206

sub04445-07040¥6,200

main04445-07040iMCX20¥6,200200206-200501

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-07010iMCX20¥1,950199908-200501

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-07071iMCX20199908-200307

sub44250-07072

main44250-07072iMCX20200307

45046END SUB-ASSY, TIE ROD, RH

main45046-09020iMCX20199908-200210

main45046-09020iMCX20200210

(L)

main45046-29255iMCX20¥3,540200210

(J)

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCX20¥130199908-200206

45047END SUB-ASSY, TIE ROD, LH

main45046-09020iMCX20199908-200210

main45046-09020iMCX20200210

(L)

main45046-29255iMCX20¥3,540200210

(J)

9008010137

main90080-10137

9008017075

main90080-17075¥180

9010514084

main90105-14084¥520

9017015004

main90170-15004¥160

9017914049

main90179-14049¥260

9538103020

main95381-03020¥90

12 parts on this diagram · 2 diagrams in section
