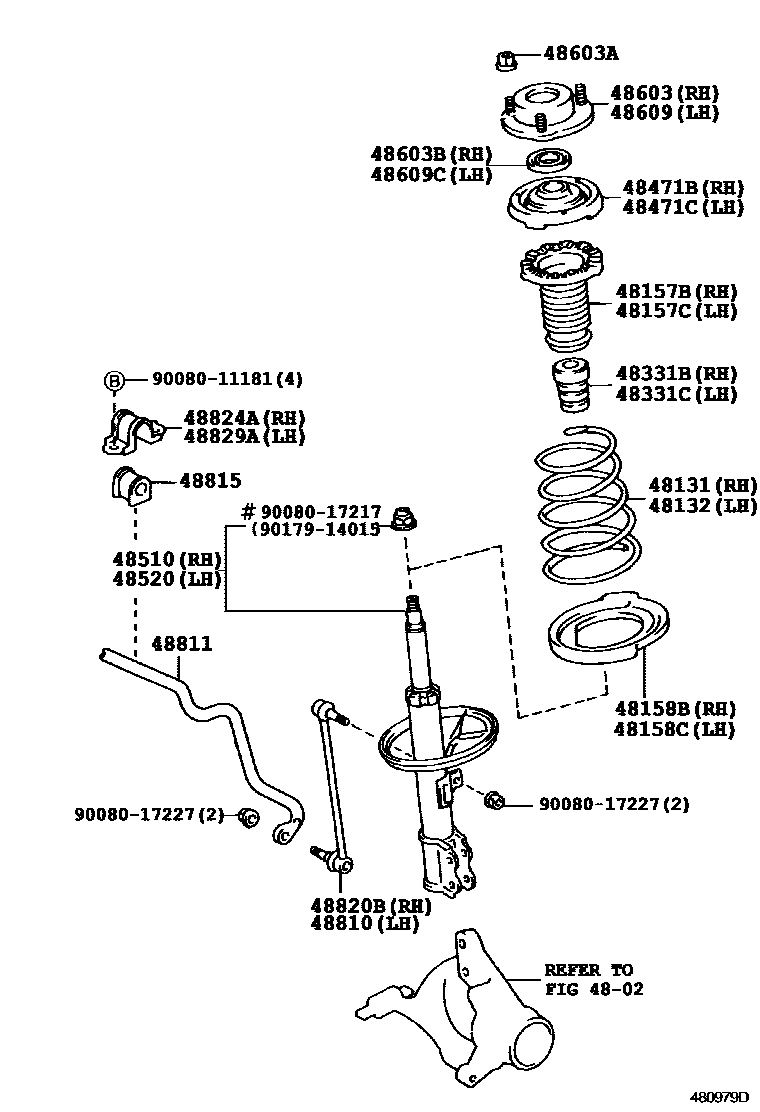

Toyota AVALON — FRONT SPRING & SHOCK ABSORBER

Parts diagram
4802
48131SPRING, FRONT COIL, RH
main48131-07060i199908-200306
main48131-07061i200306-200405
main48131-07062i200406-200501
sub48131-07061
48132SPRING, FRONT COIL, LH
main48131-07060i199908-200306
main48131-07061i200306-200405
main48131-07062i200406-200501
sub48131-07061
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-07010i199908-200307
main48157-07011i200307
sub48157-07012
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-07010i199908-200307
main48157-07011i200307
sub48157-07012
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-07010i¥1,430199908-200306
main48158-33031i¥1,550200306-200501
(J)
main48158-AA030i200306-200501
(L)
sub48158-33031¥1,550
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-07010i¥1,430199908-200306
main48158-33031i¥1,550200306-200501
(J)
main48158-AA030i200306-200501
(L)
sub48158-33031¥1,550
48331BBUMPER, FRONT SPRING, RH
main48331-06011i¥980199908-200206
48331CBUMPER, FRONT SPRING, LH
main48331-06011i¥980199908-200206
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48471-06030i200112-200404
sub48471-0E010
sub48471-AA010¥2,840
main48471-41010i¥2,370199908-200112
main48471-AA010i¥2,840200404-200501
sub48471-AA011¥1,600
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48471-06030i200112-200404
sub48471-0E010
sub48471-AA010¥2,840
main48471-41010i¥2,370199908-200112
main48471-AA010i¥2,840200404-200501
sub48471-AA011¥1,600
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-09360i¥24,600199908-200306
MARK 48510-07050
main48510-09980i200306-200501
MARK 48510-07051
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-09300i¥24,600199908-200306
MARK 48520-07050
main48520-09850i200306-200501
MARK 48520-07051
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48603-06011i¥3,080199908-200206
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
main90080-17225i200306
main90178-10008i¥100199908-200107
main90178-10018i¥170200107-200306
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
main90080-36070i199908-200501
(L)
sub90903-63014¥2,110
main90903-63002i¥2,680199908-200501
(J)
sub90903-63014¥2,110
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-06061i¥3,080199908-200206
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
main90080-36070i199908-200501
(L)
sub90903-63014¥2,110
main90903-63002i¥2,680199908-200501
(J)
sub90903-63014¥2,110
48810LINK ASSY, FRONT STABILIZER, LH
main48810-06030i¥5,800199908-200206
48811BAR, STABILIZER, FRONT
main48811-AC020i¥9,800199908-200206
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-06050i199908-200206
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-06030i¥5,800199908-200206
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-07010i¥1,010199908-200206
sub48824-33020¥340
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-07010i¥1,010199908-200206
sub48824-33020¥340
9008011181
main90080-11181
9008017217
main90080-17217
9008017227
main90080-17227
9017914015
main90179-14015¥130

28 parts on this diagram · 1 diagram in section
