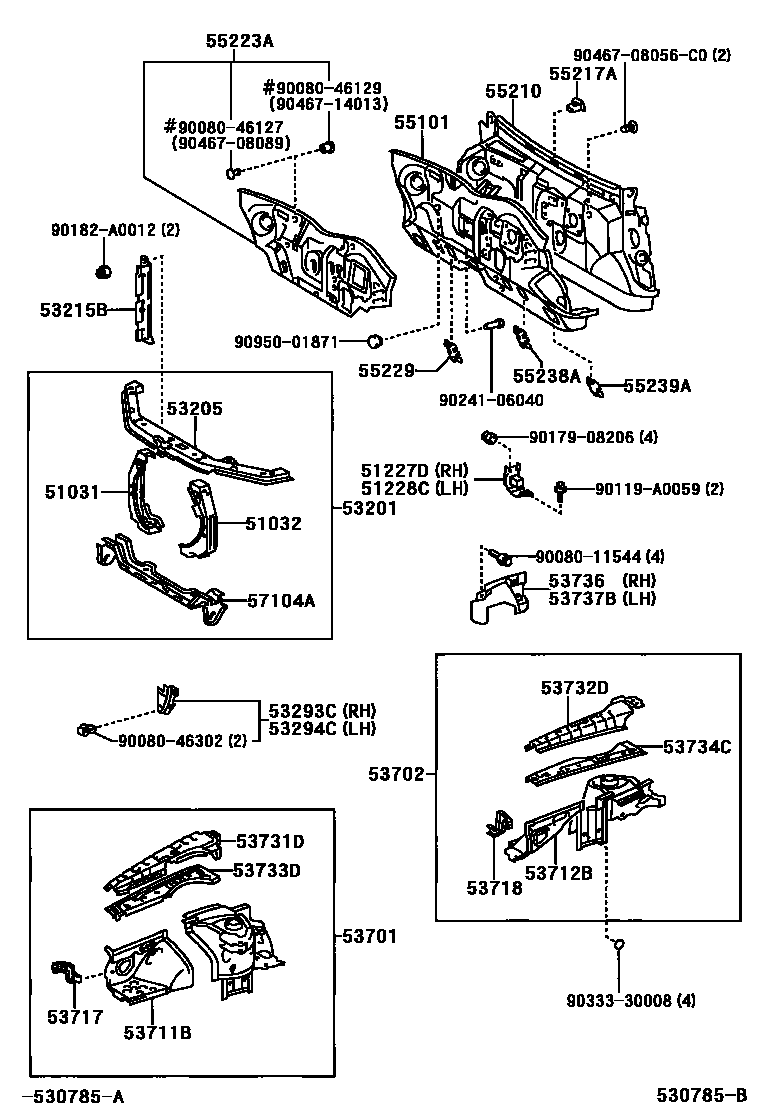

Toyota AVALON — FRONT FENDER APRON & DASH PANEL

51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-07020iMCX20¥6,200199908-200206

51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH

main51032-07020iMCX20¥6,200199908-200206

51227DWEIGHT, FRONT SUSPENSION MEMBER DAMPER, RH

main51227-33020iMCX20¥8,700199908-200206

51228CPLATE, FRONT SUSPENSION MEMBER

main51228-33010iMCX20¥7,800199908-200206

53201SUPPORT SUB-ASSY, RADIATOR

main53201-07902iMCX20¥43,300199908-200501

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-07030iMCX20¥21,200199908-200206

53215BSUPPORT, HOOD LOCK

main53215-07020iMCX20¥2,120199908-200501

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-07010iMCX20¥1,360199908-200206

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-07010iMCX20¥1,220199908-200206

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-07010iMCX20¥38,000199908-200206

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-07010iMCX20¥38,000199908-200206

53711BAPRON, FRONT FENDER, FRONT RH

main53711-07010iMCX20¥6,100199908-200206

53712BAPRON, FRONT FENDER, FRONT LH

main53712-07010iMCX20¥6,100199908-200206

53717PLATE, FENDER APRON, RH

main53717-07010iMCX20¥840199908-200206

53718PLATE, FENDER APRON, LH

main53718-07010iMCX20¥900199908-200206

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-07010iMCX20¥6,700199908-200206

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-07010iMCX20¥6,700199908-200206

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-07010iMCX20¥3,230199908-200206

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-07010iMCX20¥3,230199908-200206

53736SEAL, FRONT FENDER APRON, RH

main53736-08010iMCX20¥3,350199908-200206

53737BSEAL, FRONT FENDER APRON, LH

main53737-08010iMCX20¥3,350199908-200206

55101PANEL SUB-ASSY, DASH

main55101-07060iMCX20199908-200501

55210INSULATOR ASSY, DASH PANEL

main55210-07010iMCX20199908-200205

sub55210-07011

main55210-07011iMCX20200205-200206

55217ARETAINER, DASH PANEL SILENCER

main55217-07010iMCX20¥220199908-200206

55223AINSULATOR, DASH PANEL, OUTER

main55223-07010iMCX20199908-200206

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-33010iMCX20¥780199908-200501

55238APLATE, DASH PANEL INSULATOR, NO.2

main55238-33010iMCX20¥820199908-200501

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33010iMCX20¥620199908-200501

sub55239-33020¥490

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-07010iMCX20199908-200206

9008011544

main90080-11544

9008046127

main90080-46127¥60

9008046129

main90080-46129

9008046302

main90080-46302¥130

90119A0059

main90119-A0059

9017908206

main90179-08206¥90

90182A0012

main90182-A0012¥60

9024106040

main90241-06040¥100

9033330008

main90333-30008¥70

9046708056C0

main90467-08056C0

9046708089

main90467-08089¥140

9046714013

main90467-14013¥160

9095001871

main90950-01871¥100

42 parts on this diagram · 1 diagram in section
