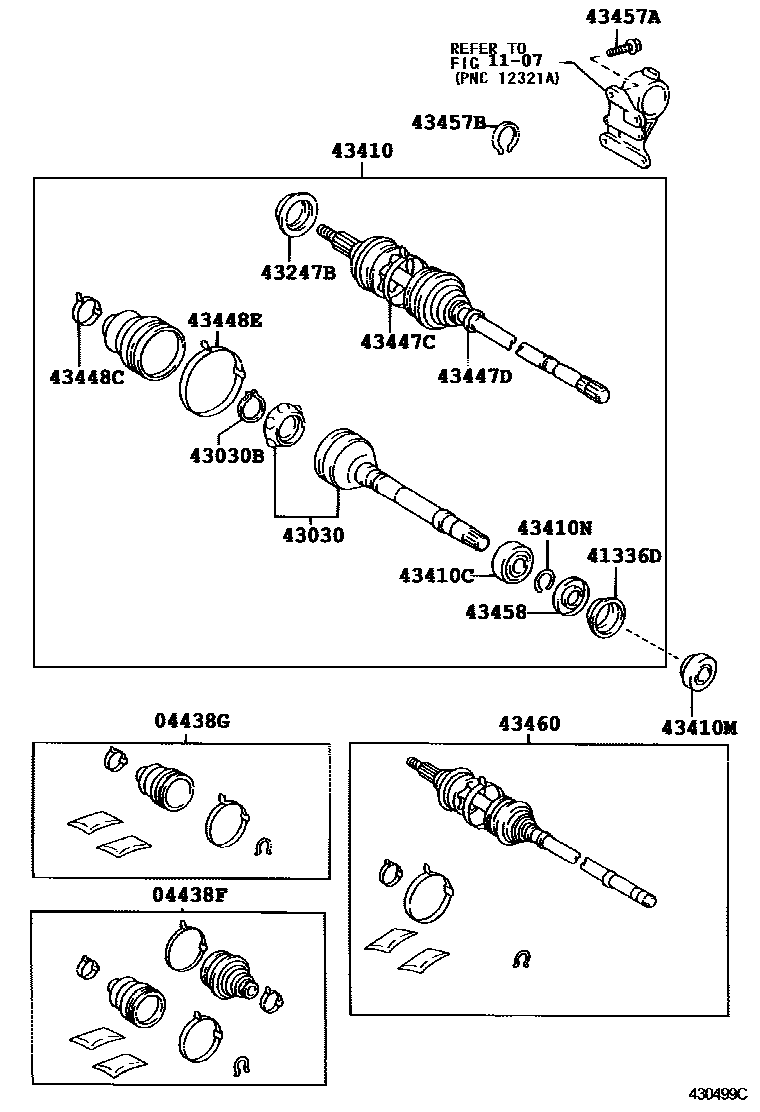

Toyota AVALON — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-07040iMCX20199908-200501

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-07030iMCX20199908-200501

1107

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iMCX20¥890199908-200206

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06040iMCX20¥40,500199908-200206

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90080-52076iMCX20199908-200206

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010iMCX20¥2,920199908-200501

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-07040iMCX20199908-200206

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41002iMCX20¥2,750199911-200408

sub90363-41003¥2,750

main90363-41003iMCX20¥2,750200409-200501

main90369-41001iMCX20¥3,190199908-199911

sub90363-41002¥2,750

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40010iMCX20¥400199908-200012

sub90311-40028¥400

main90311-40028iMCX20¥400200012-200501

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iMCX20¥140199908-200206

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04030iMCX20¥190199908-200206

ID=33.7

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-04040iMCX20¥440199908-200206

ID=99.8

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0C020iMCX20¥310199908-200206

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0C010iMCX20¥440199908-200206

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iMCX20¥200199908-200206

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002iMCX20¥160199908-200206

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iMCX20¥650199908-200206

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09620iMCX20199908-200501

19 parts on this diagram · 2 diagrams in section
