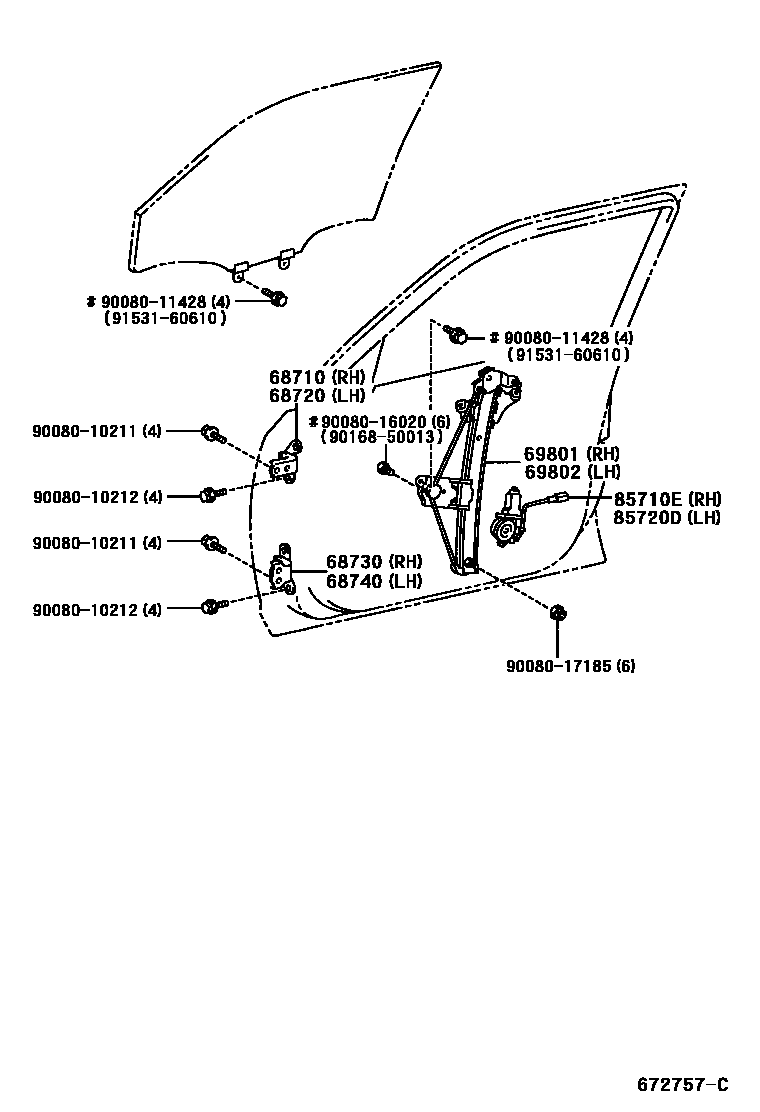

Toyota AVALON — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-AC010iMCX20¥3,600199908-200501

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-AC010iMCX20¥3,600199908-200501

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iMCX20¥2,470199908-200501

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iMCX20¥2,470199908-200501

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-AC010iMCX20¥7,500199908-200206

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-AC010iMCX20¥7,500199908-200206

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AC010iMCX20199908-200206

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AC020iMCX20199908-200206

9008010211

main90080-10211¥130

9008010212

main90080-10212¥130

9008011428

main90080-11428¥60

9008016020

main90080-16020

9008017185

main90080-17185

9016850013

main90168-50013¥170

9153160610

main91531-60610¥110

15 parts on this diagram · 1 diagram in section
