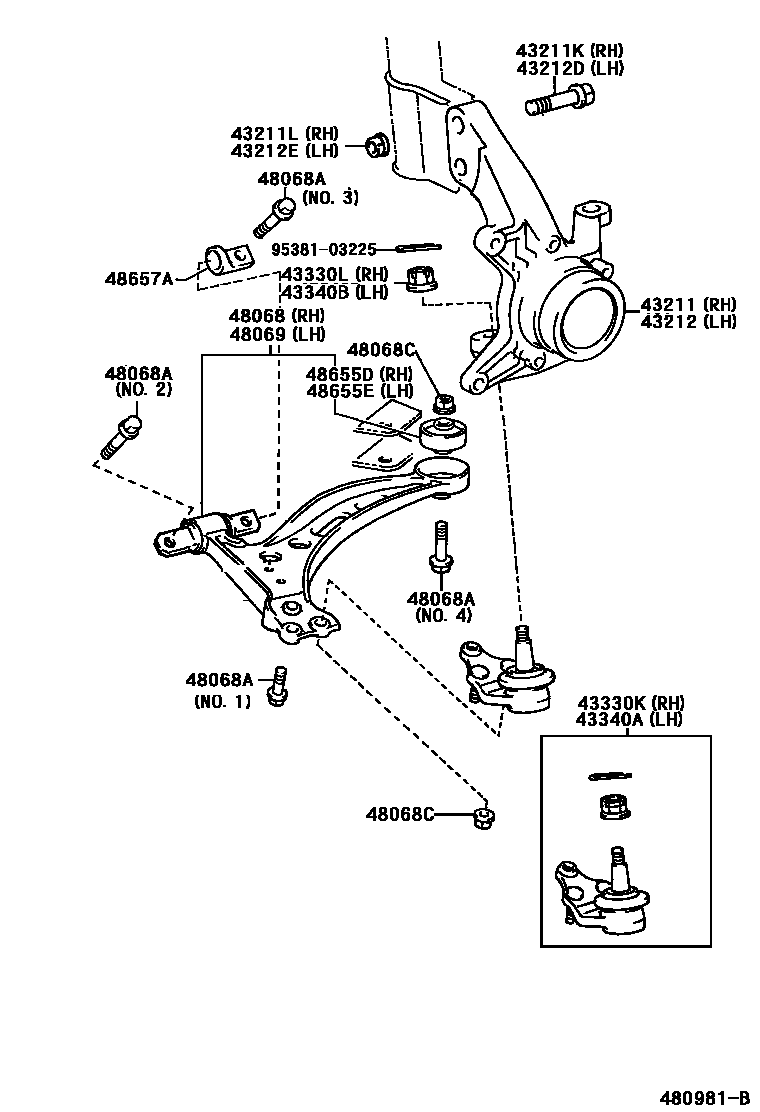

Toyota AVALON — FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
(J)
43211KBOLT (FOR STEERING KNUCKLE RH)
OD=17
OD=15.9
OD=15
OD=14
OD=17
OD=15.9
OD=15
OD=14
OD=17
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
(L)
43212DBOLT (FOR STEERING KNUCKLE LH)
OD=17
OD=15.9
OD=15
OD=14
OD=17
OD=15.9
OD=15
OD=14
OD=17
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
NO.1,(L)
NO.3,(L)
NO.2,(L)
NO.4,(L)
NO.3,4,(L)
NO.1
NO.1,(J)
NO.2,(J)
NO.3,4,(J)
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
BODY SIDE
BALL JOINT SIDE
BALL JOINT SIDE
BODY SIDE
BODY SIDE
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48655DBUSH, FRONT LOWER ARM, NO.2 RH
48655EBUSH, FRONT LOWER ARM, NO.2 LH
48657ASTOPPER, FRONT LOWER ARM BUSH
9538103225
18 parts on this diagram · 1 diagram in section
