Toyota AVALON — ENGINE OVERHAUL GASKET KIT

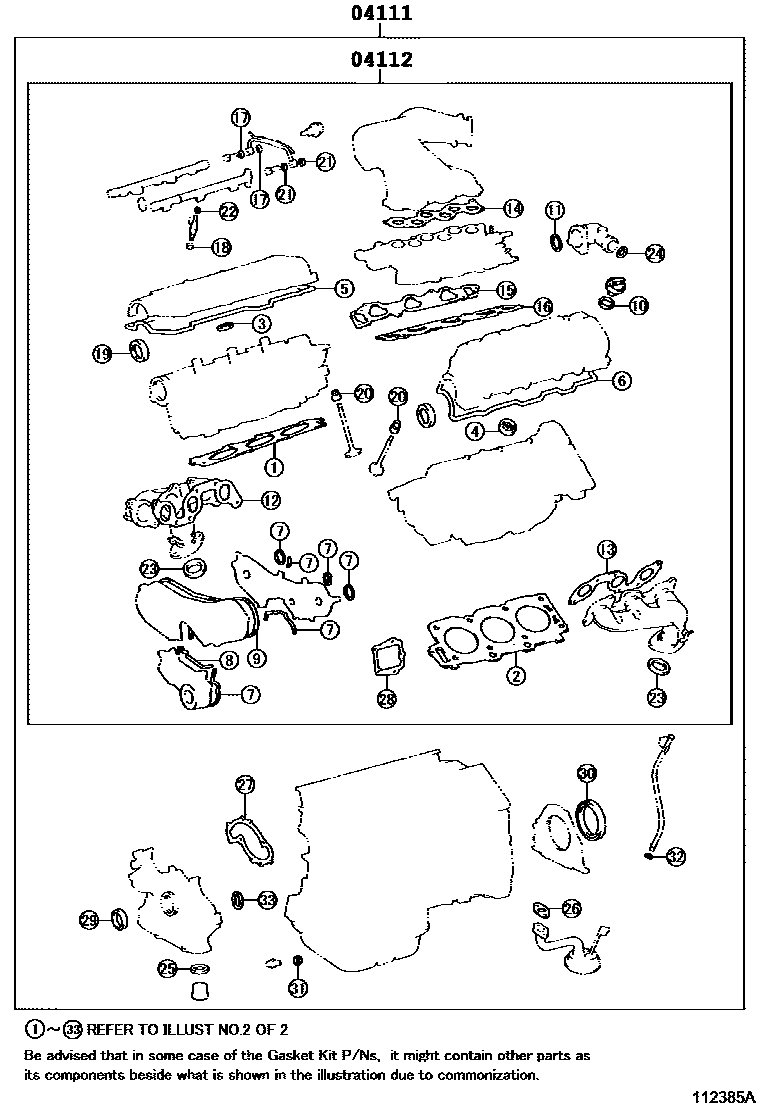

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0A030i199908-200306

main04111-20380i200312-200408

sub04111-20510¥61,900

main04111-20381i200408-200501

sub04111-20510¥61,900

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0A030i199908-200306

main04112-20350i200312-200408

sub04112-20450¥45,100

main04112-20351i200408-200501

sub04112-20450¥45,100

2 parts on this diagram · 4 diagrams in section
