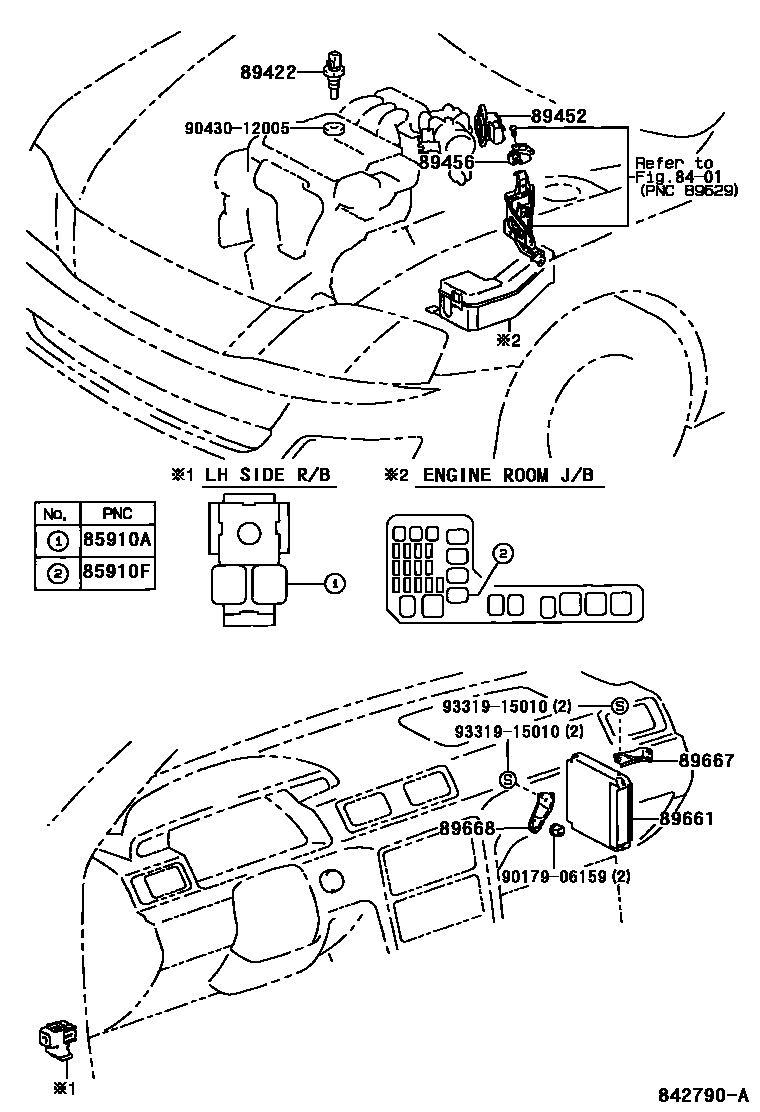

Toyota AVALON — ELECTRONIC FUEL INJECTION SYSTEM

8401

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90084-98031iMCX20¥4,710200206-200501

PART NUMBER LABEL=90084-98031

main90084-98031iMCX20¥4,710199908-200206

PART NUMBER LABEL=90084-98031

main90987-02012iMCX20¥2,930199908-200206

PART NUMBER LABEL=90987-02012

main90987-02012iMCX20¥2,930200206-200501

PART NUMBER LABEL=90987-02012

85910FRELAY, COMPUTER (FOR EFI)

main90084-98031iMCX20¥4,710200206-200501

PART NUMBER LABEL=90084-98031

main90084-98031iMCX20¥4,710199908-200206

PART NUMBER LABEL=90084-98031

main90987-02012iMCX20¥2,930199908-200206

PART NUMBER LABEL=90987-02012

main90987-02012iMCX20¥2,930200206-200501

PART NUMBER LABEL=90987-02012

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iMCX20¥2,670199908-200206

main89422-35010iMCX20¥2,670200206-200501

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-06020iMCX20¥4,970199908-200206

(L)

main89452-33030iMCX20¥2,690200206-200501

89456RESISTOR, VARIABLE

main89456-30010iMCX20¥6,400199908-200107

89661COMPUTER, ENGINE CONTROL

main89661-07290iMCX20199908-200008

main89661-07330iMCX20200008-200107

main89661-07360iMCX20200107-200206

main89661-07380iMCX20200206-200501

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-07060iMCX20199908-200206

main89667-07060iMCX20200206-200501

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-07040iMCX20199908-200206

main89668-07040iMCX20200206-200501

9017906159

main90179-06159¥70

9043012005

main90430-12005¥110

9331915010

main93319-15010¥70

12 parts on this diagram · 1 diagram in section
