Toyota AVALON — COWL PANEL & WINDSHIELD GLASS

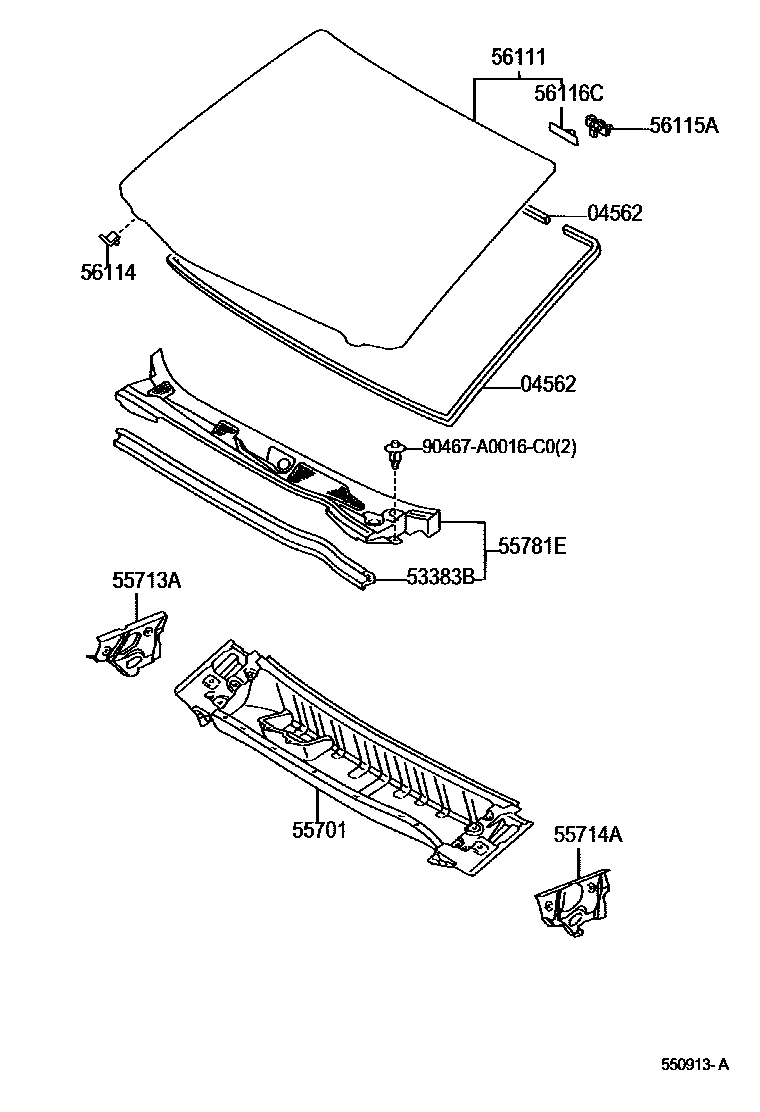

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main56117-AC010i¥1,420199908-200102

L=3310

sub90998-91001¥1,070

main56118-AC010i¥620199908-200102

L=724

sub90998-91002¥350

main90998-91001i¥1,070199908-200204

L=3500

sub90998-91004¥930

main90998-91002i¥350199908-200204

L=750

sub90998-91003¥360

main90998-91003i¥360200204-200501

L=750

main90998-91004i¥930200204-200501

L=3500

53383BSEAL, HOOD TO COWL TOP

main53383-07010i199908-200206

55701PANEL SUB-ASSY, COWL

main55700-07040i199908-200501

55713APANEL, COWL TOP SIDE, RH

main55713-07030i¥2,130199908-200501

55714APANEL, COWL TOP SIDE, LH

main55714-07030i¥2,130199908-200501

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55781-07010i199908-200206

56111GLASS, WINDSHIELD

main56101-AC110i199908-200501

*UVCTT,T=4.7

56114RETAINER, WINDSHIELD GLASS

main56114-22050i¥320199908-200501

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010i¥160199908-200501

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i¥120199908-200501

90467A0016C0

main90467-A0016C0

11 parts on this diagram · 1 diagram in section
