Toyota AVALON — CENTER STOP LAMP

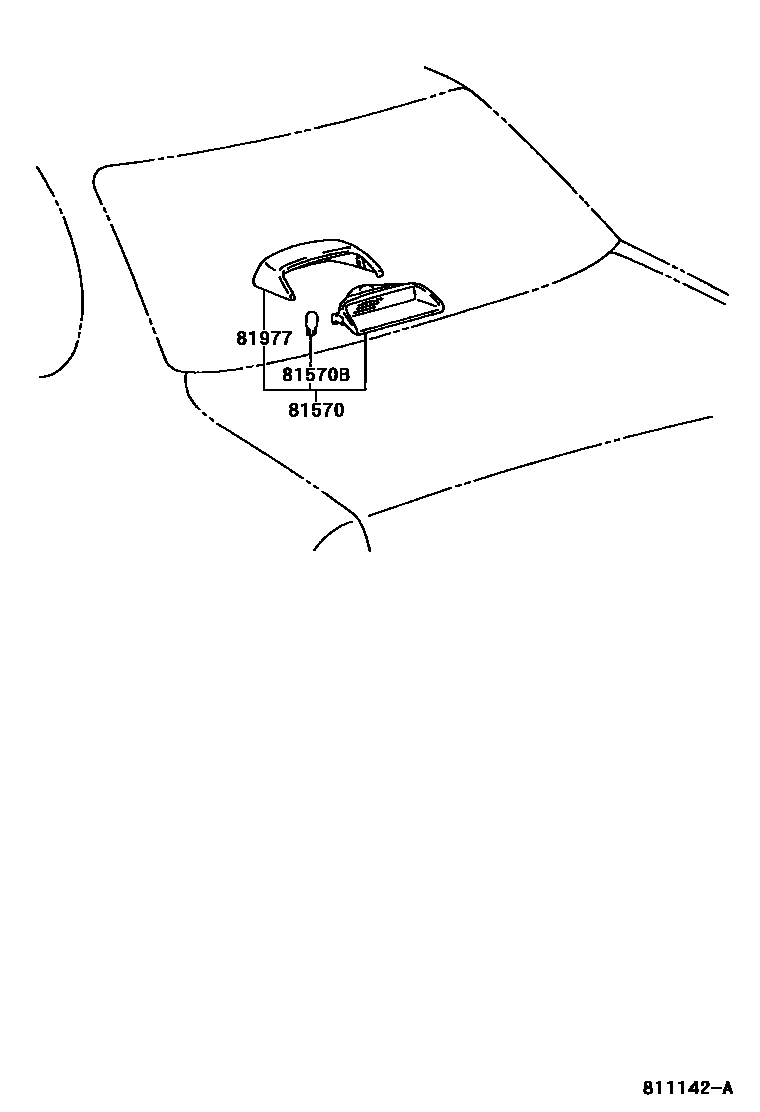

Parts diagram
81570LAMP ASSY, CENTER STOP
main81570-AC020-A0i199908-200501
IVORY,TRIM0#
sub81570-AC020¥6,400
main81570-AC020-B1i199908-200501
STONE,TRIM1#
sub81570-AC020¥6,400
main81570-AC020-E5i199908-200501
FAWN,TRIM4#
sub81570-AC020¥6,400
81570BBULB (FOR CENTER STOP LAMP)
main90981-11039i¥200199908-200206
12V 16W
sub90981-11059¥200
main90981-11059i¥200200206-200501
12V 16W
81977COVER, CENTER STOP LAMP
main81977-AC010-A0i199908-200501
IVORY,TRIM0#
sub81977-AC010¥2,880
main81977-AC010-B1i199908-200501
STONE,TRIM1#
sub81977-AC010¥2,880
main81977-AC010-E5i199908-200501
FAWN,TRIM4#
sub81977-AC010¥2,880

3 parts on this diagram · 1 diagram in section
