Toyota AVALON — CAUTION PLATE (EXTERIOR & INTERIOR)

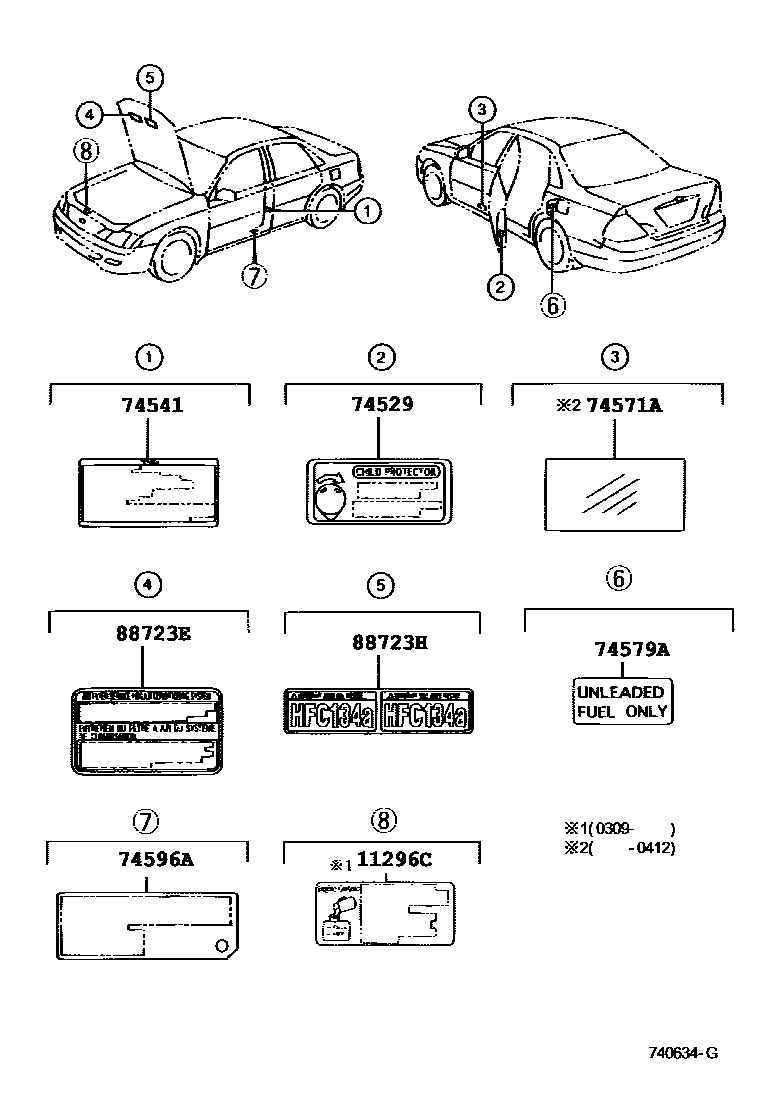

Parts diagram

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i¥190200309

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010i¥120199908-200107

main69339-AA020i200107-200206

74541PLATE, TIRE PRESSURE CAUTION

main42661-07030i¥200199908-200501

74571AFILM, LABEL COVER

main74571-03020i199908-200412

74579ALABEL, UNLEADED FUEL INFORMATION

main74559-14050i¥100200110-200206

74596ALABEL, SIDE AIRBAG CAUTION

main74596-30050i¥290199908-200206

88723ELABEL, COOLER SERVICE CAUTION

main87529-0E010i200312

main87529-50010i¥230199908-200312

88723HLABEL, COOLER SERVICE CAUTION

main88723-07020i199908-200206

8 parts on this diagram · 1 diagram in section
