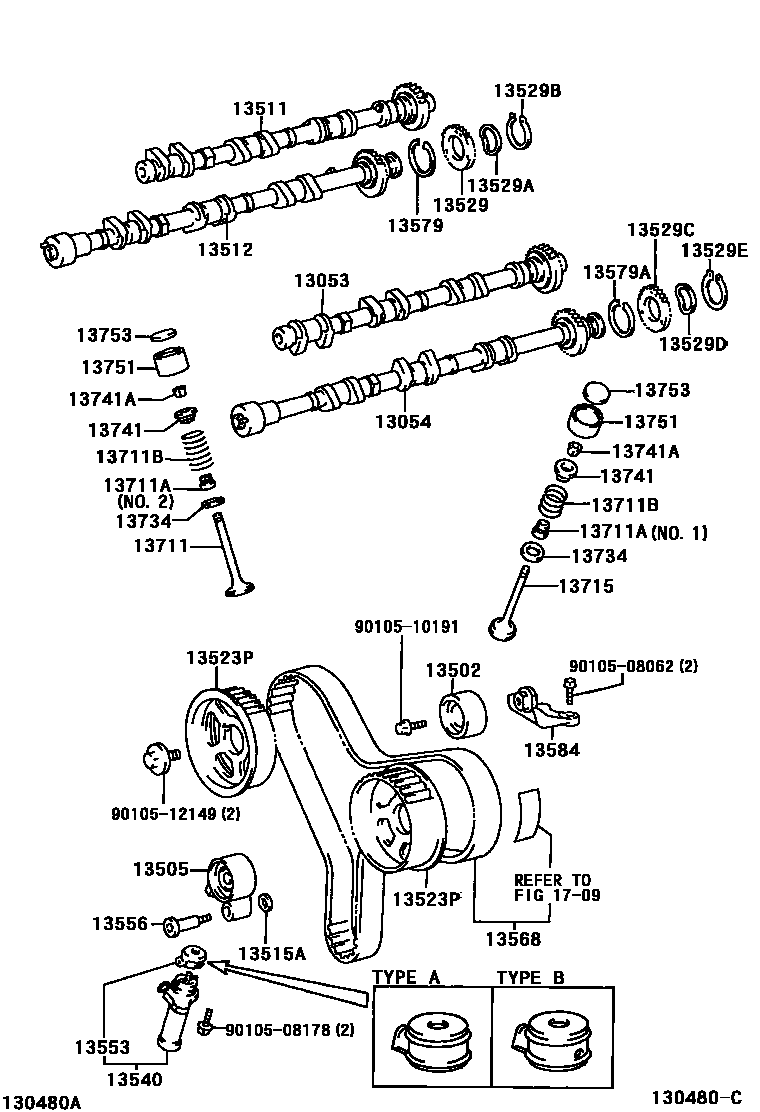

Toyota AVALON — CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
(L)
(J)
13054CAMSHAFT SUB-ASSY, NO.4
(L)
(J)
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
(L)
(J)
13512CAMSHAFT, NO.2
(L)
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13523PPULLEY, CAMSHAFT TIMING
(J)
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13540TENSIONER ASSY, CHAIN, NO.1
13553COVER, CHAIN TENSIONER DUST
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
13584BRACKET, TIMING BELT IDLER
13711VALVE, INTAKE
(L)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.1,(L)
NO.2,(L)
NO.2,(L)
NO.1,(L)
NO.1,(J)
NO.2,(J)
NO.2,(J)
NO.1,(J)
NO.1,(J)
13711BSPRING, COMPRESSION(FOR INNER)
(L)
(J)
13715VALVE, EXHAUST
(L)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.50
T=2.525
T=2.55
T=2.575
T=2.60
T=2.625
T=2.65
T=2.675
T=2.70
T=2.725
T=2.75
T=2.775
T=2.80
T=2.825
T=2.85
T=2.875
T=2.90
T=2.925
T=2.95
T=2.975
T=3.00
T=3.025
T=3.05
T=3.075
T=3.10
T=3.125
T=3.15
T=3.175
T=3.20
T=3.225
T=3.25
T=3.275
T=3.30
1709
9010508062
9010508178
9010510191
9010512149
35 parts on this diagram · 1 diagram in section
