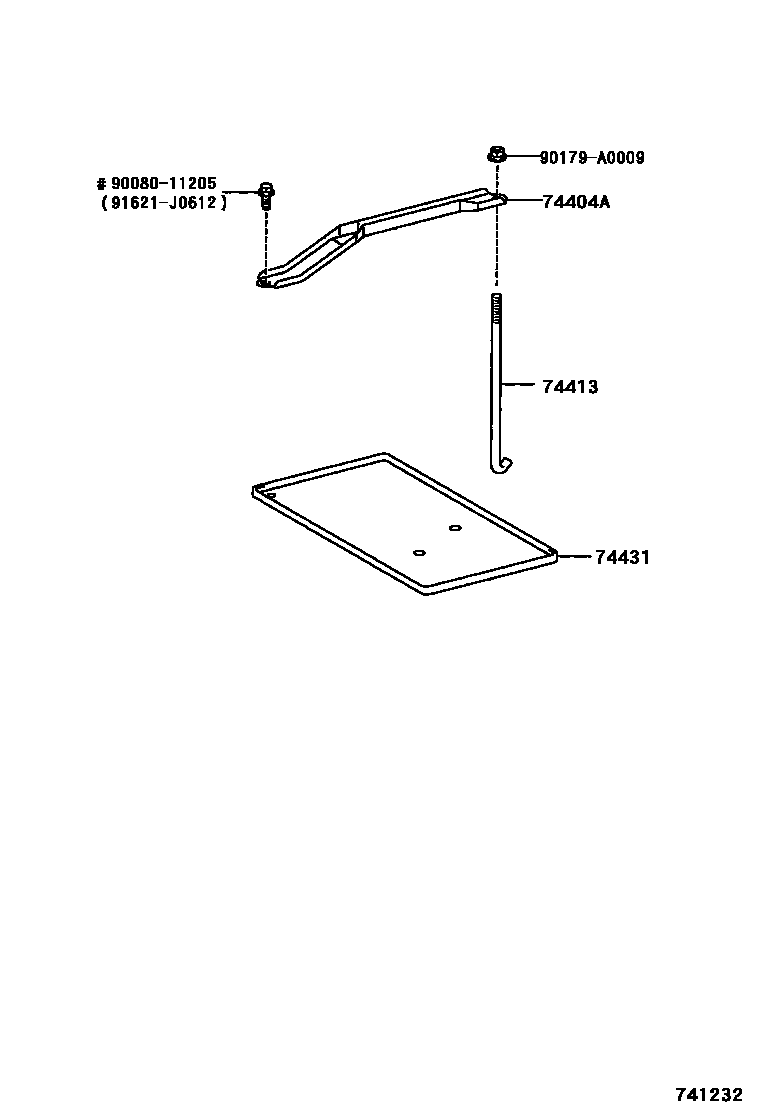

Toyota AVALON — BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-07010iMCX20¥2,910199908-200206

main74404-07010iMCX20¥2,910200206

74413BOLT, BATTERY CLAMP

main74451-06010iMCX20¥250199908-200206

sub74451-06011

main74451-06010iMCX20¥250200206

sub74451-06011

74431TRAY, BATTERY

main74431-07010iMCX20¥1,820199908-200206

main74431-07010iMCX20¥1,820200206

9008011205

main90080-11205¥90

90179A0009

main90179-A0009¥70

91621J0612

main91621-J0612¥70

6 parts on this diagram · 1 diagram in section
