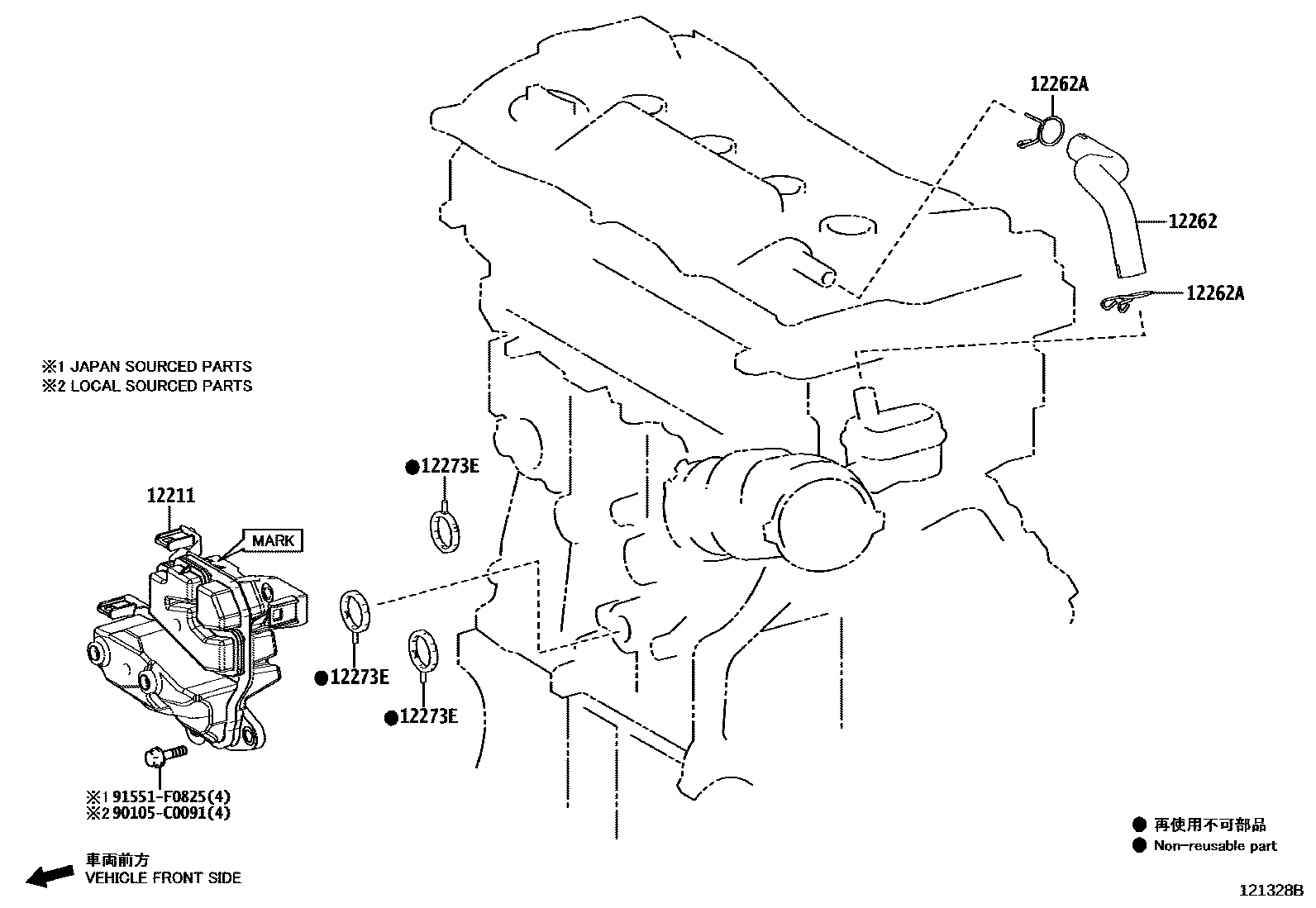

Toyota AVALON (CHINA) — VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

12211CASE, VENTILATION, NO.1

main12211-24010iM20..MXXA50¥6,200201910-202202

*132

main12211-25010iA25..AXXA50,AXXH50¥7,600201903-202007

sub12211-25011¥5,700

main12211-25011iA25..AXXH50..E¥5,700202106-202203

*636

main12211-25011iA25..AXXA50,AXXH50¥5,700202304

MARK=12211-25011

main12211-25011iA25..AXXA50;A25..AXXH50..B,G,Q¥5,700202106-202303

*633,MARK12211-25011

main12211-25011iA25..AXXH50¥5,700202008-202107

main12211-F0020iA25..AXXA50,AXXH50202304

MARK=12211-F0020

main12211-F0020iA25..AXXA50;A25..AXXH50..B,G,Q202106-202303

*633,MARK12211-F0020

main12211-F2040iM20..MXXH50;M20..MXXA50..B,E202304-202407

main12211-F2040iM20..MXXA50202106-202303

*633

main12211-F2040iM20..MXXA50201910-202106

*609

12262HOSE, VENTILATION, NO.2

main12262-24060iM20..MXXA50¥1,140201910-202407

main12262-25030iA25..AXXA50¥1,140201903-202303

main12262-25040iA25..AXXH50..E¥1,300201903-202303

main12262-25060iM20..MXXH50¥1,300202407

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM20..MXXH50;M20..MXXA50..B,E¥130201903-202407

12273EGASKET(FOR VENTILATION CASE)

main12273-24010iM20..MXXA50¥340201910-202202

*132

main12273-24010iA25..AXXH50..E¥340202106-202203

*636

main12273-24010iA25..AXXH50¥340201903-202107

main12273-F2020iA25..AXXA50,AXXH50202304-202407

main12273-F2020iM20..MXXA50201910-202106

*609

main12273-F2020iM20..MXXA50202106-202303

*633

90105C0091

main90105-C0091

91551F0825

main91551-F0825¥80

6 parts on this diagram · 4 diagrams in section
