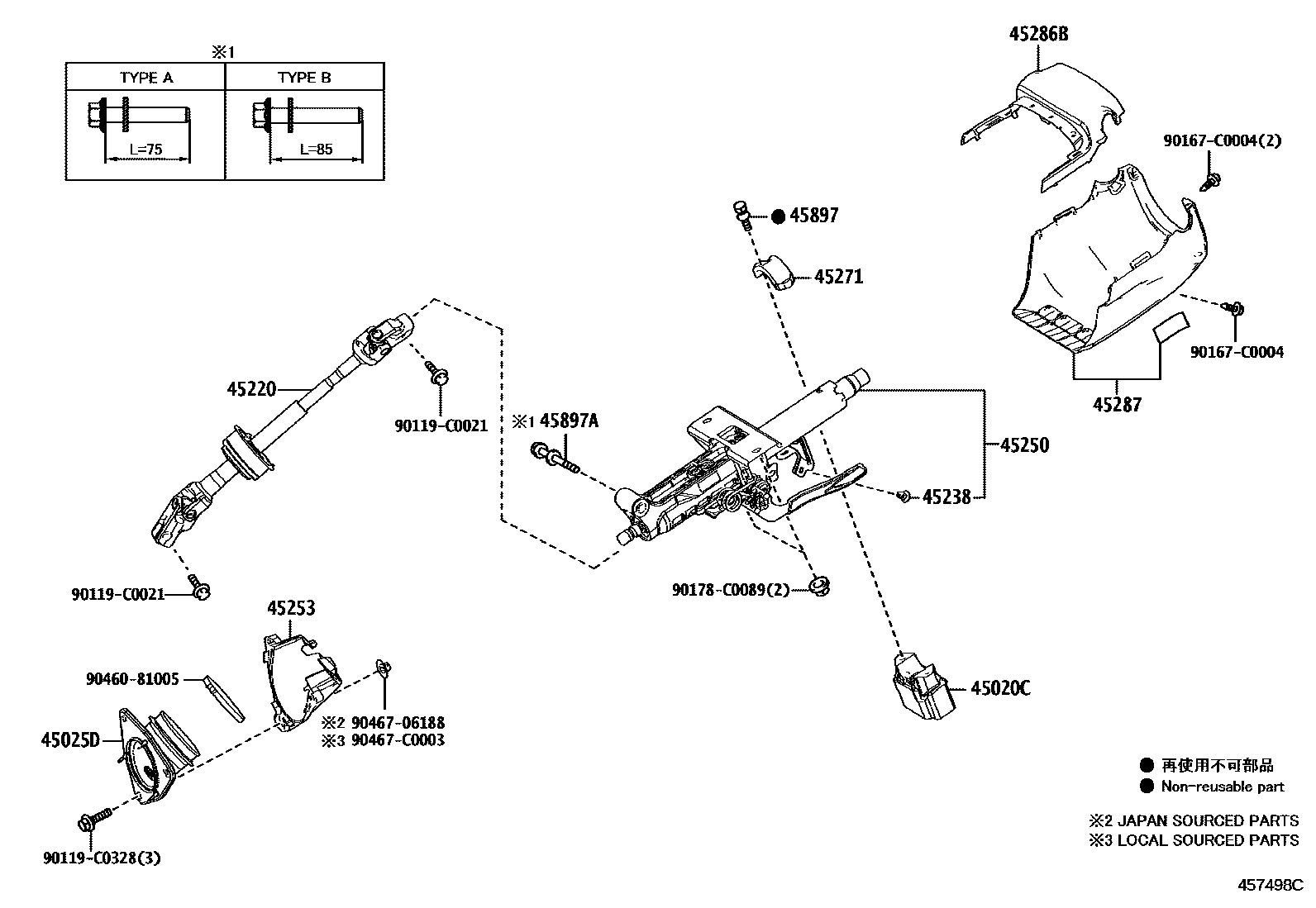

Toyota AVALON (CHINA) — STEERING COLUMN & SHAFT

0001 1MANUAL TILT STEERING 0002 1POWER TILT STEERING

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-06290iAXXA50,MXXA50201903-202303

main45020-06300iAXXH50..Q201903-202303

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06210iAXXH50201903-202407

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-06280iAXXA50,AXXH50201903-201906

sub45220-06281

main45220-06281iAXXA50,MXXA50201907-202108

sub45220-06282

main45220-06282iAXXA50,MXXA50;AXXH50..B,G,Q202108-202407

main45220-06310iAXXH52,MXXH50202407

main45220-06330iMXXA50..B,E202407

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iAXXH50..Q¥70201903-202303

main45238-52010iAXXH50..B,G;AXXA50,MXXA50¥70201903-202407

45250COLUMN ASSY, STEERING

main45250-06B81iMXXA50..B,E201903-202407

main45250-06C10iAXXH52..Q202407

main45250-0R090iMXXH50;AXXH52..G;MXXA50..B,E202407

main45250-33D50iAXXH50..Q201903-202006

sub45250-48420¥101,000

main45250-48420iAXXH50..Q¥101,000202007-202303

45253COVER, STEERING COLUMN HOLE

main45253-07050iAXXA50,MXXA50201903-202202

main45253-07060iMXXA50..B,E202203-202407

45271CLAMP, STEERING COLUMN, UPPER

main45271-0A020iAXXA50,AXXH50,MXXA50..B,E,G202203-202303

main45271-52030iAXXA50,AXXH50,MXXA50..B,E,G¥440201903-202202

45286BCOVER, STEERING COLUMN, UPR

main45286-07070-C0iMXXA50..B201903-202407

BLACK,TRIM2#,4#

main45286-07070-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main45286-07080iMXXA50..B,E;AXXH52,MXXH50202407

45287COVER, STEERING COLUMN, LWR

main45287-07090-C0iAXXA50,MXXA50201903-202407

BLACK,TRIM2#,4#

main45287-07090-C0iAXXH50..E202106-202407

BLACK,TRIM2#

main45287-07100-C0iAXXH50..Q201903-202303

BLACK,TRIM2#,4#

main45287-07110iMXXH50;AXXH52..G;MXXA50..B,E202407

main45287-07120iAXXH52..Q202407

45897BOLT, STEERING LOCK SET

main45897-12020iAXXA50,MXXA50¥210201903-202303

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iMXXA50..B,E;AXXH52,MXXH50¥190201903-202407

TYPE A:REFER ILLUST.

main90119-C0427iAXXH50..E201903-202407

TYPE B:REFER ILLUST.

90119C0021

main90119-C0021

90119C0328

main90119-C0328

90167C0004

main90167-C0004

90178C0089

main90178-C0089

9046081005

main90460-81005¥310

9046706188

main90467-06188¥160

90467C0003

main90467-C0003

18 parts on this diagram · 2 diagrams in section
