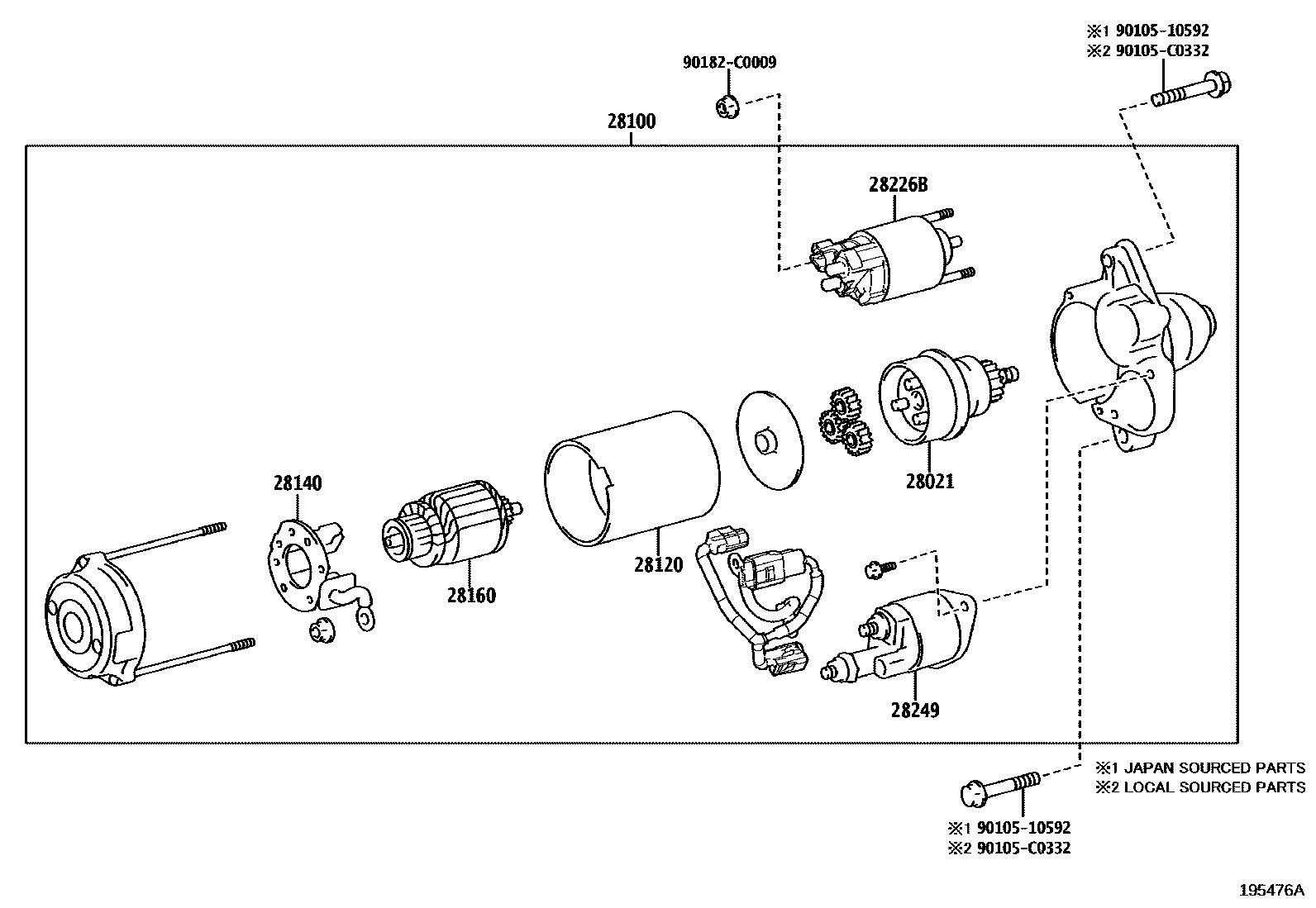

Toyota AVALON (CHINA) — STARTER

0001 112V 1.7KW 0002 112V 1.7KW 0003 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-F0020iA25,M20..AXXA50,MXXA50201903-202105

main28021-F0020iA25,M20..AXXA50,MXXA50202106-202303

main28021-F0020iM20..MXXA50..B,E202304-202407

main28021-F0020iA25..AXXA50;M20..MXXA50..G202304

main28021-F2170iM20..MXXA50..B,E202407

28100STARTER ASSY

main28100-F0020iA25,M20..AXXA50,MXXA50201903-202009

12V 1.7KW

main28100-F0090iA25..AXXA50;M20..MXXA50..G202304

12V 1.7KW

main28100-F0090iA25,M20..AXXA50,MXXA50202203-202303

12V 1.7KW

main28100-F0090iM20..MXXA50..B,E202304-202407

12V 1.7KW

main28100-F2080iA25,M20..AXXA50,MXXA50202106-202203

12V 1.7KW

main28100-F2080iA25,M20..AXXA50,MXXA50202009-202105

12V 1.7KW

main28100-F2170iM20..MXXA50..B,E202407

12V 1.2KW

28120YOKE ASSY, STARTER

main28120-F0020iA25,M20..AXXA50,MXXA50201903-202105

main28120-F0020iA25..AXXA50;M20..MXXA50..G202304

main28120-F0020iA25,M20..AXXA50,MXXA50202106-202303

main28120-F0020iM20..MXXA50..B,E202304-202407

28140HOLDER ASSY, STARTER BRUSH

main28140-0V040iA25..AXXA50;M20..MXXA50..G202304

main28140-0V040iA25,M20..AXXA50,MXXA50201903-202105

main28140-0V040iA25,M20..AXXA50,MXXA50202106-202303

main28140-0V040iM20..MXXA50..B,E202304-202407

main28140-F2170iM20..MXXA50..B,E202407

28160ARMATURE ASSY, STARTER

main28160-0S050iA25,M20..AXXA50,MXXA50201903-202009

(L)

main28160-0S050iM20..MXXA50..B,E202304-202407

main28160-0S050iA25..AXXA50;M20..MXXA50..G202304

main28160-0S050iA25,M20..AXXA50,MXXA50202009-202105

main28160-0S050iA25,M20..AXXA50,MXXA50202106-202303

main28160-37100iA25,M20..AXXA50,MXXA50¥15,700201903-202009

(J)

main28160-F2170iM20..MXXA50..B,E202407

28226BSTARTER KIT, REPAIR SERVICE

main28226-25070iA25,M20..AXXA50,MXXA50202106-202203

main28226-25070iA25,M20..AXXA50,MXXA50201903-202105

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-37100iM20..MXXA50..B,E¥7,500202304-202407

main28249-37100iA25..AXXA50;M20..MXXA50..G¥7,500202304

main28249-37100iA25,M20..AXXA50,MXXA50¥7,500201903-202012

main28249-37100iA25,M20..AXXA50,MXXA50¥7,500202106-202203

JAPAN SOURCED PARTS

main28249-37100iA25,M20..AXXA50,MXXA50¥7,500202012-202106

JAPAN SOURCED PARTS

main28249-37100iA25,M20..AXXA50,MXXA50¥7,500202203-202303

main28249-F0020iM20..MXXA50..B,E202407

main28249-F0020iA25,M20..AXXA50,MXXA50202012-202106

LOCAL SOURCED PARTS

main28249-F0020iA25,M20..AXXA50,MXXA50202106-202203

LOCAL SOURCED PARTS

9010510592

main90105-10592¥160

90105C0332

main90105-C0332

90182C0009

main90182-C0009

10 parts on this diagram · 3 diagrams in section
