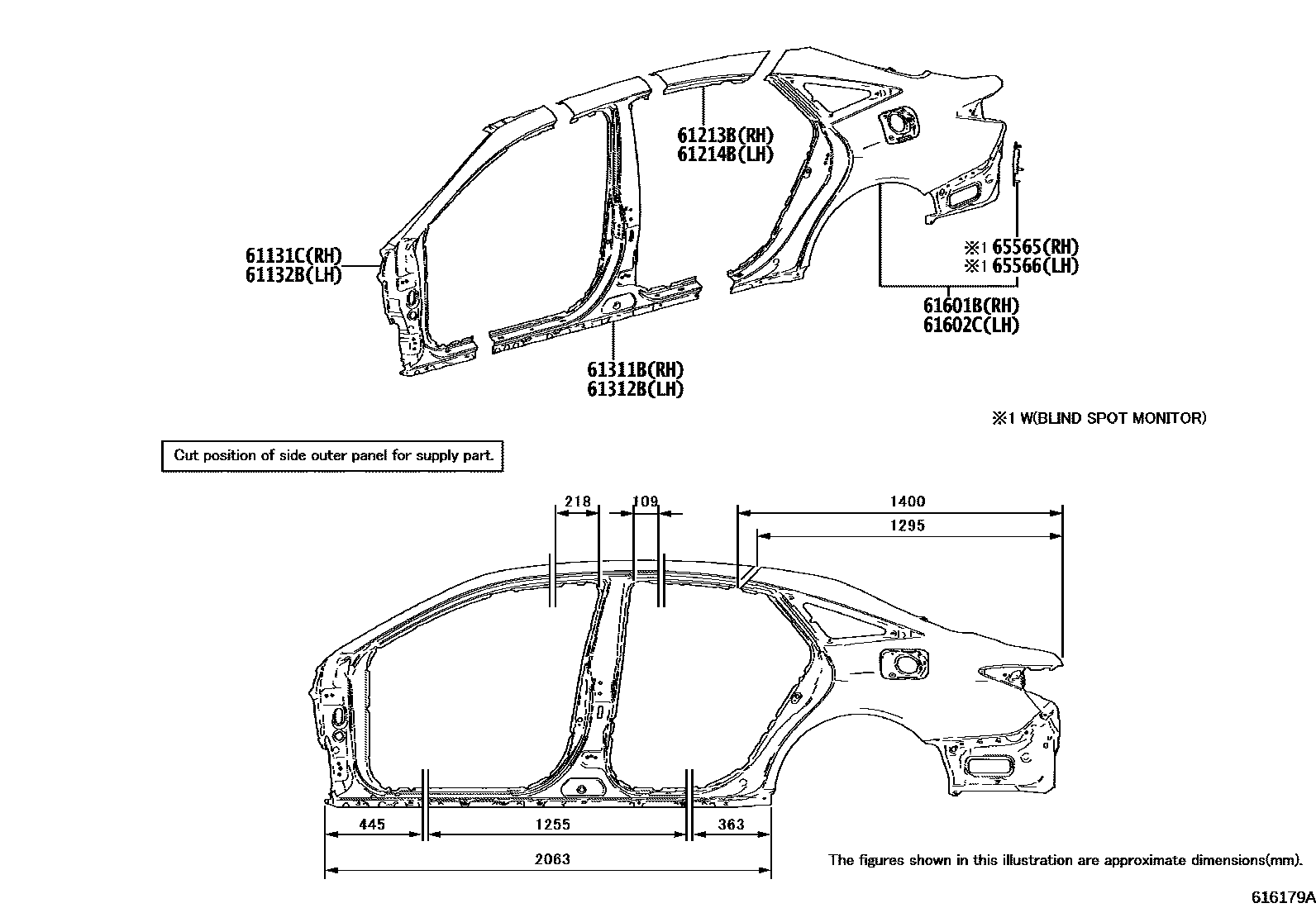

Toyota AVALON (CHINA) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-07050iAXXH50201903-202407

61132BPILLAR, FRONT BODY, OUTER LH

main61132-07050iAXXA50,MXXA50201903-202407

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-07060iAXXA50,MXXA50201903-202407

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-07060iAXXH50..E201903-202407

61311BPILLAR, CENTER BODY, OUTER RH

main61311-07040iAXXH50201903-202407

sub61311-YK010

main61311-YK010iMXXA50..B,E;AXXH52,MXXH50202407

61312BPILLAR, CENTER BODY, OUTER LH

main61312-07040iAXXA50,MXXA50201903-202407

sub61312-YK010

main61312-YK010iMXXA50..B,E;AXXH52,MXXH50202407

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-07140iAXXA50,MXXA50..G201903-202303

main61601-07150iAXXH50..E201903-202407

main61601-YK010iAXXH52,MXXH50..G,Q202407

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-07120iAXXA50,MXXA50..G201903-202303

main61602-07130iAXXH50..B,E201903-202407

main61602-YK010iAXXH52,MXXH50..G,Q202407

65565PATCH, SIDE PANEL REAR END, RH

main65565-07020iAXXA50,MXXA50..G201903-202303

main65565-YK010iAXXH52,MXXH50..G,Q202407

65566PATCH, SIDE PANEL REAR END, LH

main65565-07020iAXXA50,MXXA50..G201903-202303

main65565-YK010iAXXH52,MXXH50..G,Q202407

10 parts on this diagram · 3 diagrams in section
