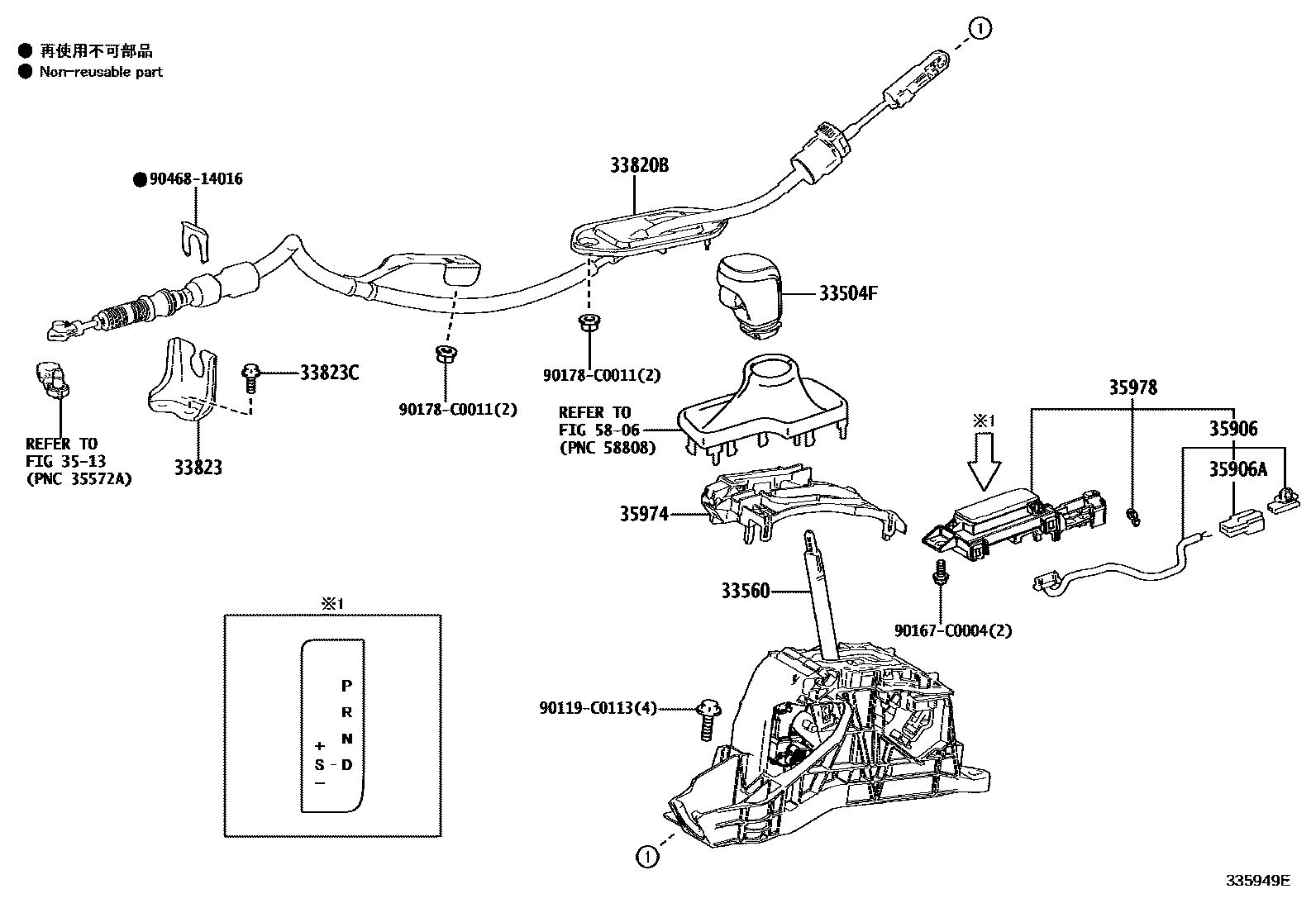

Toyota AVALON (CHINA) — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#,4#
B GRADE PACKAGE(WITH BACK MONITOR),BLACK,TRIM2#,4#
BLACK,TRIM1#,2#,4#
ENTRY PLUS PACKAGE,BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,4#
BLACK,TRIM2#
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
3513
35906WIRE SUB-ASSY, INDICATOR LAMP
35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
35974HOUSING, POSITION INDICATOR, LOWER
35978INDICATOR, SHIFT POSITION
5806
90119C0113
main90119-C0113
90167C0004
main90167-C0004
90178C0011
main90178-C0011
9046814016
15 parts on this diagram · 4 diagrams in section
